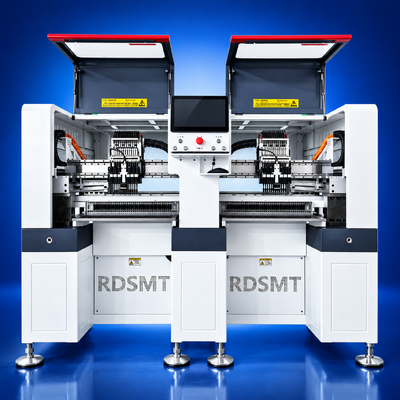

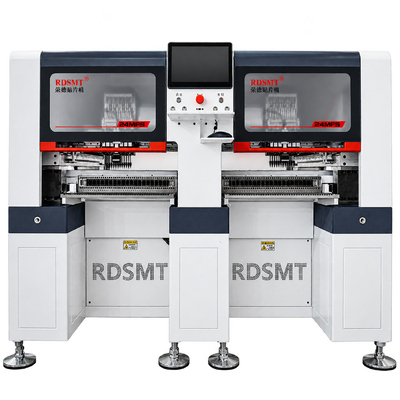

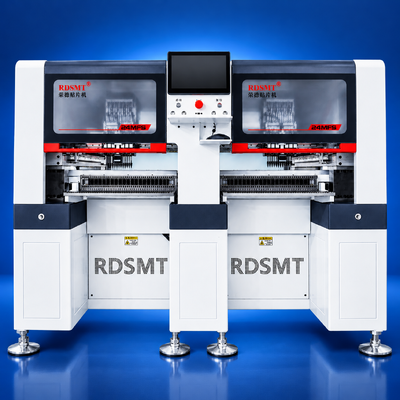

24 Head Linear Magnetic Levitation Motor SMT Pick and Place Machine with Automatic Nozzle Exchange for LED Driver PCB Assembly

Brand Name:	RDSMT
Model Number:	24MFS
MOQ:	1 pcs
Price:	48100 USD
Packaging Details:	Wodden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Model:

RD-24MFS High-Speed SMT Pick And Place Machine

Maximum Placement Speed:

Up To 110,000 CPH Under Optimum Configuration Conditions

Mounting Head Configuration:

24 Independent Mounting Heads, Dual Module Design (12+12)

Motion Control System:

Linear Magnetic Levitation Motor Module With Closed-Loop Servo Control

PCB Working Size:

Standard: 800 × 400 Mm; Maximum: 1600 × 400 Mm With Segmented Mounting

Vision Positioning System:

Industrial CCD Cameras, Visual Calibration And Automatic PCB MARK Point Recognition

Feeder Compatibility:

Ape-and-Reel Feeders And Vibration Bowl Feeders; Up To 80 Tape Feeder Stations

Automatic Nozzle Exchange:

72 Nozzle Exchange Stations (36+36) For Flexible Component Handling

Supply Ability:

1000 pcs per month

Highlight:

24 Head SMT Pick and Place Machine

Linear Magnetic Levitation Motor SMT Placement Machine

Automatic Nozzle Exchange PCB Component Placement Machine

Product Description

24 Head Linear Magnetic Levitation Motor SMT Pick and Place Machine with Automatic Nozzle Exchange for LED Driver PCB Assembly

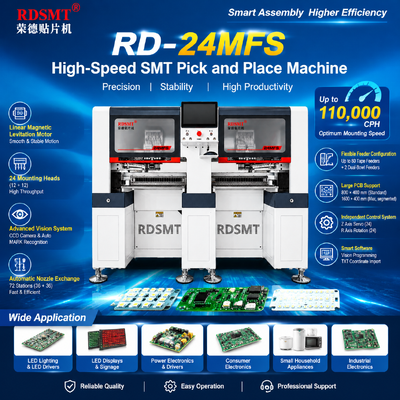

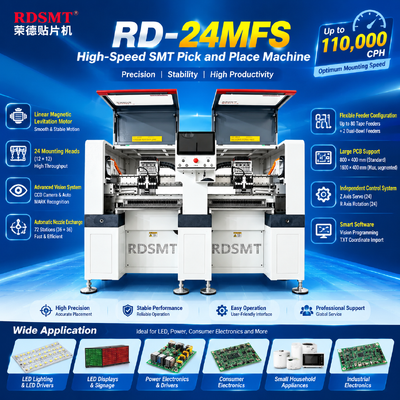

RD-24MFS High-Speed SMT Pick-and-Place Machine

The RD-24MFS is a high-speed Surface Mount Technology (SMT) pick-and-place machine designed for automated PCB assembly. According to the supplied specifications, it features a linear magnetic levitation motor module, 24 mounting heads, independent visual calibration, automatic nozzle exchange, and support for multiple feeder types.

Its stated optimum mounting speed is 110,000 CPH (components per hour) under optimum configuration conditions. The machine is intended for LED lighting, LED displays, power drivers, consumer electronics, and small-appliance control board manufacturing.

Specification

Model No.	RD-24MFS
XY Motion System	Linear magnetic levitation motor module
Maximum size of mounting PCB	800 × 400 mm (standard); maximum 1600 × 400 mm
Machine weight	Approximately 2200 KG
External dimensions	2100 mm (L) × 1600 mm (W) × 1500 mm (H)
Optimum speed	110,000 CPH (Optimum setting condition)
PCB transfer method	Five-section track automatic transmission
Z-axis up/down control	Z axis has 24 set closed-loop control servo motors
R-axis rotation control	R axis has 24 sets independently control motor, resulting in higher mounting eﬃciency
Nozzle exchange station	Supports simultaneous placement of different-size components in one machine
Number of mount heads	24 heads (12 + 12)
Number of Nozzle auto-exchange warehouse	72 stations (36 + 36)
Applicable feeder types	Tape feeder; vibration bowl feeder
Maximum tape and reel feeder stations	80 stations (40 + 40)
Maximum bowl feeder quantity	2 PCS 4chanels dual-bowl feeder
Maximum mountable component height	≤ 22 mm
Mountable components	LED lamp beads (0402 or larger), resistors, capacitors, ICs, terminals, electrolytic capacitors, inductors, diodes, QFP, etc.
Suction error-correction system	24 set independent industrial cameras using aerial-photography technology
Nozzle visual calibration	Each nozzle has an independent megapixel CCD camera with a Gigabit network interface for visual calibration
Visual positioning system	1.3-megapixel CCD industrial high-speed camera with a Gigabit network port
PCB positioning method	Automatic visual MARK-point positioning
Vacuum system	24 sets Integrated Vacuum module
Input air pressure	≥ 0.5 MPa
Input voltage	AC 220 V / 50 Hz
Running power	3.5 KW/h
Operation software	Independently developed operating software
Programming method	Visual-camera positioning programming; coordinates can be imported via TXT file
Applications	Suitable For:All LED Lightings, Power Drivers, LED Displays, Consumer Electronics Control PCB, small appliance control PCB, etc.

Main advantages and selling points

1. High-speed component placement

The specified optimum placement speed of 110,000 CPH makes the machine a candidate for high-volume SMT production, subject to component mix and operating conditions.

2. 24-head mounting configuration

The 24-head configuration (12 + 12) is designed to support simultaneous, high-throughput component placement operations.

3. Vision-assisted positioning

Independent nozzle cameras, industrial CCD imaging, and automatic PCB MARK-point recognition support visual calibration and positioning.

4. Flexible feeder configuration

Supports up to 80 tape-and-reel feeder stations and two specified 4-channel dual-bowl feeders, providing options for different component supply formats.

5. Automatic nozzle exchange

The 72-station nozzle exchange warehouse supports nozzle management and changeover for different placement requirements.

6. Large-panel PCB support

Standard PCB size is 800 × 400 mm, with a stated maximum of 1600 × 400 mm using segmented mounting.

7. Multiple component and product applications

Designed for LED lamp beads, resistors, capacitors, ICs, terminals, inductors, diodes, QFP packages, and other compatible components within the specified size and process limits.

4. Applications and target industries

LED lighting and LED driver boards

Assembly of LED lighting PCBs, LED lamp driver boards, lighting control circuits, and compatible LED modules.

LED displays and signage

Placement of compatible components on LED display control boards, display modules, and related electronic assemblies.

Power electronics

Suitable for compatible power supply boards, power driver circuits, and electronic power-control assemblies.

Consumer electronics

Assembly of electronic control boards and compatible PCB assemblies used in consumer electronic products.

Small household appliances

Placement of components on appliance controller boards and other compatible electronic control PCBs.

Industrial electronics

Potential use in compatible automation control boards, instrumentation electronics, and industrial power-control PCBs.
