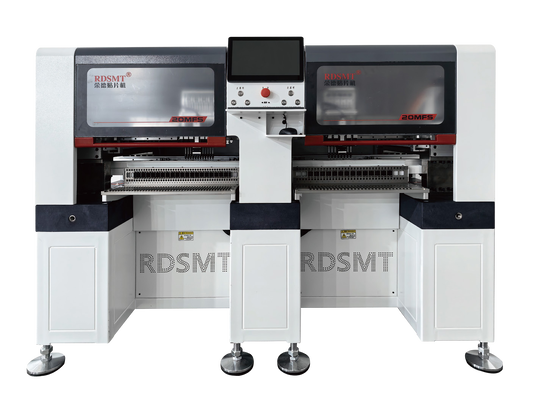

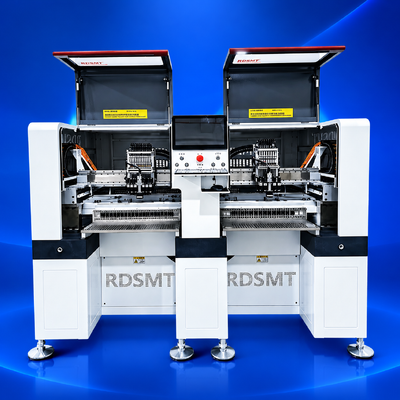

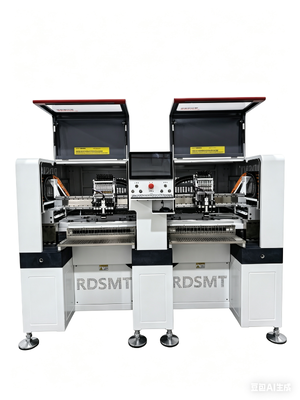

20 Heads Dual Module High Speed Pick and Place Machine SMT Placement Machine for LED DOB PCB Assembly

Brand Name: RDSMT
Model Number: 20MFS
MOQ: 1 pcs
Price: 44800 USD
Packaging Details: Wodden box
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Product Type:
Automatic SMT Pick And Place Machine For PCB Assembly
Placement Speed:
85,000 CPH Optimum Speed; 65,000 CPH Actual Speed
Mounting Head Configuration:
20 Heads (12 + 8) Dual Module SMT Placement System
LED Component Placement:
12 Heads For LED Chips, Resistors, ICs And Compatible SMD Components
DOB Component Placement:
8 Heads Designed For Compatible DOB (Driver On Board) Components
Motion Control System:
Linear Magnetic Levitation XY Motion System With Closed-Loop Z-Axis Servo Control
Feeder And Nozzle System:
Up To 64 Tape Feeder Stations, Vibration Bowl Feeder Support And 60-Station Automatic Nozzle Exchange
Applications:
LED Lighting, DOB LED PCB, LED Driver PCB, LED Display PCB, Consumer Electronics And Small Appliance Control PCB
Supply Ability:
1000 pcs per month
Highlight:

20 Heads Pick and Place Machine

,

Dual Module SMT Placement Machine

,

High Speed SMT Mounter

Product Description
RDSMT 20 Heads Dual Module SMT Pick and Place Machine – High Speed, Cost-Effective LED & DOB PCB Assembly Solution
20 Heads Dual Module High Speed Pick and Place Machine SMT Placement Machine for LED DOB PCB Assembly
Product Overview

The RDSMT 20 Heads Dual Module SMT Pick and Place Machine is an economical, high-speed solution designed for LED lighting manufacturers and electronic PCB assembly factories. Featuring an innovative 20-head configuration (12 + 8), this machine is designed to improve production efficiency by allocating different mounting heads to different component groups within the same production process.


The 12-head module is intended for mounting LED chips, resistors, ICs, and other compatible SMD components, while the 8-head module is dedicated to mounting compatible DOB (Driver on Board) components. This specialized configuration helps streamline component placement, reduce repetitive operations, and support efficient LED PCB manufacturing.

By combining a high-speed placement architecture with a practical dual-module configuration, RDSMT offers a cost-effective option for manufacturers seeking to increase output without investing in a more expensive or complex production setup.

Parameter Specification
XY Motion System Linear magnetic levitation motor module
Maximum PCB Size (Normal) 800 mm × 400 mm
Maximum PCB Size (Maximum) 1600 mm × 400 mm
Machine Weight Approximately 2200 kg
External Dimensions (L × W × H) 2100 mm × 1600 mm × 1500 mm
Optimum Placement Speed 85,000 CPH (under optimum setting conditions)
Actual Placement Speed 65,000 CPH
PCB Transfer Method Five-section automatic track transmission
Z-Axis Up/Down Control 20 closed-loop control servo motors
R-Axis Rotation Control 20 independently controlled motors
Number of Mount Heads 20 heads (12 + 8)
Automatic Nozzle Exchange Warehouse 60 stations
Applicable Feeder Types Tape feeder; vibration bowl feeder
Maximum Tape-and-Reel Feeder Stations 64 stations
Maximum Bowl Feeder Configuration 2 pcs, 4-channel dual-bowl feeder
Maximum Component Mounting Height ≤ 22 mm
Applicable Components Lamp beads (0402 or larger), resistors, capacitors, ICs, terminals, electrolytic capacitors, inductors, diodes, QFP, etc.
Key Advantages
1. High-Speed Production Performance

With an optimum placement speed of up to 85,000 CPH and an actual placement speed of approximately 65,000 CPH, the machine is designed to support high-volume production. Actual output depends on component mix, PCB layout, machine programming, and operating conditions.

2. Dedicated 12 + 8 Mounting-Head Configuration

  • 12-head module: Designed for LED chips, resistors, ICs, and other compatible SMD components.

  • 8-head module: Designed for compatible DOB components.

This task-oriented configuration helps organize component placement operations for LED lighting PCB production.

3. Cost-Effective Manufacturing Solution

The specialized 20-head configuration offers a practical balance between placement performance and equipment investment. By combining different component-placement tasks within one machine, manufacturers can potentially reduce the need for separate placement equipment, simplify production planning, and improve equipment utilization.

4. Optimized for LED and DOB PCB Production

Designed for LED lighting applications, the machine supports production workflows involving LED chips, resistors, ICs, and compatible DOB components. It is particularly relevant to manufacturers producing LED bulbs, LED driver boards, and other LED lighting assemblies.

5. Advanced Linear Magnetic Levitation Motion System

The linear magnetic levitation XY motion system is designed to provide fast, smooth movement during component placement, supporting efficient operation in demanding SMT production environments.

6. Flexible Component Feeding

With support for tape feeders and vibration bowl feeders, the machine accommodates different compatible component feeding requirements. The specified configuration includes up to 64 tape-feeder stations and a 60-station automatic nozzle exchange warehouse.

Main Applications

  • LED bulb and LED lamp PCB assembly

  • DOB (Driver on Board) LED lighting production

  • LED driver PCB manufacturing

  • LED lighting control boards

  • LED display control boards

  • Consumer electronics PCB assembly

  • Small appliance control PCB production

Why Choose RDSMT?

The RDSMT 20 Heads Dual Module SMT Pick and Place Machine is designed for manufacturers who prioritize production speed, practical equipment investment, and efficient LED PCB assembly.

Its 12 + 8 head configuration provides a targeted solution for handling LED chips and associated electronic components alongside compatible DOB components. Combined with its high-speed placement architecture and flexible feeder options, it offers a promising solution for improving manufacturing productivity and controlling equipment costs.

Contact RDSMT for machine specifications, configuration recommendations, production demonstrations, and a quotation tailored to your LED PCB manufacturing requirements.


Contact

For more detail information and good price, please contact us,

Alina
Mobile: +86 16620793861
Email: alina@hxt-smt.com
www.smtpcbmachines.com
