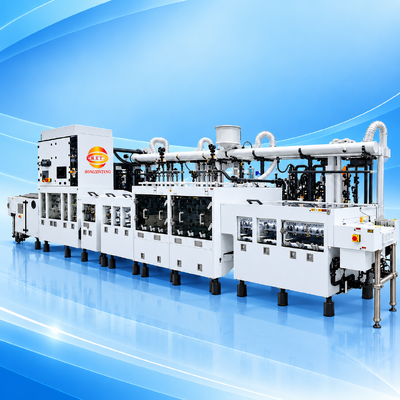

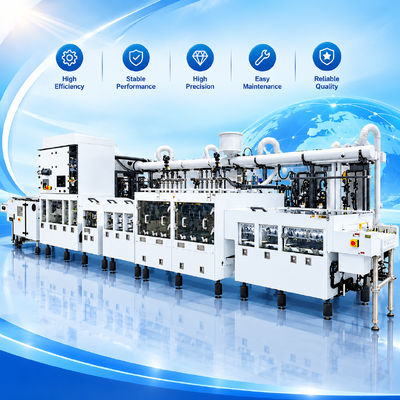

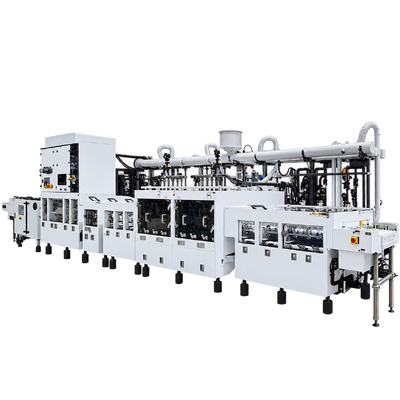

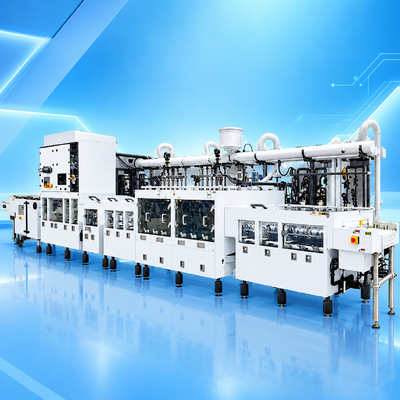

Automatic PCB Photoresist Developing Machine with Double-Side Spray Development and PLC Automatic Control for Chemical-Resistant Transport
  • name
  • name
  • name
  • name
  • name

Automatic PCB Photoresist Developing Machine with Double-Side Spray Development and PLC Automatic Control for Chemical-Resistant Transport

Brand Name: HXT
Model Number: D600
MOQ: 1 pcs
Price: 20000 - 40000 USD
Packaging Details: Wodden box
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Automatic PCB Photoresist Developing Machine
Machine Type:
Horizontal Automatic Spray Developing Line
Application:
Bare PCB Manufacturing And Fabrication
Processing Material:
Exposed PCB Panels With Compatible Photoresist
Developing Method:
Chemical Spray Developing
Control System:
PLC Automatic Control With HMI (configuration Dependent)
Conveying System:
Automatic Roller Or Other Compatible Conveyor
Customization:
PCB Size, Board Thickness, Line Speed, Heating And Chemical System Configurable
Supply Ability:
1000 pcs per month
Highlight:

Double-Side Spray Development PCB Developing Line

,

PLC Automatic Control PCB Photoresist Processing Machine

,

Chemical-Resistant Transport System Automatic PCB Photoresist Developing Machine

Product Description
Automatic PCB Photoresist Developing Cleaning Drying Machine
Automatic PCB Photoresist Developing Machine

An Automatic PCB Photoresist Developing Machine, also called an Automatic PCB Developing Line or PCB Photoresist Developing Equipment, is a type of industrial equipment used in bare printed circuit board (PCB) manufacturing.

It removes the unexposed or soluble photoresist from a PCB after photolithographic exposure, revealing the required circuit pattern for subsequent PCB fabrication processes.

During PCB production, the board is coated with photoresist and exposed through a circuit pattern. The developing machine sprays a suitable developer solution onto the exposed board under controlled conditions, removing the unwanted resist and leaving the desired pattern for subsequent processing.

Depending on the PCB process and resist chemistry, the developing line is commonly used in inner-layer and outer-layer circuit fabrication, including suitable dry-film and liquid photoresist processes.

Technical Specifications
Specification Recommended / Typical Value
Machine Name Automatic PCB Photoresist Developing Machine
Alternative Name PCB Photoresist Developing Cleaning Drying Line
Application Bare PCB Manufacturing / PCB Fabrication
Process Developing → Rinsing/Washing → Squeezing → Drying
Development Method Double-Side Spray Development with Oscillation
Compatible Resist Dry Film Photoresist / Liquid Photoresist / Photosensitive Ink
Developer Solution Sodium Carbonate (Na₂CO₃)
Working Width 650 mm
Maximum PCB Size Approx. 650 × 650 mm
Minimum PCB Size Approx. 120 × 80 mm
PCB Thickness Approx. 0.2-3.2 mm
Working Height Approx. 850 ± 50 mm
Conveyor Speed Approx. 0.5-6 m/min, adjustable
Developing Temperature RT-65°C, configuration dependent
Spray System Upper & lower spray nozzles
Rinsing System Multi-stage water rinsing
Drying System Hot-air / cold-air or air-knife drying
Temperature Control Automatic temperature adjustment
Pressure Control Adjustable spray pressure
Conveyor Chemical-resistant PCB transport system
Control System PLC + HMI / touchscreen
Filtration Chemical circulation / filtration system
Heater Material Titanium or corrosion-resistant heater
Main Construction PP/PVDF chemical-resistant components
Power Supply 380 V, 3-phase, 50 Hz
Installed Power Approx. 20-28 kW for a full developing/cleaning/drying configuration
Overall Dimensions Approx. 8,000 × 1,700 × 1,850 mm for a comparable full line
Production Type Continuous automatic processing
Automation Fully automatic
PCB Type Single-sided / Double-sided / Multilayer / HDI
Key Features and Advantages
  • Uniform Chemical Spray: Controlled spray system distributes developer solution across the board surface for consistent photoresist removal and circuit pattern development.
  • Automatic Conveyor Operation: Continuous board transport reduces manual handling and supports integration into automated PCB manufacturing lines.
  • Adjustable Process Parameters: Developing time, temperature, spray pressure, and chemical conditions can be configured to match the selected photoresist and PCB process.
  • Consistent Circuit Pattern Definition: Properly controlled development helps reveal the intended circuit pattern and supports downstream etching or other fabrication steps.
  • Chemical Circulation System: Optional circulation and filtration arrangements help maintain stable processing conditions and manage developer solution.
  • Flexible Production-Line Integration: Can be configured with compatible rinsing, drying, etching, stripping, and other PCB wet-process equipment as required by the production flow.

Additional benefits include reduced manual labor, repeatable processing, improved production efficiency, and more consistent manufacturing quality when the equipment is correctly matched to the process.

Applications
  • Double-Sided PCB Manufacturing: Photoresist development for circuit pattern formation on compatible copper-clad PCB panels.
  • Multilayer PCB Fabrication: Inner-layer and outer-layer development processes, depending on the production workflow.
  • HDI and Fine-Line PCB Production: Development of suitable fine-line circuit patterns with process parameters matched to the photoresist and design requirements.
  • PCB Photolithography Production: Processing exposed dry-film or compatible liquid photoresist during PCB circuit fabrication.
  • Automated PCB Manufacturing Lines: Integration into PCB fabrication facilities producing industrial, automotive, telecommunications, computing, and consumer-electronics circuit boards.
Automatic PCB Spray Developing Machine for Dry Film Photoresist • Automatic PCB Photoresist Developing Line with Rinse and Drying System • Automatic PCB Wet Process Developing Machine for PCB Fabrication • Automatic Dry Film Developing Machine for PCB Manufacturing Line • Automatic Photoresist Developing Machine for PCB Circuit Pattern Processing • PCB Developing Cleaning Drying Machine for Automatic PCB Production Line • Double Side Spray Developing Machine for PCB Photoresist Processing • PCB Developing Machine for Develop Etch Strip Production Line • Automatic PCB Developer Machine for Bare Board PCB Production • Automatic PCB Photoresist Developing Machine for Bare PCB Manufacturing • Horizontal PCB Developing Line for Printed Circuit Board Fabrication • Automatic Chemical Spray Developing Equipment for PCB Production • Bare PCB Photoresist Processing Machine for Multilayer PCB Manufacturing • Industrial PCB Wet Process Developing Line for HDI Circuit Board Production

Tags:

pcb screen printer

automated optical inspection machine

Automatic pcb drilling machine

Good price online

Products Details

Home > Products >
PCB Machine
>
Automatic PCB Photoresist Developing Machine with Double-Side Spray Development and PLC Automatic Control for Chemical-Resistant Transport
All Category

Pick And Place Machine

Reflow Oven

SMT AOI Machine

SMT Solder Paste Printing Machine

SMT SPI Machine

SMT Machine Line

Automatic Insertion Machine

Wave Soldering Machine

SMT Loader Unloader Machine

SMT Conveyor

Glue Dispensing Machine

Conformal Coating Machine

Curing Oven Machine

PCB Cutting Machine

Electronics Production Machinery

PCB Machine
Automatic PCB Photoresist Developing Machine with Double-Side Spray Development and PLC Automatic Control for Chemical-Resistant Transport
  • name
  • name
  • name
  • name
  • name

Automatic PCB Photoresist Developing Machine with Double-Side Spray Development and PLC Automatic Control for Chemical-Resistant Transport

Brand Name: HXT
Model Number: D600
MOQ: 1 pcs
Price: 20000 - 40000 USD
Packaging Details: Wodden box
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
HXT
Certification:
CE
Model Number:
D600
Product Name:
Automatic PCB Photoresist Developing Machine
Machine Type:
Horizontal Automatic Spray Developing Line
Application:
Bare PCB Manufacturing And Fabrication
Processing Material:
Exposed PCB Panels With Compatible Photoresist
Developing Method:
Chemical Spray Developing
Control System:
PLC Automatic Control With HMI (configuration Dependent)
Conveying System:
Automatic Roller Or Other Compatible Conveyor
Customization:
PCB Size, Board Thickness, Line Speed, Heating And Chemical System Configurable
Minimum Order Quantity:
1 pcs
Price:
20000 - 40000 USD
Packaging Details:
Wodden box
Delivery Time:
15 working days
Payment Terms:
T/T
Supply Ability:
1000 pcs per month
Highlight:

Double-Side Spray Development PCB Developing Line

,

PLC Automatic Control PCB Photoresist Processing Machine

,

Chemical-Resistant Transport System Automatic PCB Photoresist Developing Machine

Product Description
Automatic PCB Photoresist Developing Cleaning Drying Machine
Automatic PCB Photoresist Developing Machine

An Automatic PCB Photoresist Developing Machine, also called an Automatic PCB Developing Line or PCB Photoresist Developing Equipment, is a type of industrial equipment used in bare printed circuit board (PCB) manufacturing.

It removes the unexposed or soluble photoresist from a PCB after photolithographic exposure, revealing the required circuit pattern for subsequent PCB fabrication processes.

During PCB production, the board is coated with photoresist and exposed through a circuit pattern. The developing machine sprays a suitable developer solution onto the exposed board under controlled conditions, removing the unwanted resist and leaving the desired pattern for subsequent processing.

Depending on the PCB process and resist chemistry, the developing line is commonly used in inner-layer and outer-layer circuit fabrication, including suitable dry-film and liquid photoresist processes.

Technical Specifications
Specification Recommended / Typical Value
Machine Name Automatic PCB Photoresist Developing Machine
Alternative Name PCB Photoresist Developing Cleaning Drying Line
Application Bare PCB Manufacturing / PCB Fabrication
Process Developing → Rinsing/Washing → Squeezing → Drying
Development Method Double-Side Spray Development with Oscillation
Compatible Resist Dry Film Photoresist / Liquid Photoresist / Photosensitive Ink
Developer Solution Sodium Carbonate (Na₂CO₃)
Working Width 650 mm
Maximum PCB Size Approx. 650 × 650 mm
Minimum PCB Size Approx. 120 × 80 mm
PCB Thickness Approx. 0.2-3.2 mm
Working Height Approx. 850 ± 50 mm
Conveyor Speed Approx. 0.5-6 m/min, adjustable
Developing Temperature RT-65°C, configuration dependent
Spray System Upper & lower spray nozzles
Rinsing System Multi-stage water rinsing
Drying System Hot-air / cold-air or air-knife drying
Temperature Control Automatic temperature adjustment
Pressure Control Adjustable spray pressure
Conveyor Chemical-resistant PCB transport system
Control System PLC + HMI / touchscreen
Filtration Chemical circulation / filtration system
Heater Material Titanium or corrosion-resistant heater
Main Construction PP/PVDF chemical-resistant components
Power Supply 380 V, 3-phase, 50 Hz
Installed Power Approx. 20-28 kW for a full developing/cleaning/drying configuration
Overall Dimensions Approx. 8,000 × 1,700 × 1,850 mm for a comparable full line
Production Type Continuous automatic processing
Automation Fully automatic
PCB Type Single-sided / Double-sided / Multilayer / HDI
Key Features and Advantages
  • Uniform Chemical Spray: Controlled spray system distributes developer solution across the board surface for consistent photoresist removal and circuit pattern development.
  • Automatic Conveyor Operation: Continuous board transport reduces manual handling and supports integration into automated PCB manufacturing lines.
  • Adjustable Process Parameters: Developing time, temperature, spray pressure, and chemical conditions can be configured to match the selected photoresist and PCB process.
  • Consistent Circuit Pattern Definition: Properly controlled development helps reveal the intended circuit pattern and supports downstream etching or other fabrication steps.
  • Chemical Circulation System: Optional circulation and filtration arrangements help maintain stable processing conditions and manage developer solution.
  • Flexible Production-Line Integration: Can be configured with compatible rinsing, drying, etching, stripping, and other PCB wet-process equipment as required by the production flow.

Additional benefits include reduced manual labor, repeatable processing, improved production efficiency, and more consistent manufacturing quality when the equipment is correctly matched to the process.

Applications
  • Double-Sided PCB Manufacturing: Photoresist development for circuit pattern formation on compatible copper-clad PCB panels.
  • Multilayer PCB Fabrication: Inner-layer and outer-layer development processes, depending on the production workflow.
  • HDI and Fine-Line PCB Production: Development of suitable fine-line circuit patterns with process parameters matched to the photoresist and design requirements.
  • PCB Photolithography Production: Processing exposed dry-film or compatible liquid photoresist during PCB circuit fabrication.
  • Automated PCB Manufacturing Lines: Integration into PCB fabrication facilities producing industrial, automotive, telecommunications, computing, and consumer-electronics circuit boards.
