Orbotech Discovery II 9000 PCB AOI System with 30 µm Line/Space Inspection for HDI and Multilayer PCBs

Brand Name:	Orbotech
Model Number:	Discovery II 9000
MOQ:	1 pcs
Price:	80000–200000 USD
Packaging Details:	Wodden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Orbotech Discovery™ II 9000 PCB Automated Optical Inspection (AOI) System

Inspection Technology:

SIP™ Technology / Full Reference Comparison / Model-Based Inspection

Minimum Line/Space:

Down To 1.2 Mil (30 µm)

Maximum Panel Size:

24 × 30 In (610 × 762 Mm) Standard; Optional Large Table Up To 36.5 × 30 In (927 × 762 Mm)

Panel Thickness Range:

1–300 Mil (25–7,500 µm)

Inspection Speed:

Up To 220 Sides/hour, Depending On Line Width And Panel Conditions

Defects Detected:

Shorts, Opens, Line/space Violations, Pinholes, Copper Splashes, Missing/excess Features, Clearance Violations, Blocked Holes, Annular-ring Defects, SMT Defects

Applications:

HDI, Multilayer PCB (MLB), Flexible PCB, QTA And High-volume PCB Manufacturing

Supply Ability:

1000 pcs per month

Highlight:

30 µm line/space inspection PCB AOI System

HDI PCB inspection Automated Optical Inspection Machine

Multilayer PCB inspection PCB Inspection Equipment

Product Description

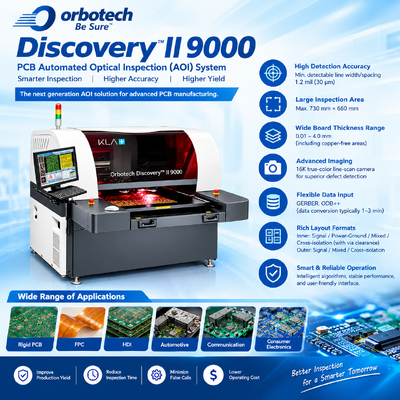

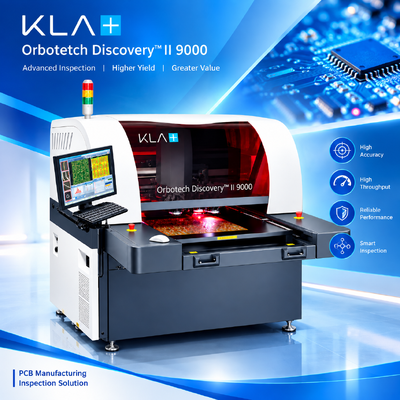

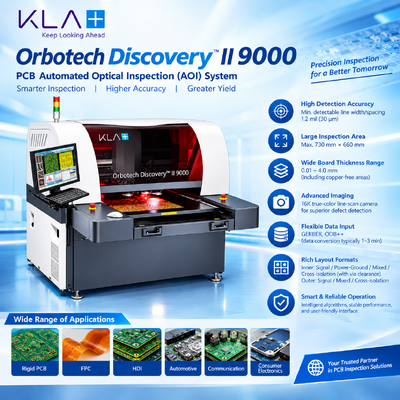

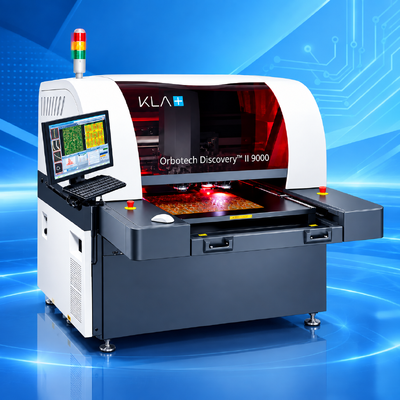

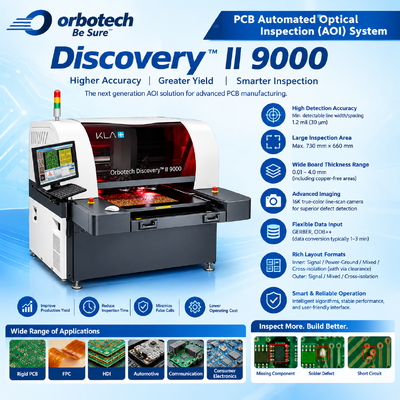

Orbotech Discovery II 9000 PCB AOI System with 30 µm Line/Space Inspection for HDI and Multilayer PCBs

Orbotech Discovery™ II 9000 PCB Automated Optical Inspection (AOI) System

The Orbotech Discovery™ II 9000 is an Automated Optical Inspection (AOI) system designed for PCB manufacturing and inspection applications. It is suitable for inspecting inner layers, outer layers and build-up layers used in conventional, multilayer, HDI and advanced PCB manufacturing.

The system combines optical inspection, reference comparison and model-based inspection technologies to identify PCB pattern and manufacturing defects.

Specification	Discovery™ II 9000
Manufacturer / Brand	Orbotech / KLA
Model	Discovery™ II 9000
Machine Type	Automated Optical Inspection (AOI) System
Main Application	PCB manufacturing / bare-board inspection
Inspection Technology	SIP™ technology
Minimum Line/Space	1.2 mil / 30 µm
Standard Maximum Panel Size / Inspected Area	24 × 30 in / 610 × 762 mm
Large Table Option	Up to 36 × 30 in / 914 × 762 mm
PCB Thickness Range	1–300 mil / 25–7,500 µm
Registration	Pinless registration with panel-edge alignment
Setup Data	CAM
Inspection Method	Full reference comparison
Model-Based Inspection	Yes
Contour Comparison	Yes
Multi-Layer Panel Understanding	Yes, SIP-based
Standard Dimensions (W × D × H)	161 × 178 × 186 cm
Weight	Approximately 900 kg
Large Table Dimensions	161 × 220 × 186 cm
Large Table Weight	Approximately 920 kg
Automation	Automation-ready option available
Defect Verification	Supports Orbotech verification/repair stations
Setup / Registration	CAM + pinless panel-edge alignment
Laser Classification	Class 1 laser product

Key Features

PCB Automated Optical Inspection (AOI)
Inspection technology down to 30 µm (1.2 mil) line/space
Inner-layer inspection
Outer-layer inspection
Build-up-layer inspection
HDI PCB inspection
Laser-via inspection applications
Multilayer PCB inspection
Full reference comparison
Model-based and contour comparison
Multi-layer panel understanding
CAM-based setup data
Pinless panel registration with panel-edge alignment
Optional automation-ready configuration
Optional stamper/marker configuration

PCB Defects Detection

The Discovery II 9000 can be used to detect various PCB manufacturing defects, including:

Open circuits
Short circuits
Minimum line/space violations
Nicks
Protrusions
Dishdowns
Copper splashes
Pinholes
Missing features
Excess features
Incorrect feature size
Incorrect feature position
Clearance violations
Split-plane violations
Blocked holes
Annular-ring violations
SMT-related PCB violations

PCB Applications

The system is suitable for inspection of:

Inner signal layers
Power and ground layers
Mixed layers
Cross-shielding layers
Inner layers with holes
Outer signal layers
Outer mixed layers
Build-up layers
Laser-via structures
HDI PCB
Multilayer PCB
Advanced PCB structures

Suitable Industries

PCB Manufacturing
HDI PCB Manufacturing
Multilayer PCB Manufacturing
High-Density Interconnect PCB Production
Advanced Electronics Manufacturing
Automotive Electronics
Consumer Electronics
Communication Electronics
Industrial Electronics
Medical Electronics
Computer and Server Electronics
Electronic Components Manufacturing

Orbotech Discovery II 9000 Automated Optical Inspection AOI System PCB Inspection Machine

Orbotech Discovery 9000 AOI Machine PCB Inspection System for Manufacturing

Discovery II 9000 AOI Equipment Orbotech PCB Inspection Equipment

Orbotech AOI Inspection System Automatic Optical Inspection Machine for PCB

Orbotech PCB AOI Optical Inspection Machine for Bare Board Manufacturing

KLA Orbotech Discovery II 9000 PCB Automated Optical Inspection System

Orbotech Discovery II 9000 AOI PCB Defect Inspection Equipment

Automatic Optical Inspection System PCB Optical Inspection for Bare PCB Inspection

PCB Automatic Inspection Machine PCB Quality Inspection for PCB Manufacturing

Bare Board Inspection System PCB Fabrication Inspection Equipment

PCB Production Inspection System PCB Defect Detection Quality Control Equipment

HDI PCB Inspection Machine HDI AOI System for High Density PCB Manufacturing

HDI Inspection Machine HDI PCB AOI System for Advanced PCB Production

High-Density Interconnect Inspection Multilayer PCB Inspection Equipment

Multilayer PCB AOI Build-up PCB Inspection System for HDI Manufacturing

Build-up Layer Inspection Laser Via Inspection System for HDI PCB

PCB Inner Layer Inspection PCB Outer Layer Inspection Optical System

PCB Open Circuit Inspection PCB Short Circuit Inspection AOI Equipment

PCB Line Inspection PCB Line Width Inspection Machine for PCB Manufacturing

PCB Line Spacing Inspection PCB Copper Defect Inspection System

PCB Pinhole Inspection PCB Missing Feature Inspection AOI System

PCB Excess Copper Inspection PCB Annular Ring Inspection Equipment

PCB Clearance Inspection PCB Defect Detection Machine for Bare Boards

Used Orbotech Discovery II 9000 Used Orbotech AOI PCB Inspection Machine

Used Discovery II 9000 AOI Refurbished Orbotech Discovery II 9000 System

Refurbished Orbotech AOI Second Hand Orbotech AOI PCB Inspection Equipment

Pre-owned Orbotech Discovery II 9000 Used PCB AOI Machine

Used PCB Inspection Equipment Used PCB Inspection System Orbotech

Orbotech AOI for Sale Discovery II 9000 for Sale PCB Inspection

Tags:

pcb screen printer

automated optical inspection machine

Automatic pcb drilling machine

Products Details

Home > Products >

PCB Machine

Orbotech Discovery II 9000 PCB AOI System with 30 µm Line/Space Inspection for HDI and Multilayer PCBs

All Category

Pick And Place Machine

Reflow Oven

SMT AOI Machine

SMT Solder Paste Printing Machine

SMT SPI Machine

SMT Machine Line

Automatic Insertion Machine

Wave Soldering Machine

SMT Loader Unloader Machine

SMT Conveyor

Glue Dispensing Machine

Conformal Coating Machine

Curing Oven Machine

PCB Cutting Machine

Electronics Production Machinery

PCB Machine

Orbotech Discovery II 9000 PCB AOI System with 30 µm Line/Space Inspection for HDI and Multilayer PCBs

Brand Name:	Orbotech
Model Number:	Discovery II 9000
MOQ:	1 pcs
Price:	80000–200000 USD
Packaging Details:	Wodden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

Orbotech

Certification:

Model Number:

Discovery II 9000

Product Name:

Orbotech Discovery™ II 9000 PCB Automated Optical Inspection (AOI) System

Inspection Technology:

SIP™ Technology / Full Reference Comparison / Model-Based Inspection

Minimum Line/Space:

Down To 1.2 Mil (30 µm)

Maximum Panel Size:

24 × 30 In (610 × 762 Mm) Standard; Optional Large Table Up To 36.5 × 30 In (927 × 762 Mm)

Panel Thickness Range:

1–300 Mil (25–7,500 µm)

Inspection Speed:

Up To 220 Sides/hour, Depending On Line Width And Panel Conditions

Defects Detected:

Shorts, Opens, Line/space Violations, Pinholes, Copper Splashes, Missing/excess Features, Clearance Violations, Blocked Holes, Annular-ring Defects, SMT Defects

Applications:

HDI, Multilayer PCB (MLB), Flexible PCB, QTA And High-volume PCB Manufacturing

Minimum Order Quantity:

1 pcs

Price:

80000–200000 USD

Packaging Details:

Wodden box

Delivery Time:

15 working days

Payment Terms:

T/T

Supply Ability:

1000 pcs per month

Highlight:

30 µm line/space inspection PCB AOI System

HDI PCB inspection Automated Optical Inspection Machine

Multilayer PCB inspection PCB Inspection Equipment

Product Description

Orbotech Discovery II 9000 PCB AOI System with 30 µm Line/Space Inspection for HDI and Multilayer PCBs

Orbotech Discovery™ II 9000 PCB Automated Optical Inspection (AOI) System

The system combines optical inspection, reference comparison and model-based inspection technologies to identify PCB pattern and manufacturing defects.

Specification	Discovery™ II 9000
Manufacturer / Brand	Orbotech / KLA
Model	Discovery™ II 9000
Machine Type	Automated Optical Inspection (AOI) System
Main Application	PCB manufacturing / bare-board inspection
Inspection Technology	SIP™ technology
Minimum Line/Space	1.2 mil / 30 µm
Standard Maximum Panel Size / Inspected Area	24 × 30 in / 610 × 762 mm
Large Table Option	Up to 36 × 30 in / 914 × 762 mm
PCB Thickness Range	1–300 mil / 25–7,500 µm
Registration	Pinless registration with panel-edge alignment
Setup Data	CAM
Inspection Method	Full reference comparison
Model-Based Inspection	Yes
Contour Comparison	Yes
Multi-Layer Panel Understanding	Yes, SIP-based
Standard Dimensions (W × D × H)	161 × 178 × 186 cm
Weight	Approximately 900 kg
Large Table Dimensions	161 × 220 × 186 cm
Large Table Weight	Approximately 920 kg
Automation	Automation-ready option available
Defect Verification	Supports Orbotech verification/repair stations
Setup / Registration	CAM + pinless panel-edge alignment
Laser Classification	Class 1 laser product

Key Features

PCB Automated Optical Inspection (AOI)
Inspection technology down to 30 µm (1.2 mil) line/space
Inner-layer inspection
Outer-layer inspection
Build-up-layer inspection
HDI PCB inspection
Laser-via inspection applications
Multilayer PCB inspection
Full reference comparison
Model-based and contour comparison
Multi-layer panel understanding
CAM-based setup data
Pinless panel registration with panel-edge alignment
Optional automation-ready configuration
Optional stamper/marker configuration

PCB Defects Detection

The Discovery II 9000 can be used to detect various PCB manufacturing defects, including:

Open circuits
Short circuits
Minimum line/space violations
Nicks
Protrusions
Dishdowns
Copper splashes
Pinholes
Missing features
Excess features
Incorrect feature size
Incorrect feature position
Clearance violations
Split-plane violations
Blocked holes
Annular-ring violations
SMT-related PCB violations

PCB Applications

The system is suitable for inspection of:

Inner signal layers
Power and ground layers
Mixed layers
Cross-shielding layers
Inner layers with holes
Outer signal layers
Outer mixed layers
Build-up layers
Laser-via structures
HDI PCB
Multilayer PCB
Advanced PCB structures

Suitable Industries

PCB Manufacturing
HDI PCB Manufacturing
Multilayer PCB Manufacturing
High-Density Interconnect PCB Production
Advanced Electronics Manufacturing
Automotive Electronics
Consumer Electronics
Communication Electronics
Industrial Electronics
Medical Electronics
Computer and Server Electronics
Electronic Components Manufacturing
