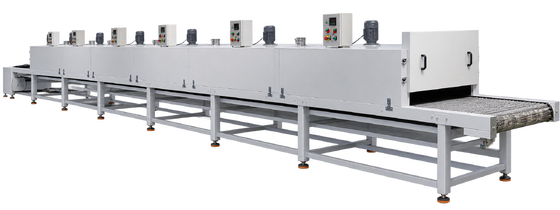

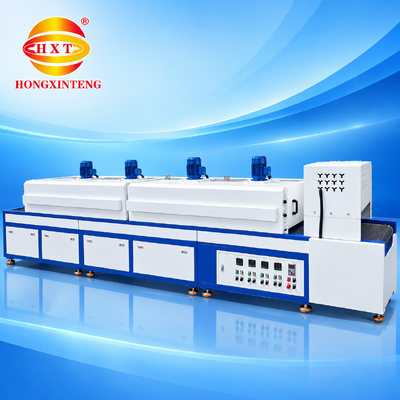

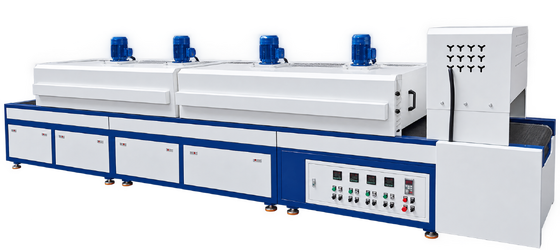

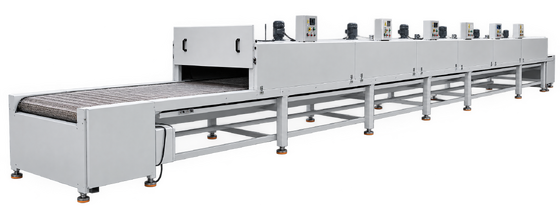

The Rack-Type Precision Hot Air Conveyor Oven is a continuous thermal-processing system designed for PCB manufacturing, especially for drying, pre-curing and final curing of solder mask, solder resist, legend ink and other PCB coatings.

The PCB panels are loaded onto racks and transported continuously through a controlled hot-air chamber. Forced hot-air circulation provides relatively uniform heating across the PCB surface, while controlled temperature and conveyor speed allow the curing process to be matched to different ink and coating requirements. Rack-type conveyor ovens are specifically used in PCB processes such as solder-mask pre-cure/post-cure, marking cure and hole-plug baking.

Key Advantages

• Uniform hot-air circulation
  High-volume forced air helps distribute heat evenly throughout the working chamber and across PCB panels.
• Precision temperature control
  Controlled heating helps maintain a repeatable thermal profile for different solder masks and inks. Commercial PCB conveyor ovens use controlled airflow and temperature profiling specifically to improve process consistency.
• Rack-type PCB transportation
  PCB panels are supported by racks during transportation, making the system suitable for continuous PCB fabrication processes.
• Continuous production
  Unlike batch ovens, the conveyorized design allows boards to enter and exit continuously, making it suitable for higher-throughput production.
• Multi-zone heating
  Different heating zones can be configured for gradual heating, curing and thermal stabilization according to the process recipe.
• Reduced process variation
  Stable temperature, airflow and transport speed help produce more consistent solder-mask and legend-ink results.
• Flexible PCB applications
  The same basic platform can support solder-mask curing, legend-ink curing, ink drying, hole plugging and other compatible PCB thermal processes.
• Production-line integration
  The oven can be integrated with upstream and downstream PCB fabrication equipment to form an automated production line. Rack-type and other transport configurations are used in automatic PCB curing systems.
