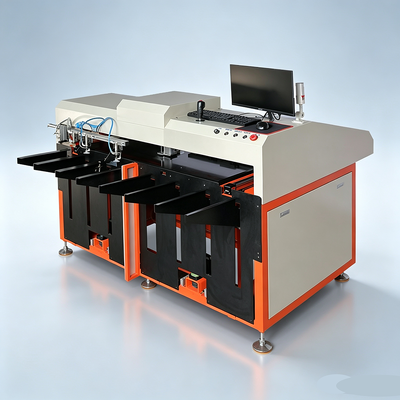

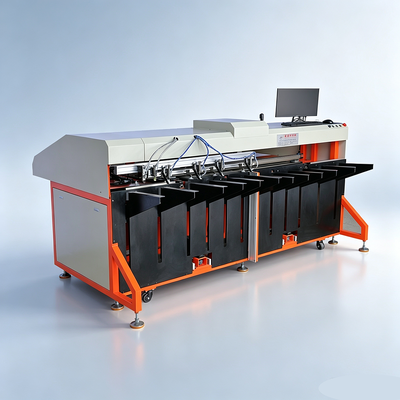

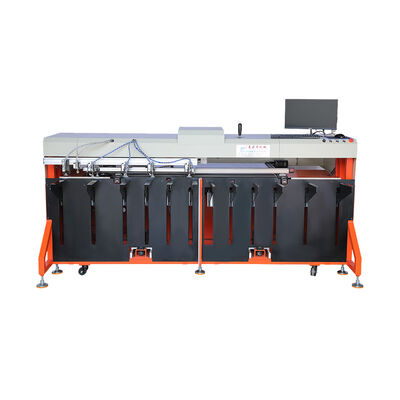

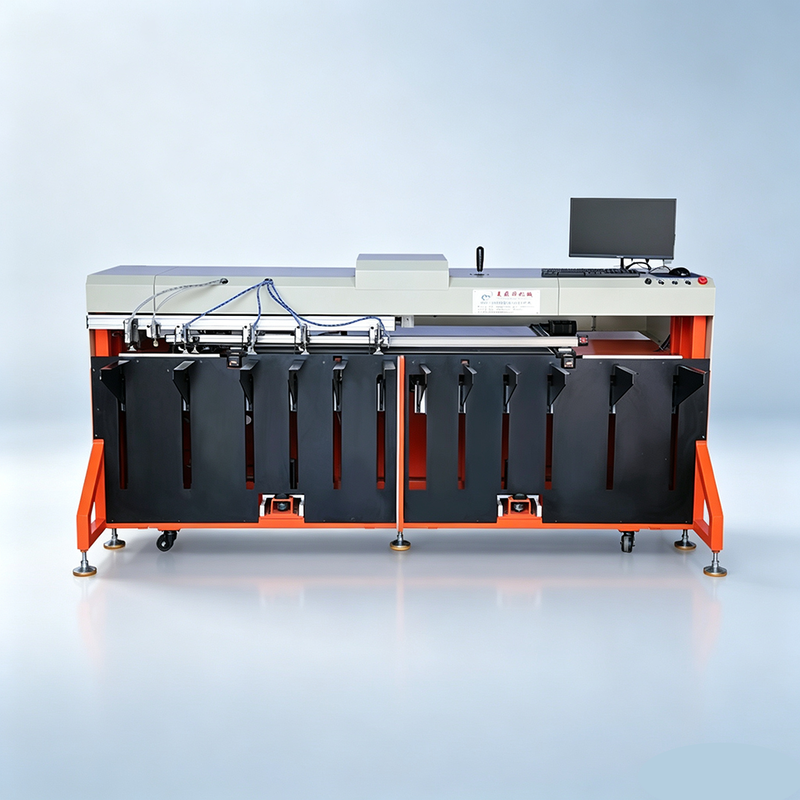

Fully Automatic PCB Guide Hole Drilling Machine with CCD Vision System for FR4 FPC Aluminum Board

Brand Name:	MD
Model Number:	MDD-650C
MOQ:	1 pcs
Price:	16500USD
Packaging Details:	Wodden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Plate Thickness Range:

0.3mm-5.0mm

Minimum Line Width:

0.2mm

Etching Pressure:

2.5-2.8KG/cm2

Etching Accuracy:

0.078mm

Positioning Accuracy:

±0.01mm

Print Speed:

8-11 Pcs/min

Supply Ability:

1000 pcs per month

Highlight:

Automatic PCB Drilling Machine

PCB Guide Hole Drilling Machine

Product Description

Fully Automatic PCB Guide Hole Drilling Machine with CCD Vision System

Product Overview

Our Automatic PCB Guide Hole Drilling Machine series represents the pinnacle of precision drilling technology for printed circuit board manufacturing. Engineered with advanced CCD vision positioning and servo-driven CNC control, this machine delivers exceptional accuracy and speed for guide hole and registration hole drilling on FR4, FPC, aluminum substrates, and other circuit board materials.

Available in both fully automatic and semi-automatic configurations, with multiple working area sizes to match your production requirements, our drilling machines are designed to streamline your PCB manufacturing workflow and ensure consistent, burr-free hole quality across every batch.

Key Features & Advantages

CCD Vision Positioning System — Precision You Can Trust

High-resolution CCD camera with automatic target recognition and positioning
Advanced image processing algorithm ensures fast and accurate fiducial alignment
Real-time visual compensation eliminates material expansion/contraction errors
Positioning accuracy up to ±0.025mm (high-precision models)

High-Speed Drilling — Maximize Your Throughput

Drilling speed as fast as 0.5 seconds per hole
High-speed linear guide motion platform for rapid X/Y axis movement
High-precision ball screw drive ensures smooth, vibration-free operation
Spindle speed range: 24,000 – 50,000 RPM for clean, burr-free holes

Servo Motor CNC Control — Industrial-Grade Reliability

AC servo motor drive system with closed-loop control
Microsoft Windows 10 64-bit operating system with intuitive user interface
Programmable drilling patterns with memory function — save and recall job setups
Automatic secondary compensation ensures consistent accuracy across the entire working area

Robust Construction & Versatile Application

Heavy-duty cast iron frame for maximum stability and durability
Handles a wide range of materials: FR4, FPC, aluminum board, CEM-1, CEM-3, and more
Drilling diameter range: 0.3mm – 3.5mm (high-precision model)
Optional spindle power: 400W / 750W to match your material thickness requirements

Technical Specifications

Parameter	MDD-650C	MDD-1250C	MDD-650C-1 (High Precision)	MDD-1250C-1 (High Precision)	MDD-1000 (Semi-Auto)
Machine Type	Automatic	Automatic	High-Precision Automatic	High-Precision Automatic	Semi-Automatic
Max. Board Size	700 × 500 mm	1200 × 600 mm	700 × 500 mm	1200 × 600 mm	1000 × 700 mm
Drilling Diameter	0.5 – 3.5 mm	0.5 – 3.5 mm	0.3 – 3.5 mm	0.3 – 3.5 mm	0.5 – 3.5 mm
Drilling Accuracy	±0.035 mm	±0.035 mm	±0.025 mm	±0.025 mm	±0.035 mm
Drilling Speed	1 sec/hole	1 sec/hole	0.5 sec/hole	0.5 sec/hole	0.5 sec/hole
Spindle Speed	24,000 – 50,000 RPM	24,000 – 50,000 RPM	24,000 – 50,000 RPM	24,000 – 50,000 RPM	24,000 – 50,000 RPM
Spindle Power	400W / 750W (Optional)	400W / 750W (Optional)	400W / 750W (Optional)	400W / 750W (Optional)	400W / 750W (Optional)
Operating System	Windows 10 64-bit	Windows 10 64-bit	Windows 10 64-bit	Windows 10 64-bit	Windows 10 64-bit
Power Supply	AC220V 3.5KW	AC220V 3.5KW	AC220V 3.85KW	AC220V 3.85KW	AC220V 3.5KW
Air Supply	0.5 – 0.7 MPA	0.5 – 0.7 MPA	0.5 – 0.7 MPA	0.5 – 0.7 MPA	0.5 – 0.7 MPA
Machine Dimension (L×W×H)	1750 × 1600 × 1250 mm	2800 × 1800 × 1250 mm	1750 × 1600 × 1250 mm	2800 × 1800 × 1250 mm	1000 × 700 × 1400 mm
Machine Weight	450 KG	500 KG	450 KG	500 KG	200 KG

Application Fields

PCB Manufacturing — Guide hole drilling, registration hole drilling, tooling hole drilling
Aluminum PCB — Drilling for metal-core and aluminum-based circuit boards
Multi-layer PCB — Accurate registration for lamination alignment
SMT Stencil — Precision hole processing
Film / Phototool — Target hole punching

Why Choose Our PCB Drilling Machine?

✅ Factory Direct Pricing — Manufactured in-house with strict quality control, no middleman markup

✅ 18+ Years of PCB Industry Experience — Deep understanding of circuit board manufacturing requirements

✅ Customizable Configuration — Choose from multiple sizes, precision levels, and spindle options to match your production needs

✅ Comprehensive After-Sales Support — Installation guidance, operator training, and ongoing technical assistance

✅ Proven Reliability — Deployed in PCB factories worldwide, trusted by manufacturers for consistent performance
