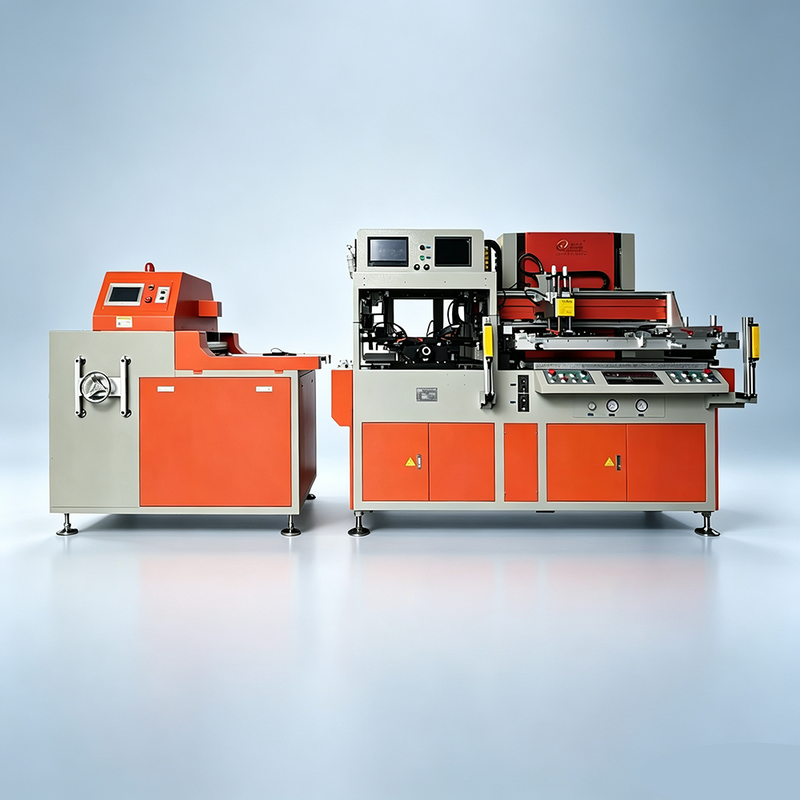

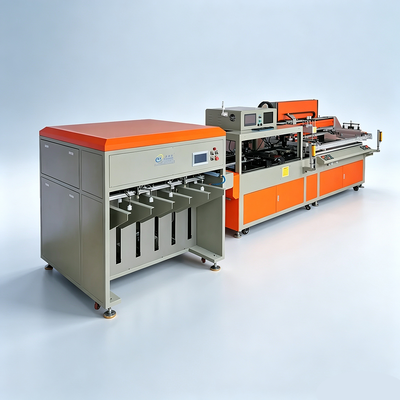

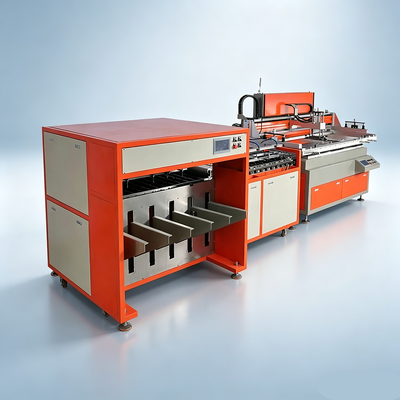

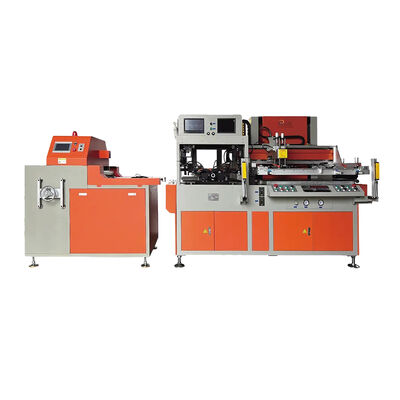

Fully Automatic CCD Vision Screen Printer High Precision Silk Screen Printing Machine for PCB

Brand Name:	MD
Model Number:	MDCCD-650
MOQ:	1 pcs
Price:	9700 USD
Packaging Details:	Wodden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Camera Parameter:

16K HD Cameras

Plate Thickness Range:

0.3mm-5.0mm

Controlsystem:

CNC With USB/PC Interface

Positioningaccuracy:

±0.01mm

Repeat Positioning Accuracy:

±0.02 Mm

Print Speed:

8-11 Pcs/min

Supply Ability:

1000 pcs per month

Highlight:

Fully Automatic CCD Vision Screen Printer

High Precision CCD Vision Screen Printer

PCB CCD Vision Screen Printer

Product Description

Fully Automatic CCD Vision Screen Printer | High Precision Silk Screen Printing Machine for PCB Solder Mask

Product Overview

Our Fully Automatic CCD Vision Screen Printer is engineered for high-precision solder mask printing on rigid PCB circuit boards. Equipped with advanced double CCD camera positioning technology and an intelligent UVW alignment platform, this machine delivers exceptional registration accuracy of ±0.02 mm, ensuring consistent, high-quality results for even the most complex circuit patterns.

Designed for fully automated production lines, the machine features automatic loading and unloading, PLC-based control, and a variable-frequency drive system — all working in harmony to maximize throughput while minimizing operator intervention. Whether you are running high-volume PCB manufacturing or precision prototype production, this screen printer adapts seamlessly to your production demands.

Key Features

High-Precision CCD Vision Alignment System

Dual CCD camera positioning automatically detects MARK points on the PCB substrate and calculates spatial offsets in real time
UVW precision platform adjusts X, Y, and θ axes for ultra-accurate alignment
Repeat positioning accuracy: ±0.02 mm — ideal for fine-pitch and high-density PCB designs
No pin fixtures required; any pattern can serve as an alignment target, enabling faster changeovers and greater flexibility

High-Speed Automatic Production

Fully automatic loading and unloading for uninterrupted production flow
Print speed up to 8–11 pieces per minute (model-dependent; varies with circuit complexity)
Variable-frequency drive (VFD) system with geared motors and linear slider motion ensures smooth, stable operation
Independent squeegee and flood bar pressure control for uniform ink distribution

Robust Safety & Reliability

Through-beam light grating safety system for operator protection
Self-locking air valve prevents unexpected movement during power or air supply interruption
Heavy-duty industrial frame construction for long-term stability and minimal maintenance

Intelligent Control System

PLC-based operation system with intuitive user interface for easy setup and monitoring
Digital adjustment of print speed, squeegee pressure, and stroke length
Recipe storage for quick job recall and reduced setup time

Technical Specifications

Parameter	MDCCD-650	MDCCD-1250	MDCCD-650-Z	MDCCD-1250-Z
Machine Type	Auto CCD PCB Solder Mask Screen Machine	Auto CCD PCB Solder Mask Screen Machine	Pickup Type CCD PCB Solder Mask Screen Machine	Pickup Type CCD PCB Solder Mask Screen Machine
Max. Print Area	620 × 530 mm	1250 × 530 mm	620 × 530 mm	1250 × 530 mm
Min. Print Area	250 × 220 mm	450 × 280 mm	250 × 220 mm	450 × 280 mm
Max. Frame Size	1100 × 950 mm	1700 × 950 mm	1100 × 950 mm	1700 × 950 mm
Print Speed	8–11 pcs/min	6–8 pcs/min	8–10 pcs/min	6–9 pcs/min
Substrate Thickness	—	—	0.6–3.0 mm	—
Repeat Positioning Accuracy	±0.02 mm	±0.02 mm	±0.02 mm	±0.02 mm
Wipe Mesh Height	300 mm	300 mm	300 mm	300 mm
Drive Method	Geared motor + VFD + Linear slider	Geared motor + VFD + Linear slider	Geared motor + VFD + Linear slider	Geared motor + VFD + Linear slider
Loading / Unloading	Automatic	Automatic	Automatic	Automatic
Control System	PLC system	PLC system	PLC system	PLC system
Power Supply	3-phase 5-wire AC380V, 5KW	3-phase 5-wire AC380V, 5KW	3-phase 5-wire AC380V, 5KW	3-phase 5-wire AC380V, 5KW
Air Supply	0.5–0.7 MPa	0.5–0.7 MPa	0.5–0.7 MPa	0.5–0.7 MPa
Machine Dimension (L×W×H)	4200 × 1300 × 1900 mm	5850 × 1800 × 1900 mm	1800 × 1400 × 1750 mm	3300 × 1400 × 1750 mm
Machine Weight	1200 kg	1600 kg	730 kg	940 kg

Applications

PCB solder mask printing (solder resist / green mask)
High-precision single-sided and double-sided PCB manufacturing
FR-4, CEM-1, aluminum-based, and copper-clad laminate substrates
LED PCB, automotive electronics, consumer electronics, industrial control boards
Suitable for both mass production and high-mix, low-volume production environments

Why Choose Our CCD Screen Printer?

✅ Proven Precision — ±0.02 mm repeat accuracy meets the demands of fine-pitch PCB fabrication

✅ Fully Automated — End-to-end auto loading → alignment → printing → unloading workflow reduces labor cost

✅ Flexible Configuration — Four models available to match different board sizes and production volumes

✅ Industrial-Grade Build — Heavy-duty frame, linear guide rails, and quality components ensure years of reliable service

✅ Easy Integration — Compatible with standard PCB production lines; PLC control supports MES connectivity

Model Options Available:

MDCCD-650 — Standard auto line model for boards up to 620 × 530 mm
MDCCD-1250 — Large-format auto line model for boards up to 1250 × 530 mm
MDCCD-650-Z — Pickup-type model for compact production lines (620 × 530 mm)
MDCCD-1250-Z — Pickup-type large-format model (1250 × 530 mm)
