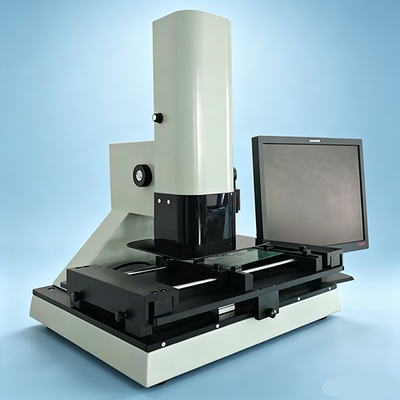

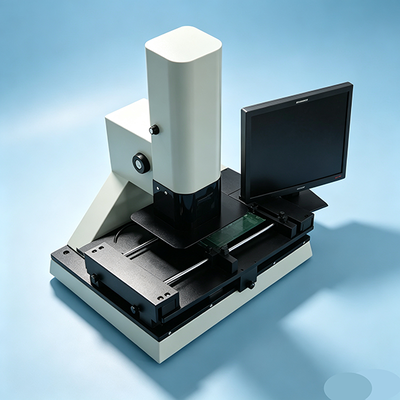

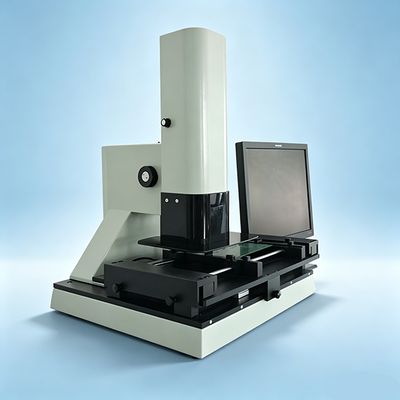

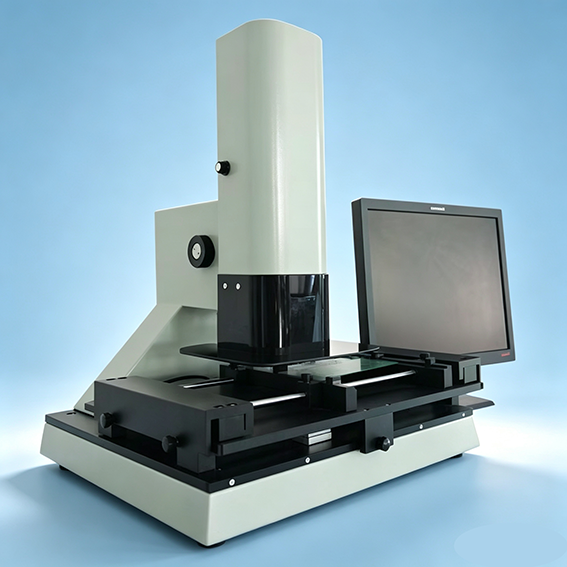

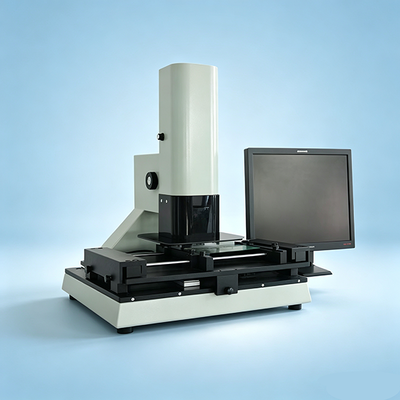

A High Precision 2D Non-Contact Laser Solder Paste Thickness Gauge (also known as a 2D Solder Paste Inspector or 2D SPI) is a specialized quality control instrument used in Surface Mount Technology (SMT) assembly lines. Its primary function is to measure the thickness and geometric characteristics of solder paste printed on a PCB pad. It is an offline, high-precision measurement system that employs a non-contact laser triangulation method to perform rapid and accurate inspections.

Unlike its 3D counterpart, which maps the entire three-dimensional morphology of a solder paste deposit to measure volume and shape, a 2D system focuses on acquiring precise height, length, width, area, and coplanarity data. The "non-contact" aspect is crucial as it allows inspection of wet solder paste immediately after printing without damaging or smearing the deposit. This gauge serves as a frontline defense in the SMT process, as it is estimated that up to 70% of soldering defects can be traced back to poor solder paste printing control.

The operation of a 2D laser solder paste thickness gauge follows a systematic workflow:

1. Sample Loading – An operator places a PCB panel onto the machine's precision worktable. The table is often a fixed, high-stability granite platform to ensure measurement accuracy.

2. Laser Projection – The system's core component, a dedicated laser generator, emits a high-precision red line laser beam at a fixed angle onto the target area on the PCB.

3. Height Calculation (Triangulation) – As the laser beam strikes the surface, it creates a discontinuity or "step" at the boundary between the elevated solder paste and the lower PCB substrate. A high-resolution digital camera captures this laser profile. The system then uses the trigonometric relationship from the triangulation setup to calculate the precise height difference from the observed laser line discontinuity.

4. Data Acquisition and Analysis – The system rapidly processes the captured data. It can measure multiple points and calculate not only the thickness of the paste but also other 2D parameters such as its area, volume, length, width, and spacing.

5. Statistical Process Control (SPC) – The measurement data is compiled and analyzed by integrated SPC software. The software generates comprehensive statistics, including average, maximum, minimum, standard deviation, and process capability indices like Ca, Cp, and Cpk. It can also produce control charts such as X-Bar and R charts for real-time process monitoring.

6. Reporting and Export – The final step involves generating detailed inspection reports, which can be viewed, printed, or exported in formats like text or Excel for quality records and traceability.

• High Precision & Accuracy – The use of a non-contact laser allows for extremely precise measurements, with typical accuracy reaching ±0.001mm (1μm) and repeatability of ±0.002mm. More advanced systems can achieve resolutions as fine as 0.125μm.

• Non-Contact & Damage-Free – As it does not physically touch the solder paste, the system allows for the immediate inspection of wet paste right after printing, preventing smearing or damage.

• Process Control & Defect Reduction – By identifying potential printing issues early, the gauge provides critical data for SPC, helping to prevent the propagation of defects to subsequent, more expensive assembly stages. This leads to a significant reduction in final product failure rates.

• Versatility – Beyond solder paste, the machine can measure a wide range of 2D geometries on various materials. This includes the thickness of ink, circuitry, and solder pads, as well as the coplanarity of component leads.

• Comprehensive Data & Analysis – Integrated SPC software provides powerful data analysis capabilities, including the calculation of key process capability indices (Cp, Cpk), which are essential for meeting stringent quality requirements in modern electronics manufacturing.

The High Precision 2D Non-Contact Laser Solder Paste Thickness Gauge is a versatile tool with applications across various stages of PCB and electronics manufacturing:
