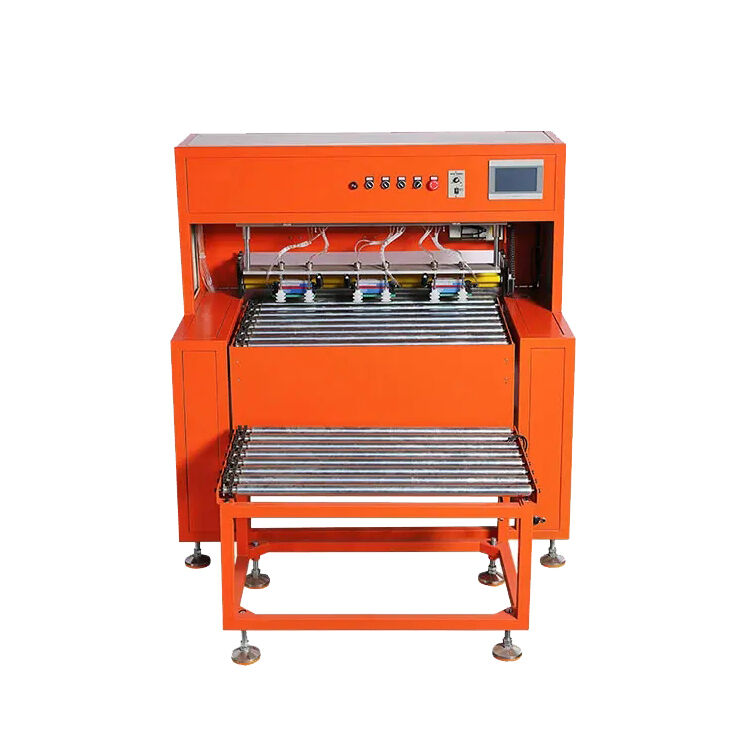

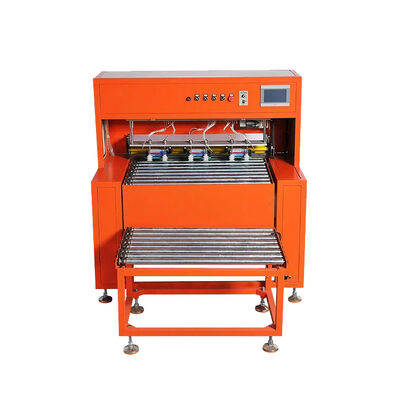

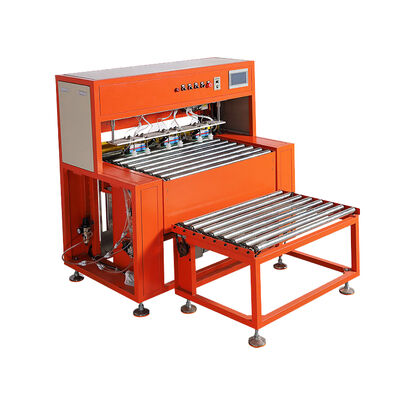

A PCB Automatic Grouping Loader / Automatic PCB Magazine Loader for Etching (also known as an automatic board loader) is an automated material handling device installed at the front end of a PCB production line—specifically positioned before the etching process or other wet processing stages. Its primary function is to automatically and sequentially feed PCBs from storage magazines (also called racks, cassettes) onto the production line conveyor, delivering boards to downstream equipment such as etchers, developers, or strippers.

The "magazine" in its name refers to the standardized storage rack that holds multiple PCBs in vertical slots—much like a magazine holding pages. The loader automatically extracts boards one by one from these magazines and pushes them onto the conveyor track. The "grouping" or "grouping" aspect refers to the system's ability to manage multiple magazines simultaneously, automatically cycling through them to ensure continuous, uninterrupted board supply.

This equipment is a critical component of automated PCB production lines, serving as the bridge between batch-loaded PCB stacks and the continuous-flow processing required by modern etching and fabrication equipment.

The automatic magazine loader operates through a systematic, fully automated workflow:

1. Magazine Loading – An operator loads one or more magazines filled with PCBs onto the loader's lower conveyor track. The magazines are positioned and secured in place.

2. Magazine Positioning – The system automatically detects the presence of the magazine and transports it to the loading work position using motor-driven升降 mechanisms.

3. PCB Extraction – Upon receiving a board request signal from the downstream equipment (e.g., the etching machine), the loader activates its push rod or pusher mechanism to gently push a single PCB out of the magazine slot and onto the conveyor track. The extraction is carefully controlled to prevent scratching or damaging the boards.

4. Board Conveyance – The extracted PCB is transported via the conveyor track to the downstream equipment (etcher, developer, etc.) at a synchronized speed matched to the production line's pace.

5. Magazine Step-Up – After each board is extracted, the lifting mechanism raises the magazine by a preset step distance (typically selectable at 10mm, 20mm, 30mm, or 40mm) to position the next PCB at the extraction height.

6. Magazine Changeover – When a magazine is completely emptied, the system automatically lowers the empty magazine and moves it to the upper return track. Simultaneously, the next full magazine is automatically cycled into the working position. An audible or visual alarm alerts the operator to remove the empty magazine and load a new one. This changeover typically takes approximately 30 seconds.

7. Continuous Operation – The entire process repeats continuously, enabling unattended, uninterrupted board feeding for extended production runs.

The entire system is controlled by a microcomputer PLC (Programmable Logic Controller) with a touchscreen interface for programming, monitoring, and fault diagnosis. Standard SMEMA communication interfaces allow seamless integration with other automated equipment.

The Automatic PCB Magazine Loader offers numerous significant benefits for etching and PCB production lines:

• Seamless Production Line Integration – Directly connects to etching lines and other wet processing equipment via standard SMEMA interfaces, enabling continuous, automated material flow without manual intervention.

• High Automation & Labor Savings – Fully automatic operation eliminates the need for manual board loading. A single machine can replace multiple manual operators, significantly reducing labor costs and addressing labor shortages. Operators are only needed for magazine loading/unloading.

• Consistent, Uninterrupted Supply – The multi-magazine system with automatic changeover ensures continuous board feeding without production stoppages. This is critical for etching lines that must run continuously to maintain chemical bath stability and process consistency.

• High Throughput – Fast cycle times—approximately 6 seconds per board—ensure the loader can keep pace with high-speed etching and production equipment.

• Damage Prevention – Automated handling eliminates scratches, fingerprints, and contamination caused by manual board handling. Features like soft pushers and anti-jam mechanisms further protect delicate PCBs.

• Process Stability & Quality – Consistent, automated feeding reduces process variability and ensures each board enters the etching line under identical conditions, improving etching uniformity and overall product quality.

• Broad Compatibility – Handles a wide range of PCB sizes (typically from 50×50mm up to 530×250mm or larger) and thicknesses (starting from 0.4–0.6mm). Adjustable导轨 widths accommodate different board dimensions.

• Reliable & User-Friendly Operation – PLC control with touchscreen interface provides stable, reliable performance with fault diagnosis, alarm systems, and easy programming. Anti-jam designs and safety features protect both equipment and personnel.

• Reduced Floor Space – Compact designs (e.g., approximately 1000×765×1225mm) minimize factory floor space requirements.

• Cost Reduction – Lower labor costs, reduced board damage, improved yield, and minimized downtime translate to significant overall cost savings.

The PCB Automatic Grouping Loader / Magazine Loader is widely applied across multiple stages of PCB manufacturing, particularly in etching and wet processing lines:

In modern PCB fabrication, the automatic magazine loader is an indispensable front-end component that enables truly automated, high-throughput etching and wet processing lines—reducing labor, improving quality, and ensuring consistent, reliable production.
