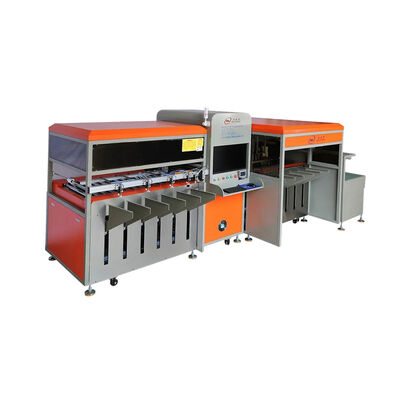

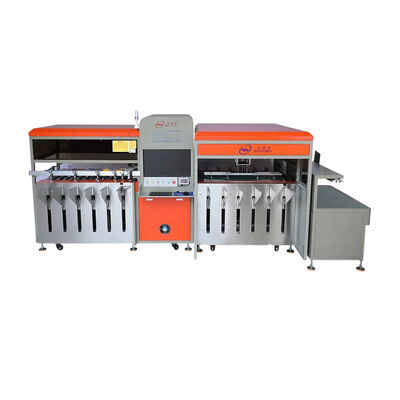

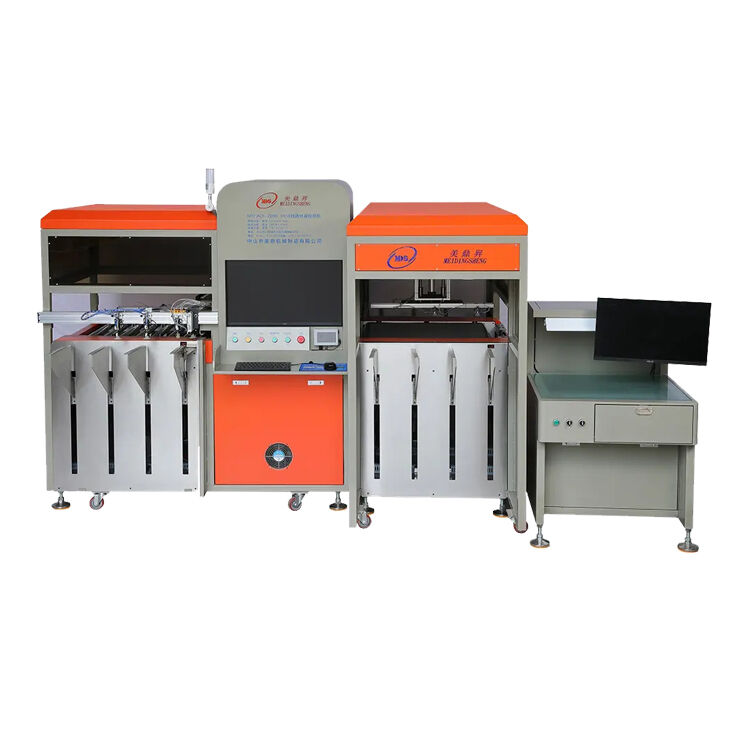

An In-line PCB AOI (Automated Optical Inspection) Machine for Etching Quality Control is an automated, machine-vision-based inspection system that is integrated directly into the PCB production line—typically positioned immediately after the etching and stripping processes. Unlike offline AOI systems that require manual board handling and separate inspection stations, an in-line AOI machine is connected via conveyors to the upstream and downstream equipment, enabling seamless, automated material flow without human intervention.

The system uses high-resolution cameras (typically line-scan or area-scan CCD/CMOS sensors), multi-angle LED lighting, and advanced image-processing software to automatically scan and inspect PCB surfaces for etching-related defects. Its primary purpose is to verify that the etched copper circuitry conforms to design specifications—specifically line width, line spacing, and surface integrity—by comparing the actual etched patterns against reference data such as Gerber files or golden templates.

The "in-line" configuration offers a critical advantage: boards flow directly from the etching line into the AOI machine, eliminating manual handling, reducing contamination risks, and enabling real-time process feedback for immediate corrective action.

The in-line AOI inspection process for etching quality control follows a systematic, high-speed workflow:

1. Automated Board Loading – After the etching and stripping processes are completed, PCBs are automatically transferred via conveyor directly into the AOI inspection machine. No manual handling is required, which prevents scratches and contamination.

2. Image Acquisition – The board is transported to the inspection stage, where high-resolution line-scan or area-scan cameras capture detailed images of the copper circuitry. Multi-angle LED lighting systems—often with automated dimming functions—illuminate the board from different angles to obtain optimal image contrast for various board types and surface conditions.

3. Image Processing and Defect Detection – The captured images are processed by sophisticated vision software that employs comparison-based detection logic. The system compares the actual circuit patterns against reference data (Gerber files or template images) to identify deviations. Key etching quality parameters inspected include:

   • Line width violations – traces that are too wide or too narrow relative to design specifications

   • Line spacing violations – gaps between traces that are too small, potentially causing shorts

   • Surface defects – shorts, opens, protrusions, nicks, scratches, pinholes, residual copper, copper dish-down, and missing/excess copper

4. Defect Classification and Reporting – Detected defects are automatically classified and coded with position information. The system generates detailed inspection reports, including deviation maps or color-coded defect maps that highlight areas where line widths or spacings fall outside acceptable tolerances.

5. Automated Board Segregation – Based on the inspection results, boards are automatically separated: defect-free boards proceed to the next production stage (e.g., solder mask application), while defective boards are diverted for repair or scrap.

6. Verification and Repair – Defective boards are sent to an AOI verification station or intelligent repair station, where operators use real-time defect location data and high-resolution images to perform accurate repairs.

The entire inspection process is extremely fast, with advanced systems capable of processing up to 220 panels per hour or more.

In-line PCB AOI inspection for etching quality control offers numerous significant benefits over traditional manual inspection or offline

In-line PCB AOI inspection for etching quality control offers numerous significant benefits over traditional manual inspection or offline AOI methods:

• Seamless Production Integration – Direct conveyor integration with etching lines eliminates manual board handling, prevents scratches, oxidation, and stacking pressure damage, and ensures continuous, uninterrupted material flow.

• High Precision and Accuracy – Advanced optical systems and sophisticated algorithms deliver consistent, repeatable inspection accuracy that far surpasses manual visual inspection. Systems can detect line width and spacing violations down to 30μm or even finer resolutions.

• Early Defect Detection – By inspecting immediately after etching, the system catches defects at the source before boards proceed to subsequent costly processes (lamination, drilling, plating, etc.). This prevents defective boards from consuming additional processing time and materials.

• High Throughput – In-line AOI systems operate at production-line speeds, inspecting hundreds of panels per hour—a single machine can replace up to six manual inspection positions.

• Elimination of Human Error – Unlike manual inspectors who suffer from fatigue and inconsistency, AOI systems do not tire or lose focus, enabling 24/7 operation with predictable, consistent output.

• Comprehensive Defect Coverage – The system detects a wide range of etching defects including shorts, opens, line width/spacing violations, protrusions, nicks, scratches, pinholes, residual copper, and missing/excess copper.

• Real-Time Process Feedback – Inspection data can be fed back to upstream equipment (e.g., etchers) for immediate process adjustment, helping maintain optimal etching quality and reducing batch defects.

• Digital Traceability – The system generates digital inspection records that support quality audits, traceability, and continuous improvement initiatives.

• Reduced Labor Costs – Automated inspection significantly reduces reliance on skilled manual inspectors, addressing labor shortages and high turnover challenges.

• Improved Yield – By identifying and segregating defects early, in-line AOI helps reduce material waste, lower rework costs, and improve overall product yield.

The In-line PCB AOI Machine for etching quality control is applied at multiple critical stages of PCB manufacturing, particularly for inner layer and outer layer inspection.

By integrating AOI directly into the etching production line, PCB manufacturers achieve real-time quality control, reduced handling damage, and significant improvements in yield and production efficiency—making the in-line AOI machine an indispensable tool for modern PCB fabricat.
