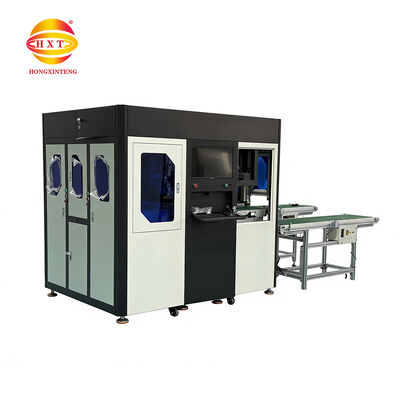

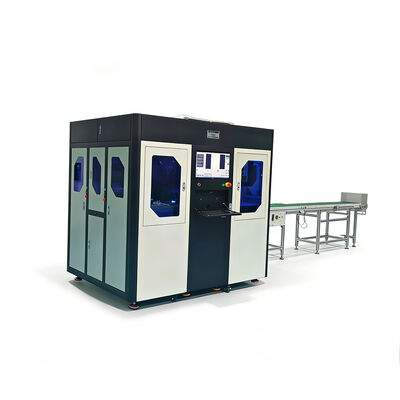

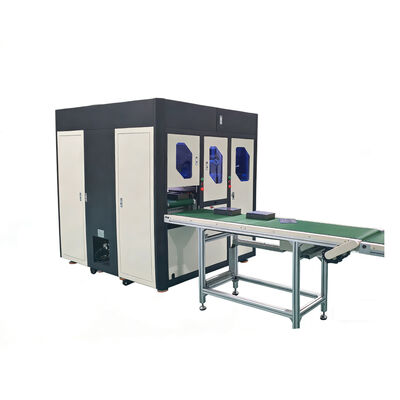

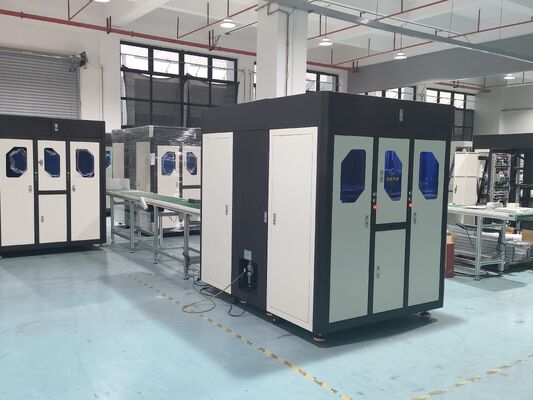

AI-Powered PCB Automated Visual Inspection (AVI) Machine – High-Speed 50μm Precision Optical Inspection Equipment for Solder Mask & Circuit Defect Detection

Brand Name: MDC
Model Number: S25
MOQ: 1
Price: 67500
Packaging Details: wooden box packing
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Maximum Board Size:
50*110mm-350*500mm
Plate Thickness Range:
0.3mm-5.0mm
Power Supply:
2-phase 3-wire220V,50HZ/60HZ
Resolution Ratio:
25um
Photographic Lens:
Linear Scan 7300Pixels
Device Size:
L 1985mm*W1475mm*H1900mm
Supply Ability:
The production capacity is 50 units a month
Product Description

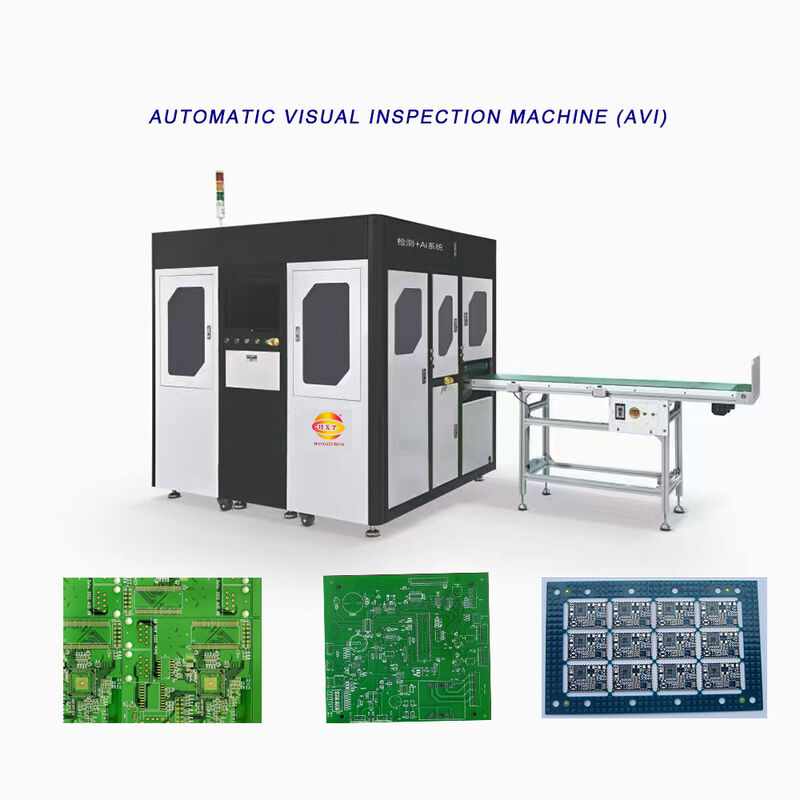

PCB Automated Visual Inspection Machine AI-Powered PCB Automated Visual Inspection (AVI) Machine – High-Speed 50μm Precision Optical Inspection Equipment for Solder Mask & Circuit Defect Detection
Description

The PCB Automated Visual Inspection (AVI) System is an advanced optical inspection solution designed for pre-shipment final quality control in printed circuit board manufacturing. Integrating cutting-edge image processing, artificial intelligence, and real-time computing technologies, the AVI system automatically detects surface defects and cosmetic imperfections on PCBs with high speed and precision.

As an intelligent vision-based inspection system, AVI replaces traditional manual visual inspection—which is prone to human error and fatigue—with automated, non-contact inspection that is faster, more consistent, and more accurate. The system is widely used in high-volume, continuous automated production lines for online, non-contact inspection and monitoring.

Defect Detection Capabilities

The AVI system can detect a comprehensive range of surface defects across various PCB surface finishes and board types:

Category Defects Detected
Solder Mask Ink buildup, contamination, scratches, missing print, exposure shift, exposed copper
Legend / Character Blurred printing, missing characters, wrong characters, extra printing, wrong color, misalignment
PAD (Land Pattern) Scratches, oxidation, solder mask contamination, nicks, residual copper, contamination, uneven surface
Hole / Outline Missing drill holes, plugged holes, missing routing
Gold/Copper Surface Protrusions, dents, shorts, opens, foreign objects, contamination, missing plating, scratches, nicks, bumps, exposed copper, misalignment
Surface Finishes Supports ENIG (Electroless Nickel Immersion Gold), OSP, Immersion Silver, Immersion Tin, and HASL (Hot Air Solder Leveling) boards
Special Features Selective area inspection (e.g., BGA areas, gold finger seepage detection); customizable detection functions

Supported board types include rigid PCB, flexible PCB (FPC), rigid-flex PCB, HDI, CSP, BOC, MMC, BGA, IC substrate, and automotive PCB.

Specifications
S25 Specifications
resolution ratio 25um
Scan area 50*110mm-350*500mm
thickness range 0.3-5.0mm (Hold the edge of the board so it doesn't bend naturally)
capacity Single-chip test: 700-1000 sets/hour; dual-chip test: 1400-1800 sets/hour
Device size L 1985mm*W1475mm*H1900mm
Weight of equipment 1600KG
language Chinese or English
Producer type Gerber + physical board production
transmission mode Horizontal belt conveyor
Error detection method Image Comparison + Logic Operation
AI Intelligence (optional) pseudesth esia
Defect confirmation IRS Maintenance Station Confirmation + Body Confirmation
automatics Automatic loading and unloading, automatic staggered arrangement
Test board type Gold-plated, OSP (Organic Solder Paste) coated, selective chemical etched, tin-sprayed, and silver-silvered boards
Applications:

The AVI system is specifically designed for final visual inspection of PCBs prior to packaging and shipment. Its core purpose is to identify and sort out defective boards before they leave the factory, thereby:

  • Reducing product scrap and rework costs

  • Minimizing customer returns and complaints

  • Ensuring consistent product quality

  • Lowering reliance on manual labor and reducing human inspection costs
