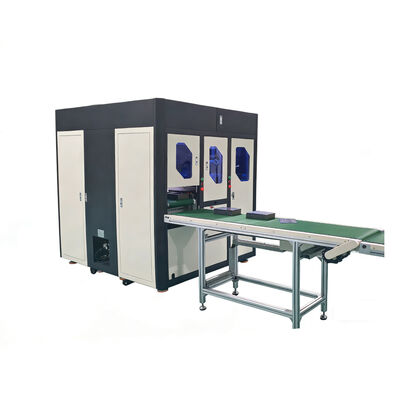

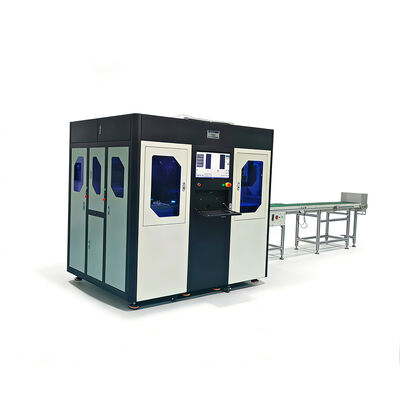

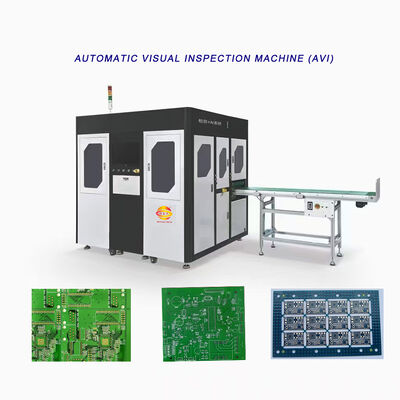

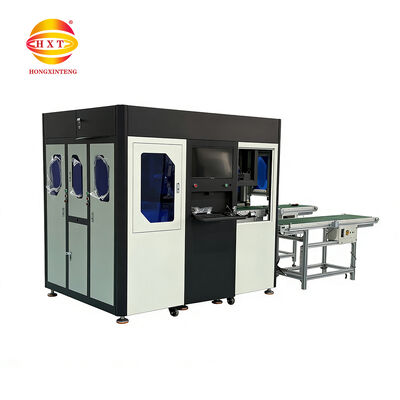

PCB Automatic Visual Inspection Machine , AVI System for Bare Board Surface Defect Detection

Brand Name: HXT
Model Number: S2
MOQ: 1
Price: 55800 USD
Packaging Details: Vacuum packing plus wooden box packing
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Weight:
1850kg
Scan area:
50*110mm-350*500mm
Resolution::
25 µm/pixel
Name:
AVI Visual Inspection Equipment
Product Name:
Automatic Visual Inspection Machine (AVI)
Application:
PCB Bare Board Visual Inspection
Supply Ability:
The production capacity is 50 units a month
Highlight:

PCB Automatic Visual Inspection Machine

,

AVI System for Defect Detection

,

PCB AVI System

Product Description
PCB Automatic Visual Inspection Machine
AVI System for Bare Board Surface Defect Detection
Inline Visual Inspection System | CCD-Based Automatic Optical Inspector for Bare PCB Appearance Defect Detector
Key Features
S25 Inline PCB AVI Visual Inspection Equipment
This is a high-precision AVI (Automated Visual Inspection) system designed specifically for PCBs (Printed Circuit Boards). It is primarily utilized for the automated visual inspection of bare PCBs—examining the boards' surface appearance prior to the mounting of any components.
  • Inspection Objects: Bare PCBs (devoid of any components) | Suitable for integration into PCB manufacturing processes
  • Inspection Method: Supports importation of Gerber data | Performs comparative analysis between Gerber data and actual physical PCB product
  • Inspection Scope: Surface scratches | Silkscreen character verification (missing, blurred, contaminated, or misaligned characters) | Surface finish anomalies (oxidation, contamination, defective coatings)
  • Inspection Capabilities: Supports simultaneous inspection of both PCB sides | Automatically renders inspection verdicts and generates comprehensive reports
This equipment combines traditional image processing techniques with optional modern AI algorithms, addressing critical industry pain points such as difficulty detecting minute defects, high false-alarm rates, and inefficiency of manual re-inspection.
Technical Specifications
Resolution Ratio 25μm
Scan Area 50*110mm - 350*500mm
Thickness Range 0.3-5.0mm (Hold the edge of the board to prevent natural bending)
Capacity Single-chip test: 700-1,000 sets/hour | Dual-chip test: 1,400-1,800 sets/hour
Device Size L 1985mm * W 1475mm * H 1900mm
Equipment Weight 1600 KG
Language Chinese or English
Producer Type Gerber + physical board production
Transmission Mode Horizontal belt conveyor
Error Detection Method Image Comparison + Logic Operation
AI Intelligence (Optional) Pseudo-defect filtering
Defect Confirmation IRS Maintenance Station Confirmation + Body Confirmation
Automation Automatic loading/unloading, automatic staggered arrangement
Test Board Types Gold-plated, OSP coated, selective chemical etched, tin-sprayed, and silver-plated boards
Core Functions and Applications
High-Precision Circuit Inspection: Suitable for detecting circuit defects—including short circuits, open circuits, burrs, and notches—across various PCB types such as gold-plated, OSP-finished, hot air solder leveled (HASL), and silver-plated boards. Optimized for boards ranging from 0.3mm to 5.0mm thickness and supports auxiliary inspection of flexible PCBs (FPCs).
Dual-Mode Defect Judgment: Employs "Image Comparison + Logic Calculation" algorithm as core foundation to ensure high detection rate for common defects. Optional "AI Intelligent Filtering" module utilizes artificial intelligence to filter out false calls caused by surface process artifacts. Official test data indicates false-call filtering rate exceeding 70%, significantly reducing operator verification workload.
Automated Inline Operation: Supports automatic board loading/unloading and dual-track/dual-panel inspection. Integrates into production line via horizontal conveyor belt system, automatically aligning and staggering boards for fully automated, unattended production.
Offline Re-inspection and Repair (VRS): Equipped with dedicated Verification and Repair Station (VRS). When defects are detected, system records coordinates; operators use re-inspection station to quickly verify defects via high-definition imagery and perform repairs directly on physical board, minimizing production line downtime.
Tags:

pcb aoi machine

3d aoi machine

automated optical inspection equipment

Good price online

Products Details

Home > Products >
SMT AOI Machine
>
PCB Automatic Visual Inspection Machine , AVI System for Bare Board Surface Defect Detection
All Category

Pick And Place Machine

Reflow Oven

SMT AOI Machine

SMT Solder Paste Printing Machine

SMT SPI Machine

SMT Machine Line

Automatic Insertion Machine

Wave Soldering Machine

SMT Loader Unloader Machine

SMT Conveyor

Glue Dispensing Machine

Conformal Coating Machine

Curing Oven Machine

PCB Cutting Machine

Electronics Production Machinery

PCB Machine
name
  • name
  • name
  • name
  • name
  • name

PCB Automatic Visual Inspection Machine , AVI System for Bare Board Surface Defect Detection

Brand Name: HXT
Model Number: S2
MOQ: 1
Price: 55800 USD
Packaging Details: Vacuum packing plus wooden box packing
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
HXT
Certification:
CE
Model Number:
S2
Weight:
1850kg
Scan area:
50*110mm-350*500mm
Resolution::
25 µm/pixel
Name:
AVI Visual Inspection Equipment
Product Name:
Automatic Visual Inspection Machine (AVI)
Application:
PCB Bare Board Visual Inspection
Minimum Order Quantity:
1
Price:
55800 USD
Packaging Details:
Vacuum packing plus wooden box packing
Delivery Time:
10-15 days
Payment Terms:
T/T
Supply Ability:
The production capacity is 50 units a month
Highlight:

PCB Automatic Visual Inspection Machine

,

AVI System for Defect Detection

,

PCB AVI System

Product Description
PCB Automatic Visual Inspection Machine
AVI System for Bare Board Surface Defect Detection
Inline Visual Inspection System | CCD-Based Automatic Optical Inspector for Bare PCB Appearance Defect Detector
Key Features
S25 Inline PCB AVI Visual Inspection Equipment
This is a high-precision AVI (Automated Visual Inspection) system designed specifically for PCBs (Printed Circuit Boards). It is primarily utilized for the automated visual inspection of bare PCBs—examining the boards' surface appearance prior to the mounting of any components.
  • Inspection Objects: Bare PCBs (devoid of any components) | Suitable for integration into PCB manufacturing processes
  • Inspection Method: Supports importation of Gerber data | Performs comparative analysis between Gerber data and actual physical PCB product
  • Inspection Scope: Surface scratches | Silkscreen character verification (missing, blurred, contaminated, or misaligned characters) | Surface finish anomalies (oxidation, contamination, defective coatings)
  • Inspection Capabilities: Supports simultaneous inspection of both PCB sides | Automatically renders inspection verdicts and generates comprehensive reports
This equipment combines traditional image processing techniques with optional modern AI algorithms, addressing critical industry pain points such as difficulty detecting minute defects, high false-alarm rates, and inefficiency of manual re-inspection.
Technical Specifications
Resolution Ratio 25μm
Scan Area 50*110mm - 350*500mm
Thickness Range 0.3-5.0mm (Hold the edge of the board to prevent natural bending)
Capacity Single-chip test: 700-1,000 sets/hour | Dual-chip test: 1,400-1,800 sets/hour
Device Size L 1985mm * W 1475mm * H 1900mm
Equipment Weight 1600 KG
Language Chinese or English
Producer Type Gerber + physical board production
Transmission Mode Horizontal belt conveyor
Error Detection Method Image Comparison + Logic Operation
AI Intelligence (Optional) Pseudo-defect filtering
Defect Confirmation IRS Maintenance Station Confirmation + Body Confirmation
Automation Automatic loading/unloading, automatic staggered arrangement
Test Board Types Gold-plated, OSP coated, selective chemical etched, tin-sprayed, and silver-plated boards
Core Functions and Applications
High-Precision Circuit Inspection: Suitable for detecting circuit defects—including short circuits, open circuits, burrs, and notches—across various PCB types such as gold-plated, OSP-finished, hot air solder leveled (HASL), and silver-plated boards. Optimized for boards ranging from 0.3mm to 5.0mm thickness and supports auxiliary inspection of flexible PCBs (FPCs).
Dual-Mode Defect Judgment: Employs "Image Comparison + Logic Calculation" algorithm as core foundation to ensure high detection rate for common defects. Optional "AI Intelligent Filtering" module utilizes artificial intelligence to filter out false calls caused by surface process artifacts. Official test data indicates false-call filtering rate exceeding 70%, significantly reducing operator verification workload.
Automated Inline Operation: Supports automatic board loading/unloading and dual-track/dual-panel inspection. Integrates into production line via horizontal conveyor belt system, automatically aligning and staggering boards for fully automated, unattended production.
Offline Re-inspection and Repair (VRS): Equipped with dedicated Verification and Repair Station (VRS). When defects are detected, system records coordinates; operators use re-inspection station to quickly verify defects via high-definition imagery and perform repairs directly on physical board, minimizing production line downtime.
Tags:

pcb aoi machine

3d aoi machine

automated optical inspection equipment
