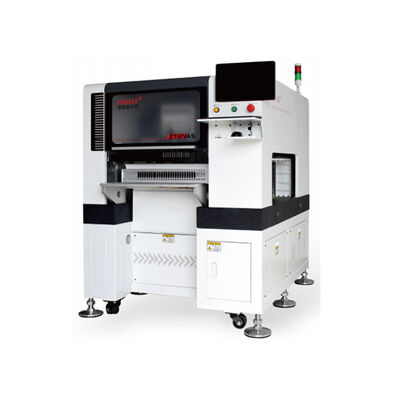

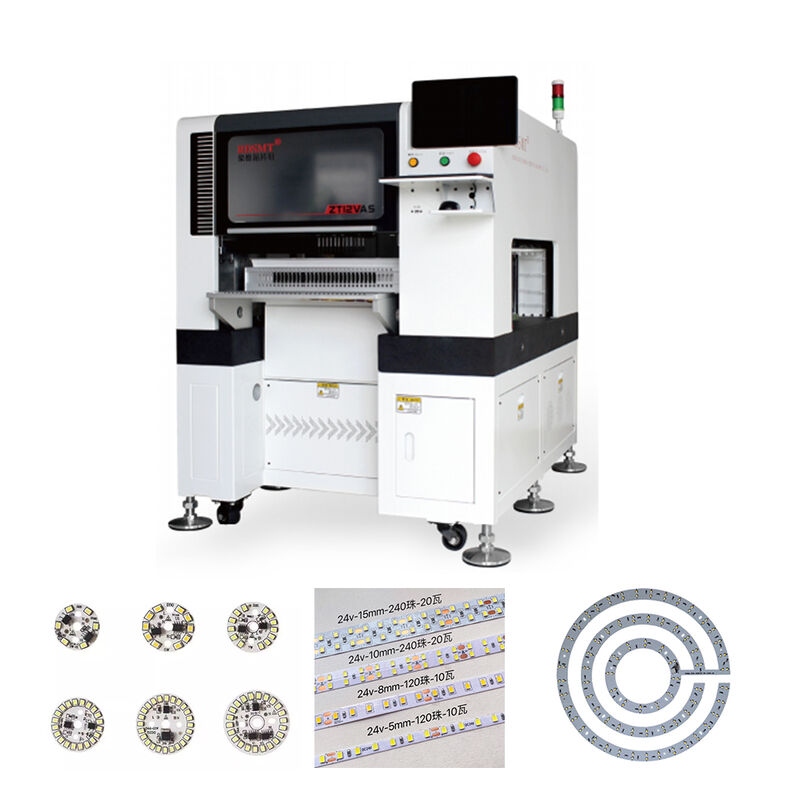

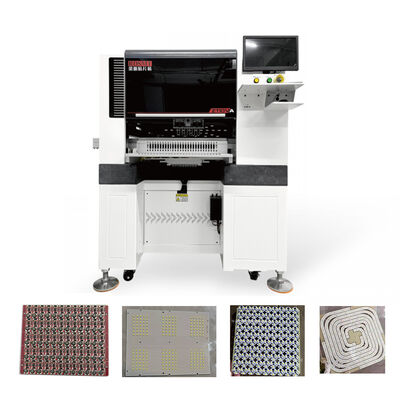

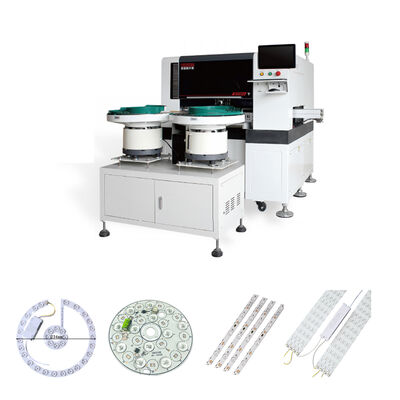

Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines

Brand Name: RD
MOQ: 1
Price: $23,500
Detail Information
Product Description
Detail Information
Place of Origin:
China
Machine Type:
Pick And Place Machine
Product Name:
Pick And Place Machine
Type:
Semi Automatic
Name:
DOB Pick And Place Machine
Usage:
SMT Assembly Line For Chip Mounter
Marketing Type:
Surface Mount Pick And Place Machine
Application:
Surface Mount Technology
Highlight:

70000CPH Placement Speed Pick and Place Machine

,

12 Spindles SMT Machine

,

Independent Camera Motor PCB Assembly Machine

Product Description
LED Chip Mounter SMD Placer Robot for Electronics SMT PCB Assembly Pick and Place Machine
This High-Speed Pick And Place Machine, engineered for demanding SMT LED assembly, delivers exceptional productivity with a remarkable speed of 70000CPH. Its advanced 12-spindle turret head ensures swift and precise component placement. Each spindle is equipped with an independent vision camera, providing real-time feedback and accurate recognition for flawless placement accuracy and maximum production yield. Designed for high-volume manufacturing, it guarantees reliability, efficiency, and superior performance.
Advanced automated placement system designed for high-efficiency electronics manufacturing production lines.
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines 0
Key Features

Each group of mounting heads independently controls the rotation angle, resulting in higher mounting efficiency. Each nozzle corresponds independently to a 1 megapixel flying camera for visual correction. Three section fixed track transmission, higher efficiency for mounting small-sized and fewer PCB boards. Suitable for: bulb, projection light, power supply, ceiling light, backlight, etc.

Applications
Ideal for modules, fluorescent tubes, soft light strips, outdoor lights, ceiling lights, flat panel lights, and various electronic assemblies.
Technical Specifications
Model No RD-ZT8VAS RD-ZT10VAS RD-ZT12VAS
Number of mounting heads 8 heads 10 heads 12 heads
Feeder Station 30 stations 27 stations 30 stations
Optimal placement speed 50000 chips/h 60000chips/h 70000 chips/h
Machine weight Approximately 1400KG
Heightof Attachable Components <8mm
Mavimummounting plate size 600mm long×500mm wide
External dimensions 1350mm long×1350mm wide×1500mmhigh
Substrate transfer method One section track automatic transmission
Machine System Independentydeveloped operating system
Positioning method Visual automatic MARK points
Correction of suction error
byflying swatter		 Each nozzle corresponds independently toalmegapivel flying camera for visual coection
Programming method Visual camerapositioning programming/Ecel format filecoordinate import
Input powerfvoltage AC220V/50HZ (operating power approximatelyZKW/H)
Mountable components Beads,resistors,capacitors,ICs,terminals,diodes,etc above 0603
Advanced Vision System Technology
Independent Camera Motors: Each placement head features its own independent camera motor and lens/zoom component, representing the ultimate configuration for high-end precision electronics manufacturing.
This revolutionary hardware parallelization design resolves the fundamental efficiency vs. precision conflict that cannot be addressed at software level.
Parallel Vision Processing: All 12 placement heads simultaneously capture images and perform component recognition calculations while in motion - no waiting, no queuing.
True On-the-Fly Alignment
Component recognition is 100% synchronized with placement head movement. As the head moves from pick-up to PCB placement position, its built-in camera completes component recognition, positioning, and angle calculation en route. Upon reaching the target point, placement occurs immediately with zero visual waiting time.
Model Variations
8 Placement Head: Independent rotation angle control, 50,000 chips/hour
10 Placement Head: Independent rotation angle control, 60,000 chips/hour
12 Placement Head (Optional): Independent rotation angle control, 70,000 chips/hour

Applications
Fluorescent tubes, soft light strips, flat panel lights, outdoor lights, ceiling lights, bulbs, terminals, and various electronic assemblies.
