Smt Pick and Place Machine for Led Lens Bulb Tube Lamp Driver Board Pcb Assembly High Precision Manufacturing Production Line

Brand Name:	RD
MOQ:	1
Price:	$27,600

Detail Information

Product Description

Detail Information

Place of Origin:

China

Machine Type:

Pick And Place Machine

Product Name:

Led Lens Pick And Place Machine

Name:

Led Panel Light Manufacturing Smt Line

Function:

Pcb Fully Automatic Assembly Line

Usage:

Led Lamp Production Line

Marketing Type:

Led Lens Chip Mounter

Application:

Led Ceiling Light Manufacturing Smt Line

Highlight:

55000CPH Placement Speed Pick and Place Machine

Independent Camera Motor SMT Machine

Automatic Nozzle Changing LED Lens Mounter

Product Description

High-Precision SMT Pick and Place Machine for LED Applications

Advanced automated solution for LED lens, bulb, tube lamp, and driver board PCB assembly with exceptional precision and efficiency.

Product Overview

High-performance surface mount component placement equipment designed for LED DOB lighting, small household appliances, control panels, point light sources, and other electronic manufacturing applications.

Key Features

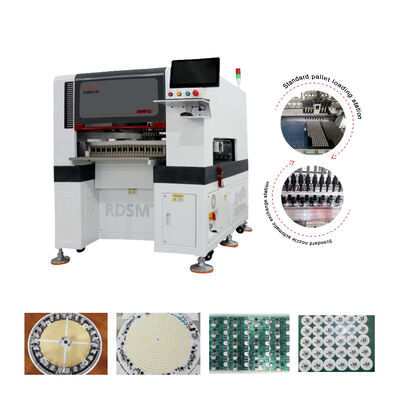

Equipped with a suction nozzle exchange station, achieving simultaneous installation of single machines with the same size and material. Standard tray material station is equipped, and the woven tray material can be installed simultaneously. Each group of mounting heads independently controls the rotation angle, resulting in higher mounting eﬃciency. The highest eﬃciency of DOB component installation can reach 18000 chips/h. Suitable for: DOB light source, small household appliances, control panel, point light source, etc. Equipped with suction nozzle warehouse exchange station, large and small materials can be installed on a single machine; Standard tray material station is equipped, and the braided material can be pasted at the same time; 9 sets of individual gigabit network interface industrial ﬂight error photo correction system.

Technical Specifications

Model No	RD-8MF	RD-12MF	RD-8MFL	RD-12MFL
Number of mounting heads	8 heads	12 heads	8 heads	12 heads
Feeder Station	26 stations	35 stations	26 stations	35 stations
Optimal placement speed	35000 chips/h	55000 chips/h	35000 chips/h	55000 chips/h
Maximum mounting plate size	800mm×500mm (segmented patch, each segment can be pasted with 400mm)		1200mm×500mm (segmented patch, each segment can be pasted with 600mm)
Machine weight	Approximately 1350KG		Approximately 1600KG
External dimensions	1350mm long ×1350mm wide×1500mm high		1800mm long×1500mm wide×1500mm high
Height of Attachable Components	＜22mm
Pallet material	1～3 standard pallets
Suction nozzle library	Automatic exchange nozzle library 24 stations (RD-12MF/RD-12MFL models have 36 stations)
Substrate transfer method	Three section track automatic transmission
Machine System	Independently developed operating system
Positioning method	Visual automatic MARK points
Correction of suction error by ﬂying swatter	Each nozzle corresponds independently to a 1 megapixel ﬂying camera for visual correction
Programming method	Visual camera positioning programming/Excel format ﬁle coordinate import
Input power/voltage	AC220V/50HZ (operating power approximately 2KW/H)
Mountable components	Above 0402 lamp beads, resistors, capacitors, ICs, terminals, electrolyzers, inductors, diodes, QFPs, etc.

Advanced Vision System

Each placement head features an independent camera motor with dedicated lens/zoom components for on-the-fly alignment vision processing.

Parallel Vision Processing

All 12 placement heads simultaneously capture images and perform recognition calculations while in motion, eliminating waiting and queuing times.

True On-the-Fly Alignment

Component recognition is 100% synchronized with placement head movement. As heads move from pick-up to placement positions, built-in cameras complete component recognition, positioning, and angle calculations, achieving zero visual waiting time.

Automatic Nozzle Changing

Core technology enabling higher efficiency, intelligence, and flexibility in SMT production lines.

Production Efficiency Benefits

Fast nozzle changing within seconds without manual intervention
Continuous production supporting rapid product switching
Optimized placement cycles with automatic nozzle matching

Placement Head Configurations

8 Placement Head: Independently controlled rotation angle, 50,000 chips/hour

10 Placement Head: Independently controlled rotation angle, 60,000 chips/hour

Application Scope

Ideal for large, thick PCBs with high component density, including capacitors, resistors, inductors, fuses, terminal blocks, and large connectors. Primarily used in LED DOB lighting, LED drivers, and industrial control board production.
