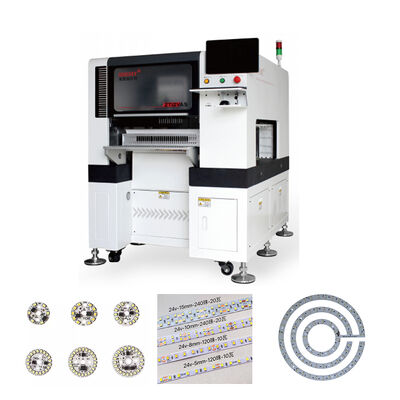

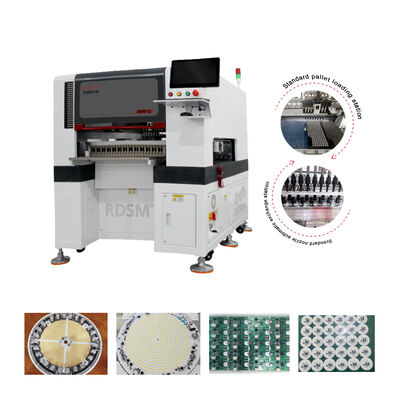

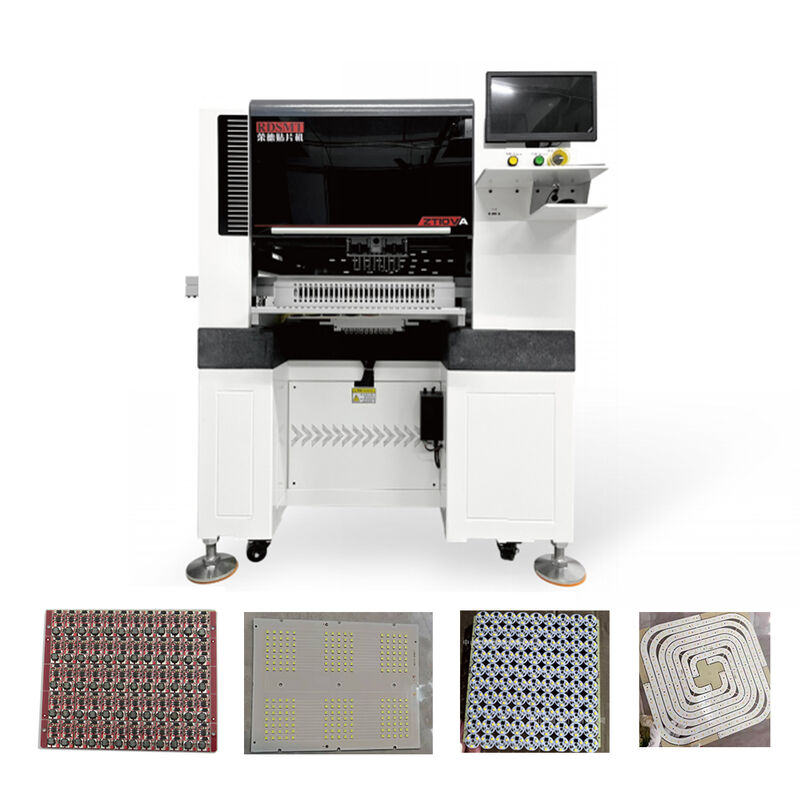

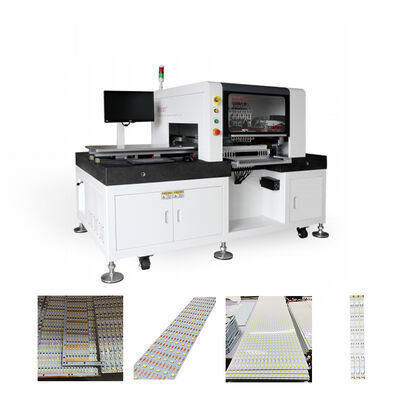

High Speed Pick and Place Machine Fully Automatic Smd Led Production Line Pcb Fabrication Manufacturing Equipment

Brand Name:	RD
MOQ:	1
Price:	$22,000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Machine Type:

Pick And Place Machine

Product Name:

Led Pick And Place Machine Price

Name:

SMD Pick And Place Machine

Function:

Surface Mount Equipment

Usage:

SMT Production Assembly Line

Marketing Type:

PCB Manufacturing Line

Application:

SMT LED Assembly Line

Highlight:

60000CPH Pick and Place Machine

Independent Camera Motor SMT Placement Machine

Three Section Track Transmission PCB Assembly Machine

Product Description

High-Precision SMT Pick and Place Machine for LED Applications

High-speed fully automatic SMD LED production line PCB fabrication equipment designed for efficient electronic component placement.

Product Overview

High-performance surface mount component placement equipment designed for LED DOB lighting, small household appliances, control panels, point light sources, and other electronic manufacturing applications.

Key Features

Each group of mounting heads independently controls the rotation angle, resulting in higher mounting eﬃciency. Each nozzle corresponds independently to a 1 megapixel ﬂying camera for visual correction. Three section ﬁxed track transmission, higher eﬃciency for mounting small-sized and fewer PCB boards. Suitable for: bulb, projection light, power supply, ceiling light, backlight, etc.

Technical Specifications

Model No	RD-ZT8VA	RD-ZT10VA
Number of mouning heads	8 heads	10 heads
Feeder Station	26 stations	26 stations
Oplinal plapement speed	50000 chips/h	60000 chips/h
Machine weight	Approximately 1350KG	Approximately 1600KG
Heght of Attachable Components	<8mm
Maximum mounting plate size	800mm x 500mm (segmented patch,each segment can be pasted with 400mm) 1200mm × 500mm (segmented patch,each segment can be pasted with 600mm)
Edemal dimensions	1350mm long x1350mm wide×15D0mm high (Apply 800mm×500mm model) 1200mm long*1500mm wide×15D0mm hig (Apphy 1200mm×500mm model)
Substrate transfer method	Three section track automatic transmission
Machine Syslem	Independenty deweloped operating system
Positioning method	Visual automatic MARK points
Correction of suction eror by flying swatter	Each nozlze corresponds independently to a 1 megapixel flying camera visyal correction
Programming method	Visual camera positioning programming / Excel format file coordinate import
Input power /voltage	AC220V /50HZ (opereting power approximately 2KW/H)
Mountable components	Beads, resistors, capacitors, ICs, terminals, diodes, etc. above 0603

Advanced Vision System

Each placement head features an independent camera motor with dedicated lens/zoom components for on-the-fly alignment vision processing.

Parallel Vision Processing

All 12 placement heads simultaneously capture images and perform recognition calculations while in motion, eliminating waiting and queuing times.

True On-the-Fly Alignment

Component recognition is 100% synchronized with placement head movement. As heads move from pick-up to placement positions, built-in cameras complete component recognition, positioning, and angle calculations, achieving zero visual waiting time.

Automatic Nozzle Changing

Core technology enabling higher efficiency, intelligence, and flexibility in SMT production lines.

Production Efficiency Benefits

Fast nozzle changing within seconds without manual intervention
Continuous production supporting rapid product switching
Optimized placement cycles with automatic nozzle matching

Placement Head Configurations

8 Placement Head: Independently controlled rotation angle, 50,000 chips/hour

10 Placement Head: Independently controlled rotation angle, 60,000 chips/hour

Application Scope

Ideal for large, thick PCBs with high component density, including capacitors, resistors, inductors, fuses, terminal blocks, and large connectors. Primarily used in LED DOB lighting, LED drivers, and industrial control board production.
