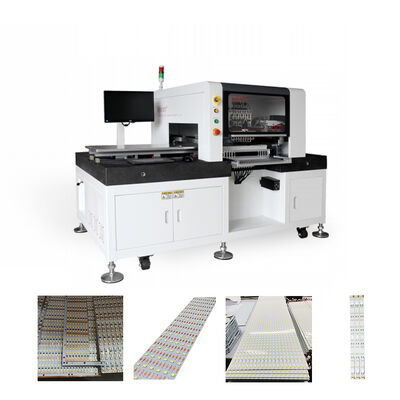

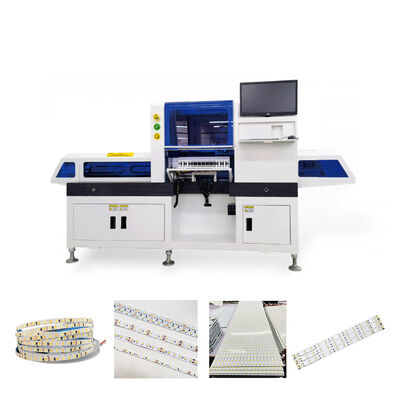

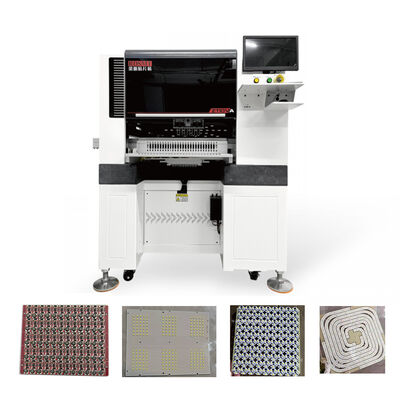

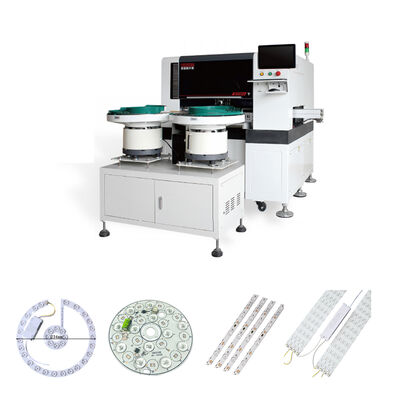

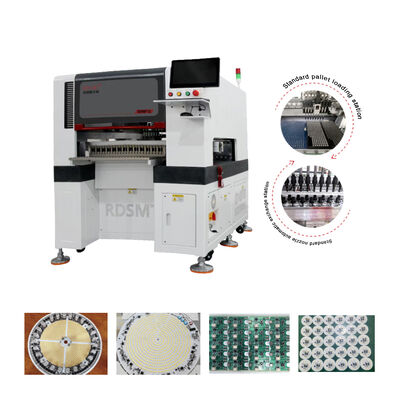

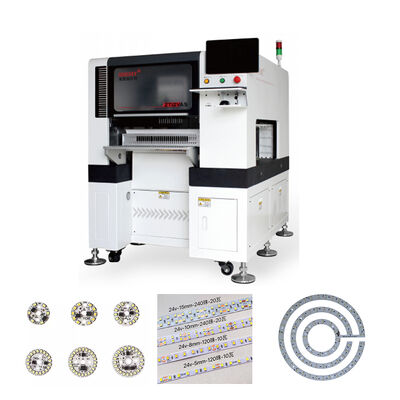

High Speed 70000CPH 12 Spindles Pick and Place Machine with Independent Camera Motor for SMT LED Assembly

Brand Name:	RD
MOQ:	1
Price:	$21,300

Detail Information

Product Description

Detail Information

Place of Origin:

China

Machine Type:

Pick And Place Machine

Application:

SMT LED Assembly Line

Product Name:

Pick And Place Machine

Type:

Semi Automatic

Name:

Linear LED Light Source Pick And Place Machine

Marketing Type:

Pick And Place Machine For Pcb Assembly

Usage:

SMT Production Assembly Line

Highlight:

70000CPH Placement Speed Pick and Place Machine

12 Spindles SMT Machine

Independent Camera Motor LED Placement Machine

Product Description

Automatic SMT Line Machine - High Speed Precision 8/10/12 Head

Advanced surface mount technology machine designed for linear LED light source board assembly production with exceptional speed and precision.

Machine Features

Japanese original grinding screw for long service life, low wear, and strong stability
Dual motor electronic feeder with built-in vacuum pump - no external air source required
Each mounting head independently controls rotation angle for higher mounting efficiency
Each nozzle features independent 1 megapixel flying camera for visual correction
1500mm platform allows PCB boards within 500mm to be recycled without shutdown

Product Parameters

Model No	RD-ZT6V	RD-ZT8V	RD-ZT10V	RD-ZT12V
Number of mounting heads	6 heads	8 heads	10 heads	12 heads
Feeder Station	23 stations	27 stations	30 stations	30 stations
Optimal placement speed	40000 chips/h	50000 chips/h	60000 chips/h	70000 chips/h
Machine weight	Approximately 950KG	Approximately 1600KG
External dimensions	2000mm long × 1300mm wide × 1450mm high
Height of Attachable Components	<8mm
Maximum mounting plate size	1500mm length × 420mm width / customizable to 1500mm length × 600mm width
Substrate transfer method	Platform style manual replacement of PCB board
Machine System	Independently developed operating system
Positioning method	Visual automatic MARK points
Correction of suction error by flying swatter	Each nozzle corresponds independently to a 1 megapixel flying camera for visual correction
Programming method	Visual camera positioning programming / Excel format file coordinate import
Input power voltage	AC220V/50HZ (operating power approximately 2KWH)
Mountable components	Beads, resistors, capacitors, ICs, terminals, diodes, etc. above 0603

Advanced Vision System Technology

Each placement head is equipped with an independent camera motor and lens/zoom component in the "on-the-fly alignment" vision system. This revolutionary hardware parallelization design solves the fundamental contradiction between efficiency and precision that cannot be resolved at the software level.

Parallel Vision Processing: The most significant advantage - all placement heads can simultaneously and independently capture images and perform recognition calculations while in motion. No waiting, no queuing.

True "On-the-Fly Alignment": Component recognition process is 100% synchronized with placement head movement. As the placement head moves from pick-up to PCB placement position, its built-in camera completes component recognition, positioning, and angle calculation along the way. Upon reaching the target point, placement occurs immediately, achieving "zero" visual waiting time.

Placement Head Configurations

8 Placement Head: Independently controlled rotation angle, 50,000 chips/hour placement speed

10 Placement Head: Independently controlled rotation angle, 60,000 chips/hour placement speed

12 Placement Heads (Optional): Independently controlled rotation angle, 70,000 chips/hour placement speed

Certifications

Applications

Suitable for: Fluorescent tubes, soft light strips, flat panel lights, outdoor lights, ceiling lights, bulbs, terminals, and various electronic assemblies.

Frequently Asked Questions

Q1. This is the first time I use this kind of machine, is it easy to operate?

A: Comprehensive English manual and guide video provided. We can also provide engineers for factory installation training. Additional support available via email, Skype, phone, or online service.

Q2: Do you offer guarantee for the products?

A: Yes, we offer 1-year warranty and lifetime after-sales support.

Q3. If machine have any problem after I receive it, how can I do?

A: Free parts provided during warranty period. Parts under 0.5KG include free postage; parts over 0.5KG require customer to pay postage.

Q4. How to proceed an order for SMT Loader machine?

A: 1. Share your requirements or application needs. 2. We provide quotation based on requirements. 3. Customer confirms details and places deposit. 4. We arrange production.

Q5. MOQ?

A: Minimum order quantity is 1 set. Mixed orders are welcome.

Q6. How do you ship the goods and how long does it take to arrive?

A: Shipping by Sea, CIF, DDP. Delivery time: 25-35 days.

Q7. What about the lead time?

A: Stock availability: 3-7 days. Mass production: 15-25 working days.

Q8. What is your payment method?

A: 30% advance TT payment, 70% TT payment when goods are ready for shipment.
