Automatic Water-based Industrial PCBA Cleaning Machine for Solder Flux Removal

Brand Name:	HXT
MOQ:	1
Price:	$23,000-23,500

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Weight:

600 KG

Voltage:

380 V

Model:

EMS-5600

Cleaning Basket Size:

L610 X W560 X H100(mm)x2 Layers

Liquid Tank Capacity:

60L

Concentrate Liquid Tank Capacity:

30L

Temporary Tank Capacity:

18L

Clean Time:

10~20min(0~99min Adjustable)

Rinse Time:

1~3min/times（0~10min Adjustable）

Hot Air Dry Time:

15~30min（0~60min Adjustable）

Rinse Times:

3~5times（1~59 Times Adjustable）

Cleaning Liquid Temp:

Room Temp~75℃

Rinse DI Water Temp:

Room Temp~75℃

Hot Air Dry Temp:

Room Temp~99℃

Machine Size:

L1300xW1200xH1850（mm）

Highlight:

Automatic PCBA Cleaning Machine

Water-based PCB Washing Machine

Industrial PCB Flux Removal Machine

Product Description

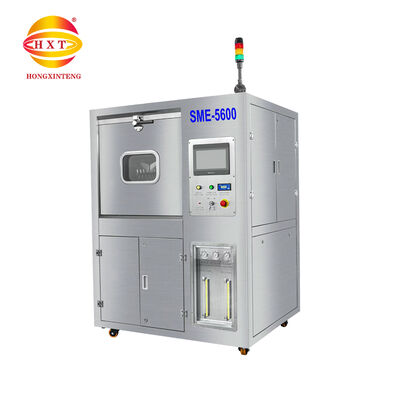

Automatic Offline PCBA Cleaning Machine SME-5600

Industrial PCB Flux Removal Water Based Batch Washer

Product Overview

The SME-5600 is an energy-saving, environmentally protective, integrated high-end cleaning machine that automatically completes cleaning, rinsing, and drying processes in one chamber with simple push-button operation.

Key Applications

Ideal for cleaning various PCBA types including Car electronics, Military, Aerospace, Telecom, Medical devices, and Digital meters. Effectively removes Rosin flux, No-clean flux, Water-soluble flux, Solder paste ball, and other organic/inorganic contaminants from SMT and THT PCBA.

Technical Specifications

Parameter	Specification

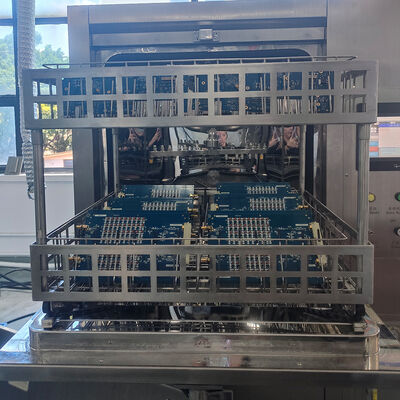

Cleaning basket	L610 x W560 x H100(mm) x 2 layers
Liquid tank capacity	60L
Concentrate liquid tank capacity	30L
Temporary tank capacity	18L
Clean time	10~20min (0~99min adjustable)
Rinse time	1~3min/times (0~10min adjustable)
Hot air dry time	15~30min (0~60min adjustable)
Rinse times	3~5times (1~59 times adjustable)
Cleaning liquid temp	Room temp~75℃
Rinse DI water temp	Room temp~75℃
Hot air dry temp	Room temp~99℃
Power/air supply	AC380V,50/60HZ,65A /0.5~0.7Mpa,200~400L/Min
Machine size	L1300xW1200xH1850(mm)
Machine weight	600KG

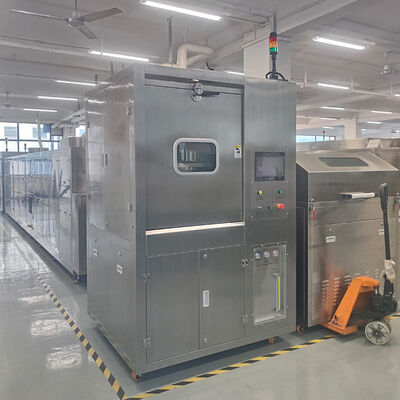

Machine Details

Workflow Process

Key Features

Visible cleaning process through front window with LED lighting
Automatic operation: complete clean, rinse, and dry in one compact machine
Scientific nozzle design with left/right incremental arrangement for enhanced efficiency
Adjustable nozzle pressure to prevent component damage
Dilution tank heating system improves cleaning efficiency
Comprehensive cleaning system for various flux types and contaminants
Flexible dilution addition: manual or automatic ratio setting (5-25%)
Temporary tank with auxiliary heating system for efficient liquid management
Lower operating costs with built-in filtration and compressed air blow system
Concentration liquid compensation function maintains cleaning effectiveness

Same Series Products

Frequently Asked Questions

Is the machine easy to operate for first-time users?

An English manual and guide video are provided. Additional support is available via email, Skype, phone, or online service.

What if the machine has problems after delivery?

Free replacement parts are provided during warranty. For parts under 0.5KG, we cover postage; over 0.5KG requires customer postage payment.

What is the minimum order quantity?

1 set minimum, with mixed orders accepted.

How do I purchase this machine?

Process: 1) Product consultation 2) Price/shipping negotiation 3) Proforma invoice 4) Payment 5) Order preparation 6) Quality check 7) Shipping by air/sea.

Why choose our products?

We are an experienced manufacturer with over 10 years in the industry, providing high-quality machines with on-time delivery and 24-hour after-sales support.
