SMT Loader Unloader Machine
>
Automatic SMT PCB Loader Unloader Machine With PLC Control for LED Production Line Assembly
All Category

Pick And Place Machine

Reflow Oven

SMT AOI Machine

SMT Solder Paste Printing Machine

SMT SPI Machine

SMT Machine Line

Automatic Insertion Machine

Wave Soldering Machine

SMT Loader Unloader Machine

SMT Conveyor

Glue Dispensing Machine

Conformal Coating Machine

Curing Oven Machine

PCB Cutting Machine

Electronics Production Machinery

PCB Machine
Contact Us
Miss. Alina
alina@hxt-smt.com
+86 16620793861
wechat +86 16620793861
Contact Now

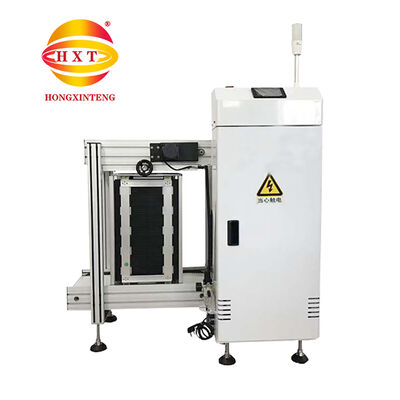

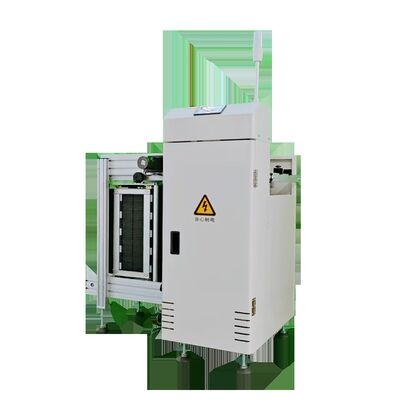

Automatic SMT PCB Loader Unloader Machine With PLC Control for LED Production Line Assembly

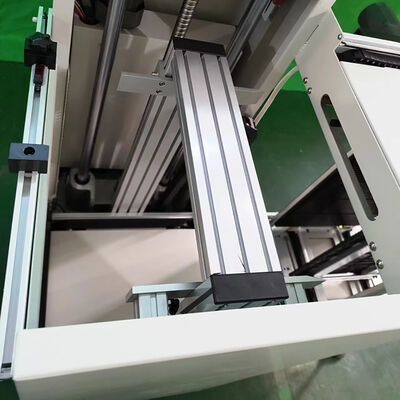

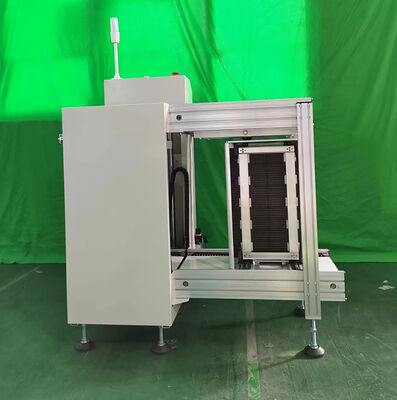

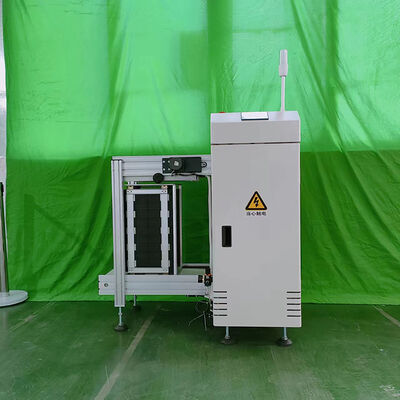

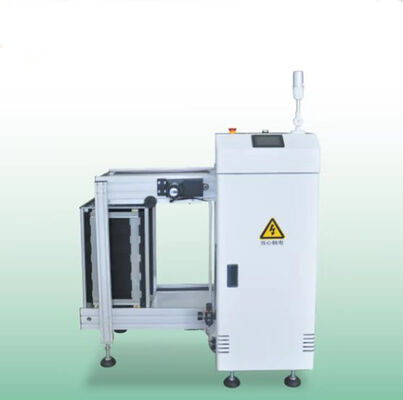

  • name
  • name
  • name
  • name
  • name
  • name

Automatic SMT PCB Loader Unloader Machine With PLC Control for LED Production Line Assembly

Brand Name: HXT
MOQ: 1
Price: $1,500
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Weight:
180 KG
Machine Type:
Magazine Loader Machine
PCB Board Size:
350*(50-250) MM, 460*(50-330) MM, 510*(50-390) MM
Body Size:
1150 X 800 X 1300mm, 1550 X 800 X 1300mm, 1650 X 870 X 1300mm
Product Name:
PCB Magazine Loader Machine
Usage:
SMT PCBA Production Assembly Line
Highlight:

Industrial PCB Loader and Unloader

,

High Precision SMT PCB Magazine Loader

,

L Shaped Design PCB Magazine Loader Machine

Product Description

High Speed Dual Rail PCB Magazine Loader Unloader Machine With Adjustable Width SMT Equipment
Fully Automatic PCB Destacker Magazine Loader Buffer Machine For SMT Production Line Assembly
New Arrival Automatic PCB Suction Loader Unloader Machine With Motor Gear Core Components
High Efficiency SMT PCB NG OK Unloader Machine For PCBA Assembly Line With CE Certification
Auto PCB Magazine Rack Loader And Unloader Machine L Shaped Design For Electronics Machinery
Mini Automatic SMT PCB Loader Unloader Equipment With PLC Central Control High Precision
Industrial PCB Loading Unloading Conveyor Machine For SMT Pick And Place Production Line
Professional Automatic PCB Stacker Unstacker Machine Hot Sale For Manufacturing Plant
Advanced SMT Assembly Line PCB Loader Unloader With Cover For Variant Production Application



Description

Automatic PCB Magazine Rack Loader And Unloader Machine L Shaped Design For Electronics Machinery Mini Automatic SMT PCB Loader Unloader Equipment With PLC Central Control High Precision Industrial PCB Loading Unloading Conveyor Machine For SMT Pick And Place Production Line Professional Automatic PCB Stacker Unstacker Machine Hot Sale For Manufacturing Plant Advanced SMT Assembly Line PCB Loader Unloader With Cover For Variant Production Application


Equipment Overview:

● Appearance structure: sheet metal structure and aluminum profile into the frame, the surface is sprayed, and the color is white.
● Microcomputer PLC control system, stable and reliable.
● Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.
● Multiple sound and light and touch screen alarm function.
● The lifting step of the rack can be set according to the thickness of the PCB.
● With automatic counting function, it is convenient for production statistics.
● Humanized design ensures that the PCB board will not be broken, improving output capacity.

 Automatic SMT PCB Loader Unloader Machine With PLC Control for LED Production Line Assembly 0

Product Specification


Sr. No. Product information
1 Device model 250 330 390
2 Applicable frame size 355*320*563mm 460*400*563mm 535*460*570mm
3 PCB board size (MM) 350* (50-250) 460* (50-330) 510 (50-390)
4 PCB thickness 0.6-3.0mm 0.6-3.0mm 0.6-3.0mm
5 Number of storage boards 50PCS 50PCS 50PCS
6 Teleport height 900±20mm 900±20mm 900±20mm
7 Delivery weight 60~200og 60~200og 60~200og
8 Body size L*W*H (MM) 1150*800*1300 1550*800*1300 1650*870*1300
9 Body weight 180KG 200KG 250KG
Control System
10 Power supply Single phase 220V Single phase 220V Single phase 220V
11 Starting power/no-load power 105W 105W 205W
12 Lifting step 10, 20, 30, 40, 50 (mm)
can be set arbitrarily
13 Compressed air 5-6KG 5-6KG 5-6KG
14 Fixed side Front fixation (rear fixation can be customized)
15 Transmission direction Left to right (can be customized right to left)
16 Step selection 1~5 steps (10 mm step distance)
17 With stand voltage AC terminal to ground 1500VAC, 1 minute
18 Use environment Environment free of corrosive gas and dust
19 Anti-jamming Voltage noise: 1000Vp-p, wave width 1us, 1 minute
20 PLC Siemens (dedicated controller)
21 Touch screen Samkoon4.3# smart touch screen
22 Transfer speed 10S/PCS

Accessories Brand
23 Control module SIEMENS PLC
24 Transport motor Chinese University of Taiwan
25 Lifting stepper motor Chinese University of Taiwan
26 The electromagnetic valve AirTAC
27 Lifts One piece cast aluminum seat
28 Three-color light Owen LED light
29 Signal communication interface Online Connection (Standard SMEMA)
30 Sensor OMRON


Applications

For use in SMT PCBA assembling production line.
