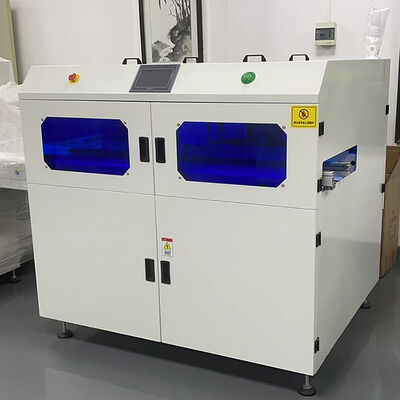

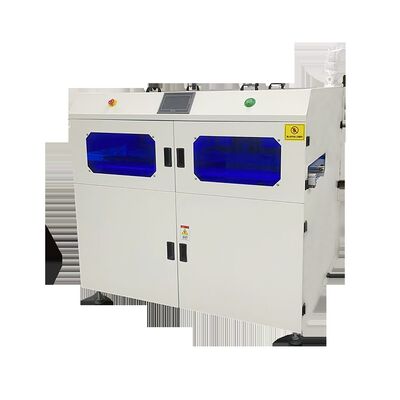

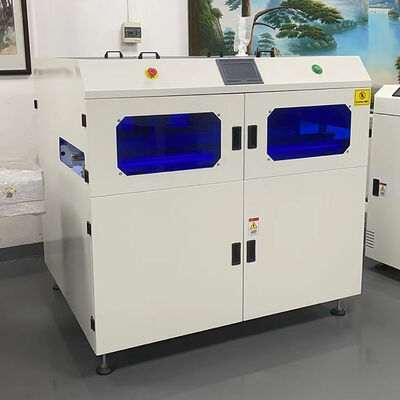

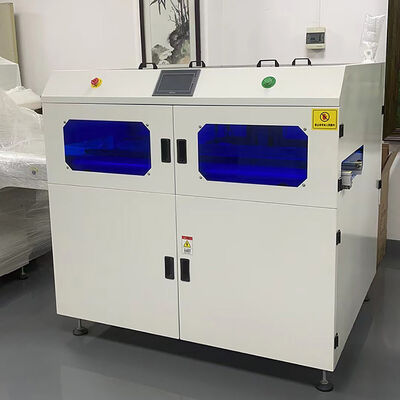

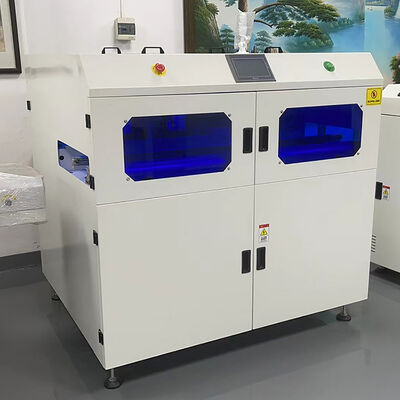

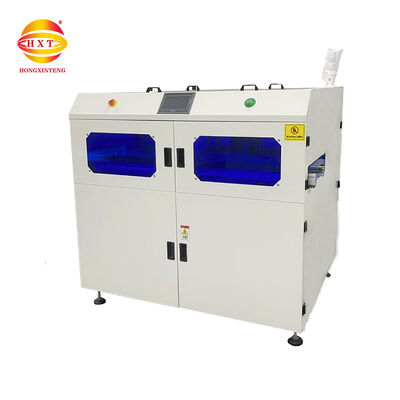

Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling
  • name
  • name
  • name
  • name
  • name
  • name

Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling

Brand Name: HXT
MOQ: 1
Price: $1,400
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Weight:
150 KG
Voltage:
220 V
Model:
HXT-V1200
Dimensions:
L1300 X W960 X H1650
Board Size:
50 X 50mm / 1200 X 300mm
Transmission Speed:
9M/min
Power Supply:
AC220V/50-60HZ
Transmission Motor:
42*48 Stepper Motor
Lift Motor:
45W Brake Motor
Control System:
PLC Control
Control Panel:
Touch Screen
Gas Source:
0.4-0.6Mpa
Translation Device:
Stepping Motor And Guide Rail
Suction Device:
Four-point Suction Plate
Frame Material:
3.0mm Cold Plate
Highlight:

1 Year Warranty PCB Loader and Unloader

,

SMEMA Signal SMT PCB Vacuum Suction Loader

,

Magazine Type PCB Magazine Loader

Product Description
Automatic SMT PCB Vacuum Suction Loader Unloader Machine Magazine Type With SMEMA Signal for Production Line Assembly
SMT PCB Vacuum Loader Magazine
High Efficiency SMT PCB Vacuum Loader Magazine Type Automatic Machine with sensors for LED assembly production line. This automatic SMT PCB vacuum suction loader/unloader system features mini magazine type with SMEMA signal for manufacturing line. The translational suction equipment is designed for electronics assembly production.
Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 0 Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 1 Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 2 Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 3
Key Features
  • Closed design ensures maximum safety protection
  • Top safety cover opens for easy maintenance access
  • Adjustable suction nozzle position for secure PCB clamping
  • Stable width adjustment device with manual screw control
  • Compact footprint for space-efficient installation
  • PLC control system with touch screen interface and automatic alarm
  • Sheet metal welded frame with painted surface and color HMI window
  • Brake motor lifting mechanism with adjustable step distance
  • Can stack up to 300 PCBs (0.6mm thickness)
  • Stepping motor transfer with acceleration/deceleration settings
  • Standard SMEMA signal port for online connection with other equipment
Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 4 Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 5
Technical Specifications
Model HXT-V400 HXT-V450 HXT-V1200
Dimensions (LxWxH) L590 x W960 x H1650 L680 x W1250 x H1650 L1300 x W960 x H1650
Board size (LxW) 50 x 50mm / 330 x 300mm 50 x 50mm / 450 x 450mm 50 x 50mm / 1200 x 300mm
Weight About 100Kg About 120Kg About 150Kg
PCB storage quantity About 300pcs
Transmission direction Track front fixed, left->right or right->left
Transport height 900+30/-30mm, foot cup height adjustment
Power supply AC220V/50-60HZ
Control System PLC control, electric sensor induction start
Lifts Imported ball screw lifting, sheet metal thickening integrated lifting platform
Translation device Stepping motor and guide rail movement
Frame material All sheet metal 3.0mm cold plate welding, surface electrostatically sprayed
Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 6 Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 7 Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 8 Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 9 Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling 10
