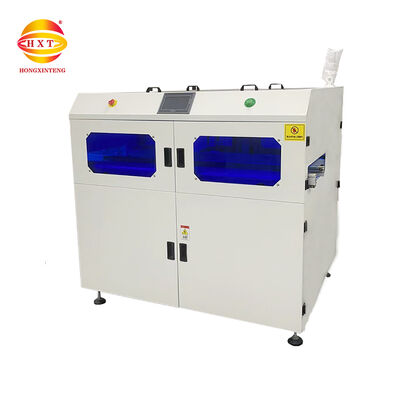

Automatic SMT PCB Vacuum Suction Loader Unloader Machine Magazine Type With SMEMA Signal for Production Line Assembly
  • name
  • name
  • name
  • name
  • name
  • name

Automatic SMT PCB Vacuum Suction Loader Unloader Machine Magazine Type With SMEMA Signal for Production Line Assembly

Brand Name: HXT
MOQ: 1
Price: $1,400
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Product Name:
SMT PCB Vacuum Suction Loader
Application:
SMT PCB Assembly Production Line
Type:
Automatic
Usage:
PCBA Production Line
Board Size:
50 X 50mm / 1200 X 300mm
Brand:
HXT
Highlight:

1 Year Warranty PCB Loader and Unloader

,

SMEMA Signal SMT PCB Vacuum Suction Loader

,

Magazine Type PCB Magazine Loader

Product Description
Automatic PCB Magazine Loader Unloader Vacuum Suction Machine SMT Production Line Bare Board Handling Equipment System
Automatic SMT PCB Vacuum Loader Unloader Machine Translational Suction System With SMEMA For Production Line Equipment
Professional SMT PCB Vacuum Suction Loader Magazine Type Automatic Machine With One Year Warranty For Assembly Line
Automatic SMT Vacuum Suction PCB Loader Unloader Machine Bare Board Handling Equipment For Electronics Production Line
High Efficiency SMT PCB Vacuum Loader Magazine Type Automatic Machine With Sensors For LED Assembly Production Line
Automatic SMT PCB Vacuum Suction Loader Unloader System Mini Magazine Type With SMEMA Signal For Manufacturing Line
SMT Automatic PCB Vacuum Loader Unloader Machine Translational Suction Equipment For Electronics Assembly Production
Automatic SMT Magazine Loader Unloader Vacuum Suction PCB Machine With Sensor Protection For Production Line System
SMT PCB Vacuum Loader Magazine
High Efficiency SMT PCB Vacuum Loader Magazine Type Automatic Machine With Sensors For LED Assembly Production Line Automatic SMT PCB Vacuum Suction Loader Unloader System Mini Magazine Type With SMEMA Signal For Manufacturing Line SMT Automatic PCB Vacuum Loader Unloader Machine Translational Suction Equipment For Electronics Assembly Production Automatic SMT Magazine Loader Unloader Vacuum Suction PCB Machine With Sensor Protection For Production Line System

Key Features
  • Closed design ensures maximum safety protection
  • Top safety cover opens for easy maintenance access
  • Adjustable suction nozzle position for secure PCB clamping
  • Stable width adjustment device with manual screw control
  • Compact footprint for space-efficient installation
  • PLC control system with touch screen interface and automatic alarm
  • Sheet metal welded frame with painted surface and color HMI window
  • Brake motor lifting mechanism with adjustable step distance
  • Can stack up to 300 PCBs (0.6mm thickness)
  • Stepping motor transfer with acceleration/deceleration settings
  • Standard SMEMA signal port for online connection with other equipment
Automatic SMT PCB Vacuum Suction Loader Unloader Machine Magazine Type With SMEMA Signal for Production Line Assembly 0
Technical Specifications
Model HXT-V400 HXT-V450 HXT-V1200
Dimensions L590 x W960 x H1650mm L680 x W1250 x H1650mm L1300 x W960 x H1650mm
Board size (LxW) 50 x 50mm / 330 x 300mm 50 x 50mm / 450 x 450mm 50 x 50mm / 1200 x 300mm
Weight About 100Kg About 120Kg About 150Kg
PCB storage quantity About 300pcs
Transmission direction
Track front fixed, left->right or right->left
Transport height 900+30/-30mm, foot cup height adjustment
Power supply AC220V/50-60HZ
Control System PLC control, electric sensor induction start
Lifts Imported ball screw lifting, sheet metal thickening integrated lifting platform
Translation device Stepping motor and guide rail movement
Frame material All sheet metal 3.0mm cold plate welding, surface electrostatically sprayed


Applications:

For SMT PCB board production assembling full line machines.

Automatic SMT PCB Vacuum Suction Loader Unloader Machine Magazine Type With SMEMA Signal for Production Line Assembly 1

Tags:

pcb magazine unloader

smt magazine loader

Automatic PCB Loader
