Selective Wave Soldering Machine SEL-31EMD On-line Selective Soldering Machine Lead Free DIP Selective Wave Soldering
  • name
  • name
  • name
  • name
  • name
  • name

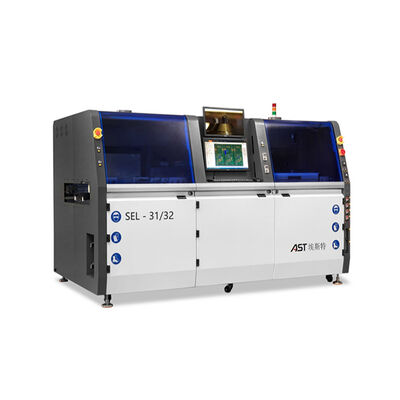

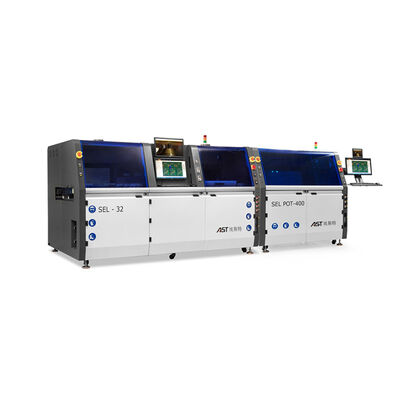

Selective Wave Soldering Machine SEL-31EMD On-line Selective Soldering Machine Lead Free DIP Selective Wave Soldering

MOQ: 1
Price: $29,400
Detail Information
Product Description
Detail Information
Product Name:
Fully Automatic Selective Wave Soldering
Machine Type:
Wave Soldering Equipment
Application:
SMT PCB Assembly Production Line
Type:
Automatic
Function:
Soldering Components PCB
Dimensions:
2850x1650x1650mm
Body Weight:
1500kg
Highlight:

350mm PCB Size Wave Soldering Machine

,

1 Year Warranty Selective Wave Soldering Machine

,

18kw Power DIP Machine

Product Description
Lead Free Selective Wave Soldering Machine Full Automatic DIP Machine Flux Spray System

High Precision Robotic Selective Soldering Machine - Ideal for Mixed SMD/THT Boards, Low Thermal Stress
CNC Automatic Selective Wave Soldering System with Nitrogen & Touch Screen, for Automotive Electronics
Selective Wave Soldering Machine for PCB Connectors, LED Modules, and Power Components





Product details

An Automatic Selective Wave Soldering Machine is a precision soldering system that applies molten solder only to specific, pre-defined through-hole areas on a PCB, unlike traditional wave soldering that floods the entire board bottom. It combines the programmable accuracy of robotics with wave soldering technology, using a miniature solder wave nozzle that moves precisely under the board to solder selected components while leaving sensitive SMD parts untouched.

Selective Wave Soldering Machine SEL-31EMD On-line Selective Soldering Machine Lead Free DIP Selective Wave Soldering 0

Product Specification

Model SEL-31
Machine size L2860mm X W1650mm X H1650mm
General power 25kw
Consumption power 7--10kw
Power supply Three-phase five-wire system 380V 50HZ
Net weight 1600KG
Required air source 0.4-0.6MPa
Required air flow 8-12L/min
Required N2 pressure 0.4-0.6MPa
Required N2 flow More than 2 cubic meters per hour
Required N2 purity >99.998%
Required exhausting 300--450CMB/H
PCB max size L508 X W460MM
PCB thickness 0.2mm-----6mm
PCB edge 5mm
Controlling PLC + controller
Conveyor width 100-600MM
Conveyor type Spray and preheating chain conveyor, solder section roller conveyor；
Conveyor direction From left to right；(Optional: R→L)
PCB conveyor up clearance 120MM
PCB conveyor bottom clearance 60MM
Conveyor load 10kg
Conveyor rail Aluminum rail
Conveyor height 900±30mm
Motion axis X, Y, Z
Motion control Servo control
Motion motor Panasonic servo motor
Movement way Ball screw + slide rail
Position accuracy ±0.05 mm


Applications:

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.

Automatic Selective Wave Soldering Machines are essential for complex, mixed-technology PCB assembly where traditional wave soldering is not suitable. Their primary application is soldering through-hole components on boards already densely populated with bottom-side SMDs, as the precise, miniaturized wave targets only selected areas without affecting surrounding parts.

Tags:

selective solder machine

flow solder machine
