Electronics Production Machinery DOB Automatic Smd LED Making Chip Mounter Assembly Pcb Smt Pick and Place HXT Machine

Brand Name: HCT
MOQ: 1
Price: $2,700
Detail Information
Product Description
Detail Information
Place of Origin:
China
Machine Type:
SMT Full Line Pick And Place Machine
Product Name:
Pick And Place Machine
Application:
SMT PCB Assembly Production Line
Usage:
LED PCB Board Production Line
Name:
SMT LED Chip Mounter
Max Placement Speed:
55000 CPH
Highlight:

55000 CPH Pick and Place Machine

,

26 Feeders SMT Machine

,

600x500mm PCB Assembly Machine

Product Description

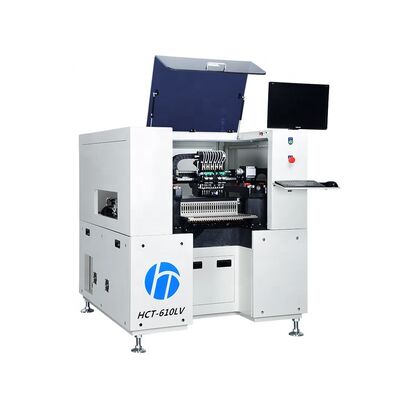

Electronics Production Machinery DOB Automatic Smd LED Making Chip Mounter Assembly Pcb Smt Pick and Place HXT Machine 10 head HCT-610LV Pick And Place Machine Electronic industrial machinery
Drive, household motor, automobile motherboard production pick and place machine
Street Light Drive Manufacturing 10 head Pick And Place Machine
HCT-610LV Pick And Place Machine For Led lighting Drive
Description
An LED-specific chip mounter is not just a standard SMT machine, it's a specialized tool engineered for the unique challenges of LED assembly handling large components on MCPCBs, managing thermal interface materials, and achieving optical alignment precision. The right machine selection directly impacts product quality, thermal performance, and production efficiency in the competitive LED manufacturing industry.

Electronics Production Machinery DOB Automatic Smd LED Making Chip Mounter Assembly Pcb Smt Pick and Place HXT Machine 0
Technical Specifications
Model HCT-610LV
SMD range 600 long x 500 wide mm
Maximum placement speed 55000 points/hour
Time required for a component 0.065s/chip
Image recognition accuracy ±0.0 3mm
Mechanical precision ±0.03mm
Component range 0603～5050～7474, high-power LED components
Power supply 220V, 50Hz
Compressed air 0.55Mpa
Feeder Quantity Standard 12MM electric feeder can hold 26
Placement head 10 heads
Programmatically Vision correction
Component identification Flying camera
Vacuum system Vacuum pump
PCB board fixing method Online track
PC Windows 7/XP (equipment includes computer, industrial computer)
Machine size 1230(L)×1530(W)×1360(H)mm
Product weight About 1600KG
Operation interface Full Chinese color operation interface
(English operation interface can be switched)
Software Features

The software is independently developed and updated

permanently for free.
The software design can be changed according to the needs

of customers to meet the diverse operational needs.


Application

For production of LED PCB board manufacturing assmbling line.
