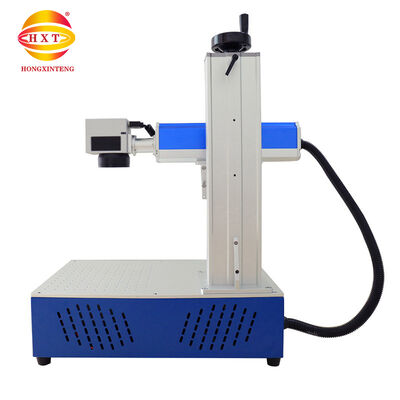

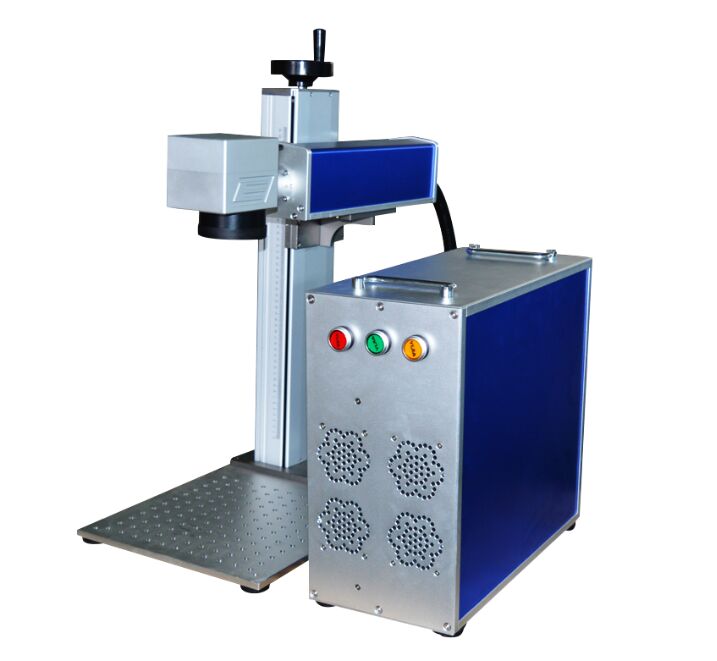

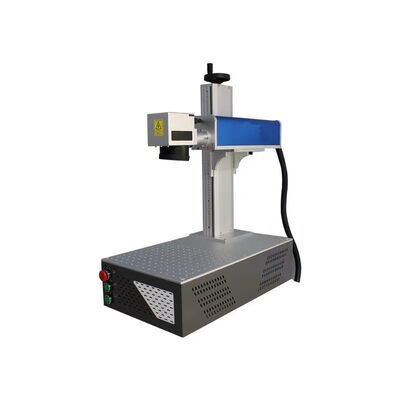

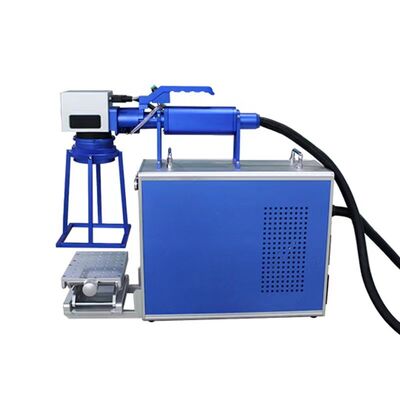

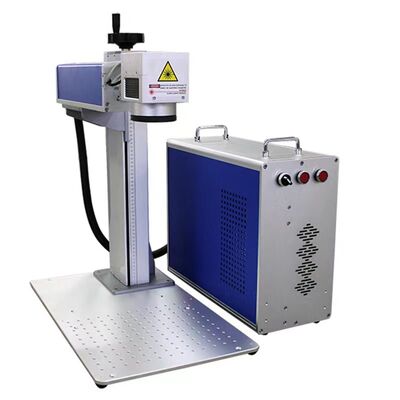

20W 30W 50W Fiber Laser Marking Machine with Rotary System and EZCAD Software for Metal Jewelry Engraving

Brand Name:	HXT
Model Number:	HXT-20w 30w 50w 70w 100w
MOQ:	1
Price:	1380
Packaging Details:	Vacuum packing plus wooden box packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Split Fiber Optic Marking Machine

Supplier:

Model Number:

20w 30w 50w 70w 100w

Function:

CO2 Laser Engraving Machine

Usage:

Fiber Laser Marking Machine 20w 30w 50w 70w 100w

Field Lens:

0/110/150/180mm Imported Wavelength Full Range Of Lens Sets

Power:

220V/50HZ 320W

Product Name:

Fiber Laser Etcher

Delivery Term:

7-15 Days

Supply Ability:

The production capacity is 30 units a month

Highlight:

20W fiber laser marking machine

metal jewelry engraving laser

EZCAD laser marking system

Product Description

Fiber Laser Marking Machine for Metal Jewelry Engraving

Industrial-grade fiber laser marking system with automatic CNC galvo technology for precision marking of barcodes, QR codes, logos, and serial numbers. Features high-speed marking, scribing, and micro-machining capabilities with automatic focus for curved surfaces and irregular shapes.

Product Overview

Fiber laser marking technology creates permanent marks on various materials through surface evaporation or chemical changes. This air-cooled fiber laser system offers compact design, excellent beam quality, and maintenance-free operation.

Equipment Structure

Sheet metal main structure with robust construction
Integrated laser marking module, galvanometer scanning system, and power supply
Rigid frame ensures stability during operation
Single-station design with manual loading/unloading

Technical Specifications

Specification	Details
Max Laser Power	20W / 30W / 50W
Laser Wavelength	1064nm
Beam Quality	<1.5M²
Repetition Frequency	10kHz-500kHz/1000kHz
Standard Marking Area	110mm * 110mm
Optional Marking Areas	150mm150mm, 200mm200mm, 300mm*300mm
Marking Depth	≤1.2mm
Linear Speed	<2000mm/s
Minimum Line Width	0.01mm
Minimum Character Size	0.15mm
Repetition Accuracy	0.001mm
Power Consumption	≤600W
Electrical Source	220V±10%/50Hz/11A
Laser Module Life	>100,000 hours
Cooling System	Air Cooling
Operating Environment	Humidity: 5-80% (non-condensing), Temperature: 1-35°C
Dimensions	8006601400mm
Weight	Approximately 75kg
Operating System	32-bit or XP system
Control Interface	USB
Supported File Formats	PLT/DXF/AI
Laser Type	Pulsed fiber laser

Industry Applications

Metalworking & Machinery Manufacturing

Marking models, specifications, brands, QR codes, and serial numbers on cutting tools, drill bits, bearings, gears, engine blocks, and stainless steel products.

Electronics & Semiconductor Industry

Precision marking on chips, resistors, capacitors, mobile phone components, PCBs, and electronic accessories.

Automotive & Aerospace

Engine numbers, VINs, component QR codes for traceability and safety compliance.

Medical Devices & Equipment

UDI marking on surgical instruments, implants, dental tools, and pharmaceutical packaging.

Plastics & Packaging

Production dates, expiration dates, batch numbers, and anti-counterfeiting codes on various packaging materials.

Jewelry & Luxury Goods

Personalized engraving on rings, bracelets, watches, pens, and gift items.

Food & Beverage

Environmentally friendly marking of production dates and traceability codes on packaging.

Additional Applications

Woodworking, leather products, ceramic items, and various other materials requiring permanent marking.
