Automatic Offline PCBA Cleaning Machine SME-5600 Industrial PCB Flux Removal Water Based Batch Washer

Brand Name:	HXT
Model Number:	SME-5600
MOQ:	1
Price:	23000USD
Packaging Details:	Vacuum packing plus wooden box packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

Solder Flux Removal

Product Name:

PCBA Cleaning Machine

Type:

Water-based Pcba Cleaning

Name:

Off Line PCB Washing Machine

Usage:

Pcba Board Cleaner

Model:

EMS-5600

Function:

Water-based Pcba Cleaning

Supply Ability:

The production capacity is 600 units a month

Highlight:

automatic DI water PCB cleaning machine

offline PCB washing machine

PCBA cleaning machine with DI water

Product Description

Professional Benchtop PCBA Cleaner Mobile Rosin Flux Remover Manual Operation Equipment
Industrial PCB Contamination Removal Machine Ionic Tester Lead Free Soldering Cleaning System
Multi Stage PCBA Washer Jet Spray Rinsing Drying Visual Inspection High Precision Cleaner
Robotic PCBA Cleaning Machine High Speed Efficient Environmentally Friendly CE ISO Certified

User Friendly Programmable PLC Controlled PCBA Washer Easy Operation Durable Reliable Equipment
Cost Effective PCB Cleaning Machine Competitive Price Hot Sale New Design Innovative Technology

Description

Automatic PCBA Cleaning Machine
SME-5600 is an energy-saving, environmental protective, integrated, high-end cleaning machine. It can automatically complete cleaning, rinsing, drying process in one

chamber by just push the start key.

SME-5600 main application: Car electronics PCBA, Military PCBA, Aerospace PCBA, Telecom PCBA, Medical device PCBA, Digital meters PCBA.

For Rosin flux, No-clean flux,Water-soluble flux , Solder paste ball and other organic and inorganic pollution materials on SMT and THT PCBA.

Key Features:

1. The whole process visible : the cleaning process can be visible through the front window and LED light.

2. Automatic cleaning mode: clean, rinse, dry process can complete in one compact machine.

3. The most scientific nozzle design: the use of left and right incremental arrangement --- to enhance cleaning efficiency,back and forth movement of basket - completely solve the cleaning blind area;

4. The nozzle pressure adjustable design: to solve the small and light PCBA in the high pressure spray under the conditions of the collision, splash problem;

5. The standard dilution tank heating system: greatly improve the cleaning efficiency. Shorten the cleaning time;

6. A comprehensive cleaning system: for SMT; THT PCBA after welding the surface of the residual rosin, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants for thorough and effective cleaning;

7. Convenient cleaning dilution to add: can be manually added, but also by setting the ratio (5% to 25%) automatically with DI water and chemical liquid (option).

8. Temporary tank and auxiliary heating system: Temporary tank is used to store dilution and DI water.

During cleaning process, the air pump absorb dilution form dilution tan and send to temporary tank ,then wash pump absorb dilution from temporary tank to clean PCBA. After cleaning process, the air pump absorb dilution from temporary tank and send them back to dilution tank.

During rinsing process, the air pump absorb DI water from DI water produce machine and send it to temporary tank, each time after rinsing ,DI water will be discharged form temporary tank. The rinse water can be heated as needed;

9. Lower operating costs: built-in filter makes the dilution repeated used. By using compressed air blow method at the end of cleaning process : blow the residual detergent off from pipeline and the pump , which effectively save 50% dilution.

10. The concentration lqiuid compensation function: the concentration of dilution will be getting lower and lower after repeated use which will affect the cleaning effect and cleaning efficiency of PCBA, at this time , need to add some concentrated liquid to dilution tank to compensate the dilution concentration. concentration compensation can improve the effective use of liquid, the concentration liquid adding amount can be adjustable according to the real situation.

Product Specification

Sr. No.	ITEM	SME-5600 SPEC
1	Retangle Cleaning basket	L610 x W560 x H100(mm)x2 layers
2	Liquid tank capacity	60L
3	Concerntrate liquid tank capacity	30L
4	Temporary tank capacity	18L
5	Clean time	10~20min(0~99min adjustable)
6	Rinse time	1~3min/times(0~10min adjustanble)
7	Hot air dry time	15~30min(0~60min adjustable)
8	Rinse times	3~5times(1~59 times adjustable)
9	Cleaning liquid temp	room temp~75℃
10	Rinse DI water temp	room temp~75℃
11	Hot air dry temp	room temp~99℃
12	Liquid tank heater power	9KW
13	Temporary tank heater power	6KW
14	Hot air heater power	7.5KW
15	Resistivity range	0~18MΩ
16	Electric pump	4.0KW
17	Air pump	1 Inch
18	Liquid Spray pressure	0~5kgf/cm2
19	Liquid filter	0.2um
20	DI water filter	0.2um
21	Air vent size	φ100XH30(mm)
22	Power/air supply	AC380V,50/60HZ,65A /0.5~0.7Mpa,200~400L/Min
23	Machine size	L1300 x W1200 x H1850mm
24	Machine weight	600KG

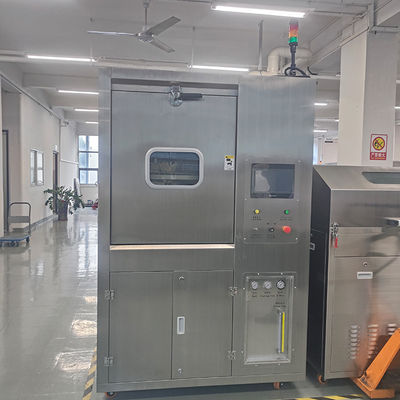

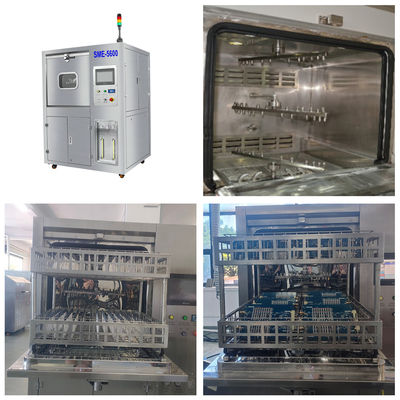

Machine details pictures

Automatic Offline PCBA Cleaning Machine SME-5600 Industrial PCB Flux Removal Water Based Batch Washer 1

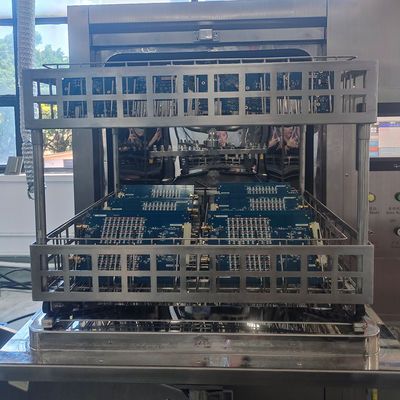

Workflow

Automatic Offline PCBA Cleaning Machine SME-5600 Industrial PCB Flux Removal Water Based Batch Washer 2

Automatic Offline PCBA Cleaning Machine SME-5600 Industrial PCB Flux Removal Water Based Batch Washer 3

Application

Automatic Offline PCBA Cleaning Machine SME-5600 Industrial PCB Flux Removal Water Based Batch Washer 4

Car electronics PCBA, Military PCBA, Aerospace PCBA, Telecom PCBA, Medical device PCBA, Digital meters PCBA.

For Rosin flux, No-clean flux,Water-soluble flux , Solder paste ball and other organic and inorganic pollution materials on SMT and THT PCBA.
