Automatic 4-Axis PCB Punching Machine Robot Arm with CCD Vision for Loading & Unloading

Brand Name:	MD
Model Number:	MDC-650
MOQ:	1 pcs
Price:	24600USD
Packaging Details:	Wodden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Repeat Positioning Accuracy:

±0.02 Mm

Punching Accuracy:

± 0.008 Mm To ±0.015 Mm

Etching Accuracy:

0.078mm

Device Size:

L 1985mm*W1475mm*H1900mm

Maximum Board Size:

620mm*530mm

Print Speed:

8-11 Pcs/min

Supply Ability:

1000 pcs per month

Highlight:

Automatic PCB Punching Machine

4-Axis PCB Punching Machine Robot Arm

Product Description

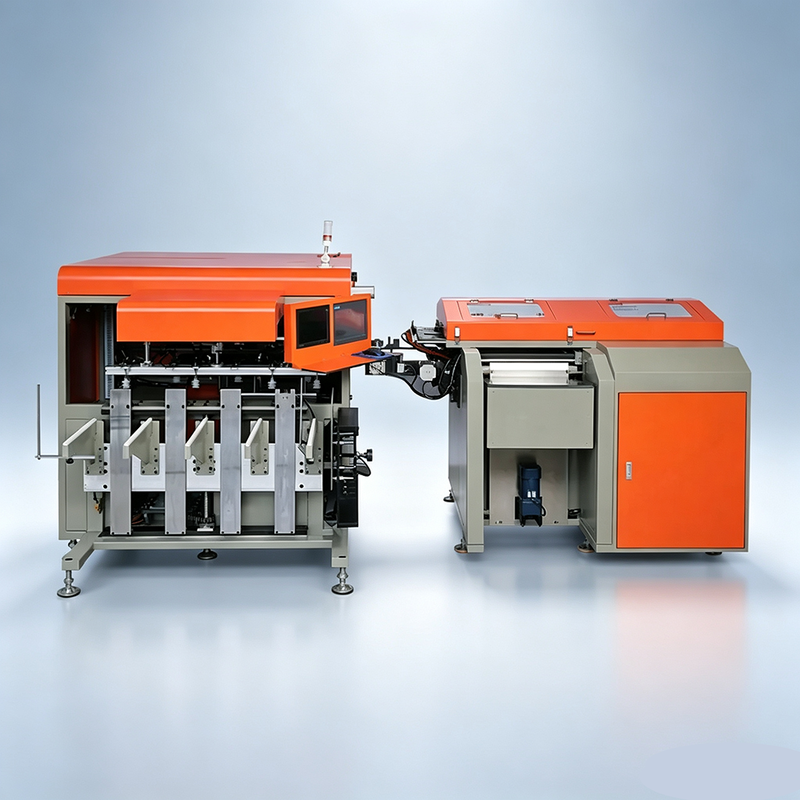

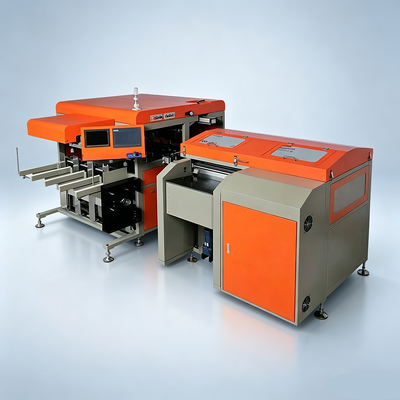

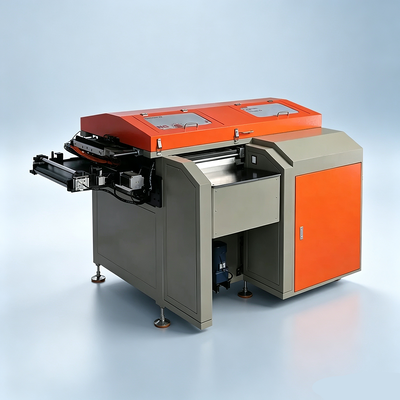

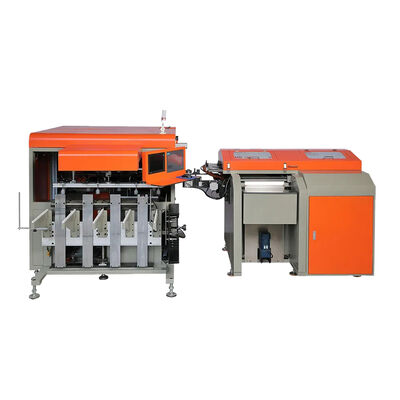

Automatic 4-Axis PCB Punching Machine Robot Arm with CCD Vision for Loading & Unloading

High-Speed Servo-Driven PCB Punching Manipulator for Circuit Board Depaneling & Drilling

Factory Direct 6-Axis Industrial Robot Arm for PCB Stamping Press with Auto Feeding System

Product Overview

Our Automatic PCB Punching Machine Robot Arm is a high-performance automated loading and unloading solution designed specifically for PCB punching, stamping, and depaneling production lines. Combining advanced CCD vision positioning technology with precision servo-driven multi-axis motion control, this robotic arm system delivers seamless, high-speed material handling that dramatically boosts production efficiency while reducing labor costs.
Available in two configurations — MDC-650 and MDC-1250 — to match different board size requirements, our robot arm integrates flawlessly with PCB punching presses, providing fully automatic feeding, positioning, and receiving capabilities. Built for 24/7 continuous operation, it is the ideal automation upgrade for modern PCB manufacturing facilities.

Key Features & Advantages

Multi-Axis Servo-Driven Precision — Smooth, Fast, Accurate

4-axis / 6-axis robotic arm configuration with imported high-performance servo motors
Professional motion controller ensures high-speed, precise, and stable operation
Continuous 24-hour uninterrupted operation capability
Vacuum suction gripper with customizable suction cup size and density for various PCB sizes and weights

CCD Vision Positioning — Automatic Alignment Every Time

High-resolution CCD camera system with automatic reference point capture
Real-time visual alignment automatically adjusts and captures targets
Offset error controlled within ±0.2mm for consistent positioning accuracy
Eliminates manual alignment errors and ensures perfect punching registration

High-Speed Automatic Loading & Unloading — Maximize Throughput

Fully automatic feeder with automatic receiving rack — one operator can manage multiple machines simultaneously
Punching speed up to 900–1,000 boards per hour (MDC-650 model)
Feeding cycle rate exceeding 15 cycles per minute
Continuous strip punching: 2–6 pieces (MDC-650) / 2–10 pieces (MDC-1250) with consistent spacing

PLC Control System — Intuitive & Easy to Operate

Industrial-grade PLC control system with user-friendly HMI touchscreen interface
Open programmable technology with translation-style motion setting
Customizable displacement data and production parameters
Quick recipe setup and save/recall function for different board types

Integrated Production Line — Complete Automation Solution

Three-module configuration: Board Delivery Host + Receiving Board Host + Circuit Board Oven
Seamless integration with PCB punching presses and stamping machines
Compatible with FR4, aluminum PCB, CEM-1, CEM-3, FPC, and other circuit board materials
Reduces manual handling, minimizes electrostatic damage, and lowers scrap rates

Technical Specifications

Parameter	MDC-650	MDC-1250
Maximum Board Area	600 × 500 mm	1200 × 600 mm
Minimum Board Area	160 × 250 mm	410 × 1250 mm
Continuous Strip Punching	2 – 6 pieces	2 – 10 pieces
Punching Speed	900 – 1,000 boards/hour	660 – 900 boards/hour
Positioning Accuracy	±0.2 mm (CCD vision)	±0.2 mm (CCD vision)
Control System	PLC system with HMI touchscreen	PLC system with HMI touchscreen
Power Supply	3HP, 380V/220V, 50Hz/60Hz	3HP, 380V/220V, 50Hz/60Hz
Air Supply	≥ 0.6 MPa	≥ 0.6 MPa
Board Delivery Host (L×W×H)	1600 × 1540 × 1770 mm	1770 × 2100 × 1630 mm
Receiving Board Host (L×W×H)	1640 × 1300 × 1340 mm	1830 × 1300 × 1320 mm
Circuit Board Oven (L×W×H)	1700 × 1290 × 1800 mm	1700 × 1290 × 1800 mm
Board Delivery Host Weight	1,000 KG	1,200 KG
Receiving Board Host Weight	500 KG	500 KG

Application Fields

PCB Punching & Depaneling — Automatic loading/unloading for PCB punching presses
PCB Stamping Press — High-speed material handling for stamping operations
Guide Hole Drilling — Automated board feeding for drilling machines
Circuit Board Manufacturing — Integrated production line automation
FR4 / Aluminum PCB — Compatible with rigid and metal-core circuit boards
FPC / Flexible Circuit — Gentle handling for flexible substrate processing

Why Choose Our PCB Punching Robot Arm?

Factory Direct Pricing — In-house manufacturing with strict quality control, no middleman markup
18+ Years of PCB Industry Experience — Deep expertise in circuit board production automation
Customizable Configuration — Tailored suction cup layouts, board sizes, and production parameters
Rapid ROI — One operator manages multiple machines, cutting labor costs by 60%+
24/7 Reliable Operation — Industrial-grade components designed for continuous production
Comprehensive After-Sales Support — Installation guidance, operator training, and ongoing technical service
