Industrial SMT X-Ray Inspection System Automated PCB X-Ray Counter for BGA Solder Joint & IC Welding Defect Detection

Brand Name: rmi
Model Number: X-7900
MOQ: 1
Price: US$ 23000
Packaging Details: Wodden box
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Weight:
1050kg
Voltage:
AC110-220V 50-60HZ
Spatial Resolution:
3 μm
Tube Voltage:
130kv
Tube Current:
300μA
Imaging Precision:
Flat-panel Digital
A/D Convert Density:
16bit (65536)
DPI:
1536*1536px
Frame Frequency:
20 FPS
Optical Magnification:
450X
System Magnification:
2000X
Power:
1200W
Machine size:
L1098 X W1389 X H2157mm
Supply Ability:
1000 unit / month
Highlight:

3um Accuracy X-Ray Inspection System

,

2000X Magnification X-Ray Tester

,

PCB BGA Lithium Battery Testing X-Ray Testing Equipment

Product Description

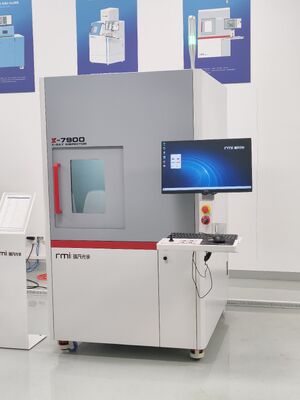

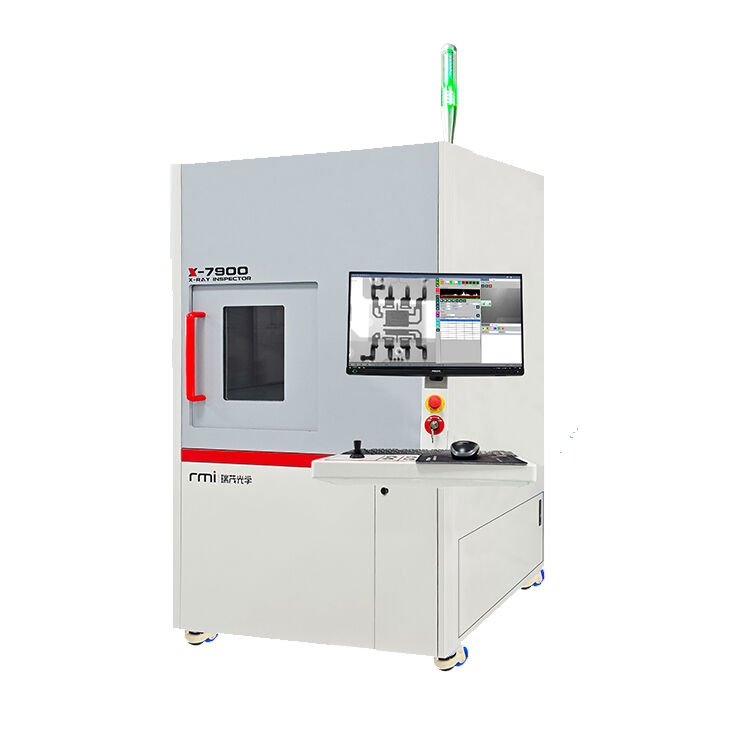

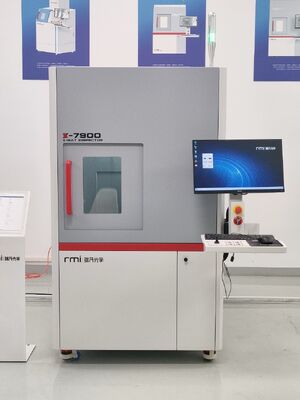

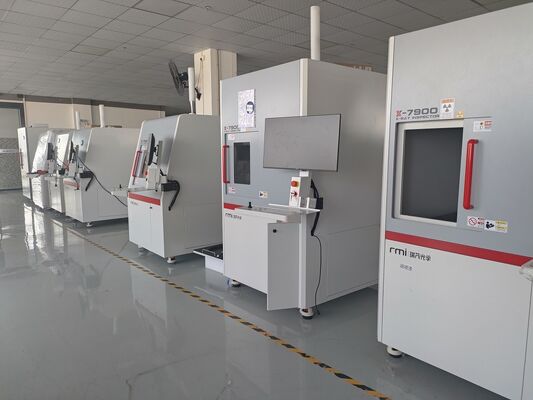

Ultra High Precision X-7900 2000X X-Ray Inspection System SMT X-Ray Inspection Machine

The Industrial SMT X-Ray Inspection System is a high-precision non-destructive testing (NDT) solution designed for modern electronics manufacturing. Ideal for PCB assembly lines, R&D labs, and small-batch production, this system delivers automated detection of hidden defects such as BGA solder joint cracks, IC welding voids, and head-in-pillow failures. Available with 110kV closed tube or 150kV open tube options, and resolution down to 2µm, it ensures zero-defect quality control for automotive, semiconductor, consumer electronics, and medical devices.

Key Features

✅ Advanced Imaging Technology

  • 2µm high-resolution microfocus X-ray tube captures fine details of BGA, QFN, and flip-chip solder joints.

  • Optional 3D CT (computed tomography) inspection provides cross-sectional views for void volume analysis and solder paste quality evaluation.

✅ Flexible Operation Modes

  • Manual mode for R&D and failure analysis.

  • Automated (AXI) mode for high-volume PCB production lines, with programmable inspection paths and auto defect recognition (ADR).

✅ Precision Manipulation

  • 5-axis manipulator (X, Y, Z, tilt, rotation) enables inspection of components from any angle, eliminating blind spots under shields, connectors, and heatsinks.

✅ User-Friendly Software

  • Intuitive interface with BGA void calculation, solder joint measurement, and pass/fail statistics.

  • Data export for SPC (statistical process control) and traceability.

✅ Compact & Benchtop Options

  • Space-saving benchtop design available for laboratories and low-volume assembly.

  • Inline conveyor type for fully automated SMT lines.

Technical Specifications
Model X-7900
Tube Type Enclosed Type
Spatial Resolution 3 μm
Tube Voltage 130kV
Tube Current 300μA
Image Taking Type Flat-panel Digital
Imaging Precision 85μm
A/D Convert Quantified Density Value 16bit (65536)
DPI 1536*1536px
Frame Frequency 20 FPS
Optical Magnification 450X
System Magnification 2000X
Operating System Windows 11
Power Supply AC110-220V 50-60HZ
Power Consumption 1200W
Radiation Safety Test <1 μSV/H
Detector Rotation Angle 60°
Stage Size 540*540mm
Sensing Range 510*510mm
Load-bearing Capacity ≤10kg
Machine Size 1098*1389*2157mm (L*W*H)
Machine Size (Including Monitor) 1601*1920*2157mm (L*W*H)
Machine Weight 1050kg
Stage Movement Automatic / Manual
Applications

  • PCB Assembly: Inspection of BGA, CSP, QFN, LGA, PoP, and through-hole solder joints.

  • Semiconductor: Die attach, wire bonding, and void detection in power modules.

  • Automotive Electronics: Solder quality control for ECUs, LiDAR, and battery management systems.

  • Medical Devices: High-reliability component inspection.

  • R&D & Failure Analysis: Root cause analysis of soldering defects.

Why Choose This SMT X-Ray Tester?

  • Reduce rework costs by catching hidden defects early.

  • Increase throughput with automated inspection routines.

  • Meet industry standards (IPC-A-610, ISO 9001).

  • Global support with CE, FCC, and ROHS certifications.

Package Includes

  • Main X-ray inspection unit

  • Industrial control PC with pre-installed software

  • Calibration tool kit

  • Operation manual and safety guide

  • One-year warranty and remote technical support
