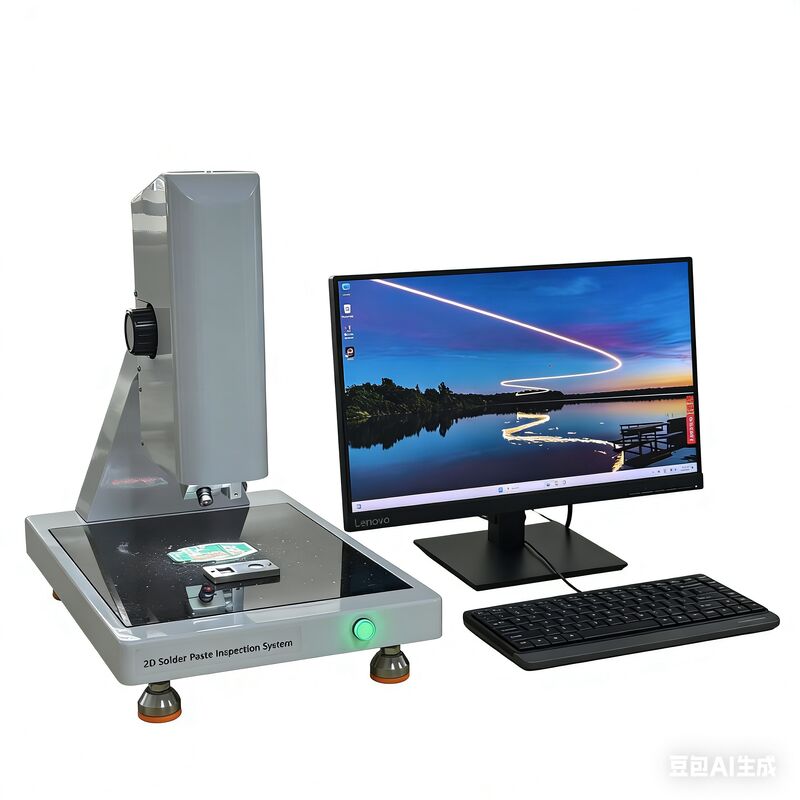

High Precision 2D Laser Solder Paste Thicknes Inspection Machine

Brand Name:	HXT
Model Number:	SH-110-2D
MOQ:	1
Price:	1200
Packaging Details:	Wodden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measurement Accuracy:

±0.001 Mm (±1 µm)

Repeat Accuracy:

±0.002 Mm (±2 µm)

Base Dimensions:

320 Mm * 500 Mm * 360 Mm

Optical Magnification:

25* – 110* (5-step Adjustable)

Image Resolution:

600 * 480 Pixels

Weight:

30 Kg

Supply Ability:

1000 per month

Product Description

2D Solder Paste Thickness Inspection Machine

Brief Introduction (Optimized for Buyers)

As Surface Mount Technology (SMT) advances, electronic components become increasingly smaller, packaging density becomes denser, and solder joints shrink correspondingly. Nearly 70% of PCB assembly defects are caused by improper solder paste printing.

The SH-110-2D Solder Paste Thickness Inspection Machine is designed to solve this problem. It effectively identifies potential defective solder deposits before component placement, provides accurate SPC control data (CPK, Cp), and significantly reduces defect rates.

In today's competitive electronic manufacturing environment, lower defect rates translate directly into higher profits. Strict process control requires factories to demonstrate their capability in managing solder paste printing during production. This machine provides that proof.

Beyond Solder Paste: The SH-110-2D can also be used in other production fields. Any geometric information of objects and components within 10 mm height can be precisely and non-contact measured.

Technological Parameters

Parameter	Specification
Measurement Principle	Non-contact laser triangulation
Measurement Accuracy	±0.001 mm (±1 µm)
Repeat Measurement Accuracy	±0.002 mm (±2 µm)
*Base Dimensions (LWH)*	320 mm * 500 mm * 360 mm
Platform Type	Fixed marble platform (vibration-dampening)
Image System	VGA high-definition camera
Optical Magnification	25* – 110* (5-step adjustable)
Measurement Light Source	High-definition red laser
Illumination	Adjustable annular LED (PC-controlled brightness)
Image Resolution	600 * 480 pixels
Software	SH-110 / SPC100 (compatible with all Windows OS)
Power Supply	95–240 V AC, 50 Hz, 1000 mA
Weight	30 kg

Application Area

Category	Measurable Features
Solder Paste	Thickness, Area, Volume, Gap, Angle, Length, Width, Arc
Irregular Geometric Sizes	Any non-standard shape within 10 mm height
PCB & Printing Ink	Circuit line width, Pad height, Dimensional measurement
Electronic Components	Horizontal coplanarity
Image Processing	Image capture, Video processing, Documentary management
SPC Statistical Analysis	CPK, Cp, and print output with full reporting

Standard Configuration (Included in Package)

Item	Quantity
SH-110-2D Main Unit	1
Software Package (CD/USB)	1
Video Capture Card	1
Transmission Line	1
Video Signal Line	1
Software Encryptor (Dongle)	1
Corrective Gauges (Calibration Tool)	1
Power Cable	1
Operating Manual	1

Operating Principle (Technical Explanation for Engineers)

The non-contact thickness gauge emits a very fine laser beam at a fixed incident angle onto the measurement target. Because the target (solder paste) and its surrounding substrate (PCB surface) differ in height, the reflected sensor receives multiple laser differences.

Based on the observed data, the analysis program—using trigonometric functions—rapidly calculates and outputs precise information about the measurement target, including height, width, area, and derived volume.
