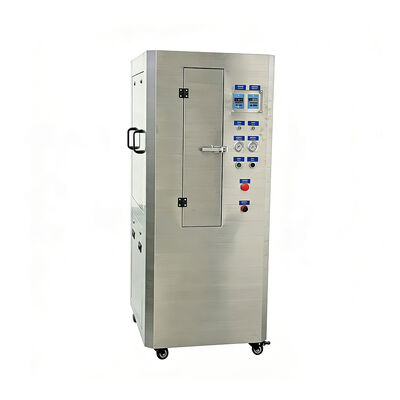

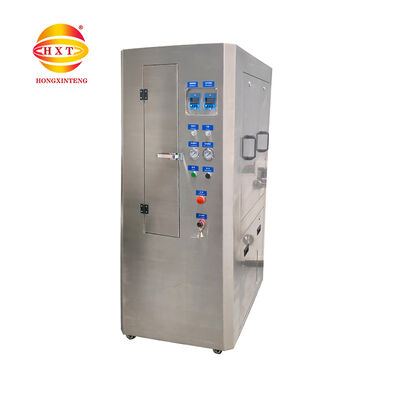

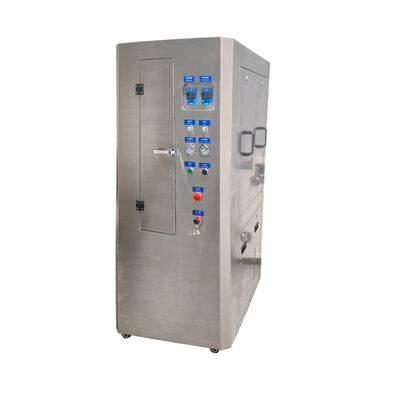

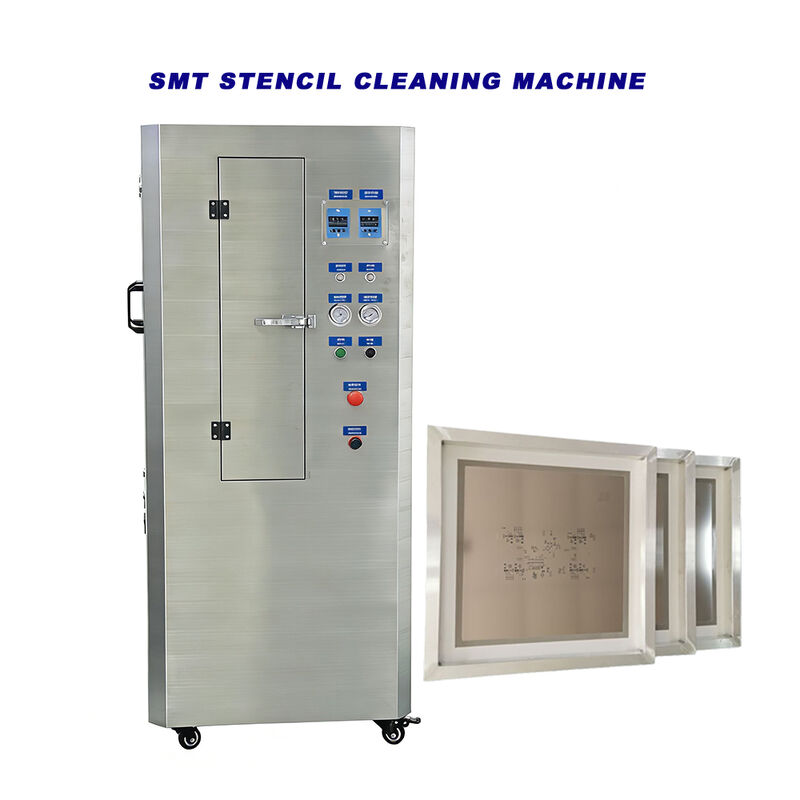

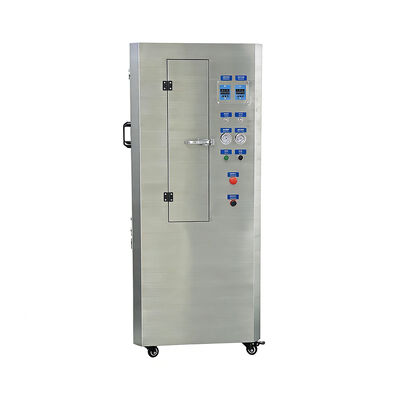

High Pressure Automatic Pneumatic Stencil Cleaner with 4-Stage Filtration System – 360° Rotary Spray for Stencil, Misprint PCB Board & Scraper Cleaning

Product Introduction

The Pneumatic Stencil Cleaner is designed for the SMT (Surface Mount Technology) production line. It efficiently removes solder paste, red glue, flux, and other high‑viscosity residues from:
SMT stencils (laser‑cut, step, and frameless)
Misprinted PCB boards
Squeegees / scrapers (metal or polyurethane)
Copper screens, fixtures, pallets, and tooling
By operating entirely on compressed air, the machine eliminates electrical ignition risks, making it ideal for environments where safety is paramount.

Key Applications

SMT laser stencils / step stencils
Misprinted PCB assemblies
Printing squeegees (metal or rubber)
Copper screens and silk screens
Wave solder pallets, fixtures, and carriers
Components with residual high‑viscosity adhesives

Technical Specifications

Applicable steel mesh sizeb:	L750 × W750 × H40 (mm) [Extra large sizes need to be customized]
Overall dimensions :	L1000×W700×H1730 (mm)
Liquid tank maximum capacity	40 liters
Optimum liquid usage	30 liters
Cleaning method:	360°rotating double-sided isobaric spray roll high-pressure spray (cleaning + drying)
Cleaning time	2-5min(for reference only)
Drying time	2-5min(for reference only)
External air source	0.4～0.7 (Mpa)
Air consumption	400～600(L/Min)
Exhaust port size	Φ125×H25(mm)
Filtration system (first level)	First level filter: (filters impurities and labels)
Filtration system (secondary)	Secondary filter: (filters solder paste and rosin particles)
Filtration system (three levels)	Third level filter: 5㎛ filter element (filters solder paste and rosin particles)
Machine net weight:	about 210Kg

Machine Details

Key Features

Fully Pneumatic Drive – No electrical connection required; powered solely by compressed air.
360° High‑Pressure Rotary Spray – Ensures thorough cleaning of stencil apertures, PCB surfaces, and complex tooling.
Multi‑Stage Filtration System – Integrated 4‑stage filtration separates solder particles and contaminants, extending cleaning fluid life.
Versatile Solvent Compatibility – Works with IPA, water‑based cleaners, and solvent‑based solutions.
One‑Button Automatic Cycle – Combines washing, rinsing, and drying in a fully automatic sequence.

Applicable Industries

Electronics Manufacturing Services (EMS)
Consumer electronics (smartphones, tablets, home appliances)
Automotive electronics (PCBs requiring high reliability)
Medical device manufacturing (strict cleanliness standards)
Aerospace & defense (explosion‑proof environments)
SMT contract manufacturers
Semiconductor packaging (post‑solder‑printing cleaning)

Tags:

LED Light Testing Machine

Infrared BGA Rework Station

pcb handling conveyor

Products Details

Home > Products >

Electronics Production Machinery

Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal

All Category

Pick And Place Machine

Reflow Oven

SMT AOI Machine

SMT Solder Paste Printing Machine

SMT SPI Machine

SMT Machine Line

Automatic Insertion Machine

Wave Soldering Machine

SMT Loader Unloader Machine

SMT Conveyor

Glue Dispensing Machine

Conformal Coating Machine

Curing Oven Machine

PCB Cutting Machine

Electronics Production Machinery

PCB Machine

Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal

Brand Name:	HXT
MOQ:	1
Price:	5400
Packaging Details:	Vacuum packing plus wooden box packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

HXT

Certification:

Liquid Tank Capacity:

40 Liters

Steel Mesh Size:

L750 × W750 × H40 Mm

Overall Dimensions:

L1000×W700×H1730 Mm

Air Pressure:

0.4～0.7 Mpa

Air Consumption:

400～600 L/Min

Net Weight:

210Kg

Minimum Order Quantity:

Price:

5400

Packaging Details:

Vacuum packing plus wooden box packing

Delivery Time:

10-15 days

Payment Terms:

T/T

Supply Ability:

The production capacity is 50 units a month
