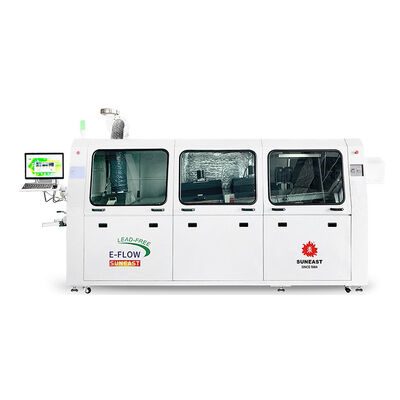

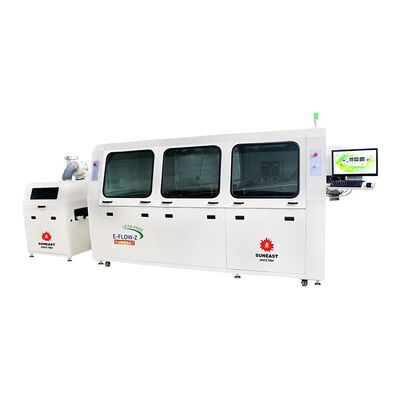

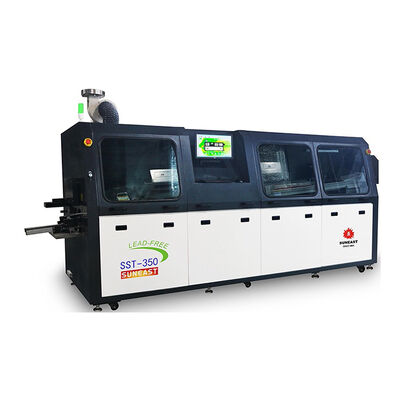

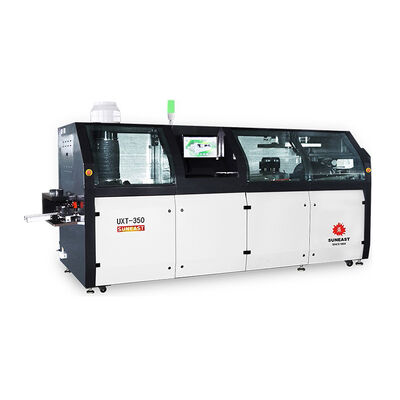

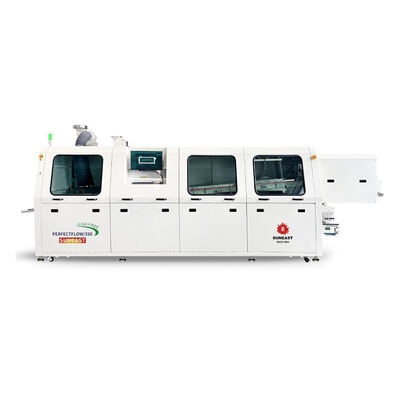

Fully Automatic E-FLOW-Z Series Wave Soldering Machine with 3-Phase 5-Wire System 380V50HZ for PCB Size 350mm

Model Number:	E-FLOW-Z
MOQ:	1
Price:	$25,000

Detail Information

Product Description

Detail Information

Weight:

1850kg

PCB Size:

350mm

Power Supply:

3-phase 5-wire 380V50HZ

Dimensions:

5050mm X 1420mm X 1750mm

Startup Power:

Operation Power:

Spray Pressure:

0.2Mpa-0.4Mpa

Preheating Length:

1800mm

Preheating Temperature:

Room Temperature~200℃

Conveyor Speed:

500-1800mm/min

Conveyor Height:

750±20mm

Component Height:

Top120mm, Bottom15mm

Solder Pot Temperature:

Solder Pot Capacity:

480kg

Cooling Rate:

4-6℃/s

Highlight:

3-phase 5-wire system Wave Soldering Machine

E-FLOW-Z Series Wave Soldering Machine

PCB size 350mm Wave Soldering Machine

Product Description

Lead Free DIP Tin Wave Soldering Machine - E-FLOW-Z Series

Professional PCB Electronic Component Assembling Equipment

Key Features

E-flow (left to right) 3 hot air system
Heavy-duty double hook-and-claw transmission
Tin stove exhaust hood with 50mm-350mm plate width capacity
Connection: Linkage type with aluminum guide and stainless steel chain drive
Advanced transmission system with adjustable substrate width and digital angle display
Special cast iron tin oven with anti-corrosion treatment and PID temperature control
Digital spray control system with automatic adjustment capabilities
Energy-efficient preheating system with three-stage micro-hot air cycle heating
PC + PLC control system with Chinese/English Windows operation interface

Technical Specifications

Model	E-FLOW-Z350	E-FLOW-Z450	E-FLOW-Z610
Dimensions (LxWxH mm)	5050x1420x1750	5050x1520x1750	5050x1690x1750
Weight	≈1850kg	≈2050kg	≈2300kg
Power Supply	3PH 380V 50HZ
PCB Width (mm)	50-350	50-450	50-610
Preheating Length (mm)	1800 (customizable to 2300mm)
Conveyor Speed (mm/min)	500-1800
Solder Pot Capacity	≈480kg	≈550kg	≈640kg

Detailed Features

Conveyor System: Direct buffering input structure with stainless steel chain conveyor and special aluminum alloy track design. Segment floating structure prevents deformation.

Pre-heating Zones: Energy-saving removable modules (drawer design) with PID control achieving ±2°C accuracy. Temperature variation less than 5°C.

Flux Spraying: Digital control with stepper motor controlled spray nozzle. Automatic flux supply with top-mounted exhausting and filter system.

Solder Pot: Cast iron construction with anti-corrosion ceramic coating and two low flowrate nozzles.

Cooling System: Adjustable air cooling with 4-6°C/s cooling rate.

Control System: PC+PLC with Windows 7 interface, Chinese/English operation, data auto-saving, and level detection alarms.

Frequently Asked Questions

Q1. Is the machine easy to operate for first-time users?

A: We provide English manual, guide video, and optional on-site engineer training for installation and operation.

Q2. What is the warranty period?

A: 1 year warranty with lifetime after-sales support.

Q3. How are after-sales issues handled?

A: Free replacement parts during warranty (customer pays postage for parts over 0.5kg).

Q4. What is the lead time?

A: 3-7 days for stock items, 15-25 working days for mass production.

Q5. What are the payment terms?

A: 30% advance TT, 70% balance when goods are ready for shipment.
