Wave Soldering Machine

PCB Welding Equipment Small Solder 200 Pcb Automatic Mini Selective Wave Soldering Machine

All Category

SMT Solder Paste Printing Machine

Electronics Production Machinery

PCB Machine

Miss. Alina

alina@hxt-smt.com

+86 16620793861

+86 16620793861

Contact Now

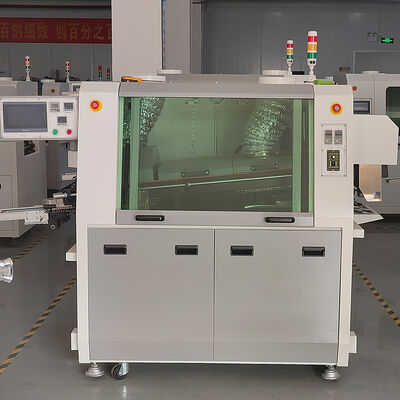

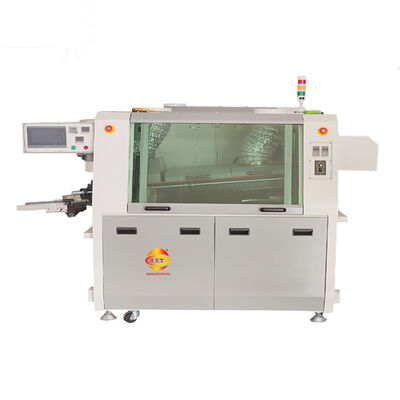

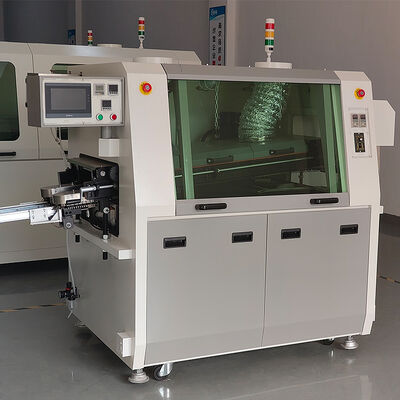

PCB Welding Equipment Small Solder 200 Pcb Automatic Mini Selective Wave Soldering Machine

MOQ:	1
Price:	$3,900

Detail Information

Product Description

Detail Information

Product Name:

200 Fully Automatic Wave Soldering

Dimensions:

2100*1050*1450mm

Machine Type:

Wave Soldering Equipment

Type:

Automatic

Function:

Soldering Components And PCB

Application:

SMT PCB Assembly Production Line

Highlight:

200mm PCB Size Wave Soldering Machine

2 Crests Selective Wave Soldering Machine

135KG Tin Furnace PCB Soldering Machine

Product Description

PCB Welding Equipment Small Solder 200 PCB Automatic Mini Selective Wave Soldering Machine

A Lead-Free Wave Soldering Machine is a specialized industrial machine used in electronics manufacturing to solder through-hole components onto printed circuit boards (PCBs) using solder alloys that contain no lead.

It's a direct evolution of traditional wave soldering machines, adapted to meet environmental regulations (like the EU's RoHS directive) that restrict the use of hazardous lead in electronics.

Technical Specifications

Model	S1320M
Number of crests	2 crests
PCB board width	Max200mm
Tin furnace capacity	135KG
Preheating length	400mm
Peak height	12mm
Foot length of board components	10mm
PCB board transportation height	750±20mm
Total power	6KW
Power supply	380V 50HZ
Control method	Touch screen
Rack size	130010501350mm
Dimensions	210010501450mm
PCB board transportation speed	0-1.2m/min
Preheating zone temperature	Room temperature -180°C
Heating method	Hot air
Cooling method	Axial fan cooling
Tin furnace temperature	Room temperature—300℃
Transport direction	left→right
Temperature control method	PID+SSR
The whole machine control method	Mitsubishi PKC+ touch screen
Flux capacity	Max5.2L
Spray method	Stepper motor+ST-6
Power supply	3-phase 5-wire system 380V50HZ (can also be changed to 220V)
Gas source	4-7KG/CM2 12.5L/Min
Weight	400KG

The Basic Process Flow:

Flux Application: The PCB bottom is sprayed with flux to clean oxides and prepare surfaces.
Preheating: The board is gradually heated to avoid thermal shock and activate the flux.
Soldering: The board passes over the molten lead-free solder wave, making contact.
Cooling: The board cools to solidify the joints.

Applications:

For electronic componenets soldering on PCB board assembling.

PCB Welding Equipment Small Solder 200 Pcb Automatic Mini Selective Wave Soldering Machine 1

Tags:

selective solder machine

flow solder machine

wave soldering system
