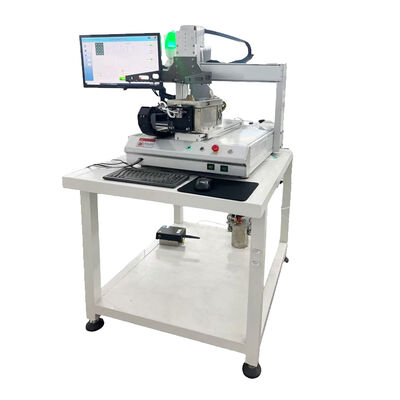

All-in-one machine combining selective fluxing and soldering in a compact XYZ motion table
Fixed fluxer nozzle and solder pot with moving PCB board for precise operation
Delivers high-quality soldering results for automotive electronics production
Flexible placement beside production lines for efficient workflow integration
Full PC control with parameter storage for consistent, repeatable soldering quality
Windows 7-based software with excellent traceability and intuitive path programming
Comprehensive monitoring of critical parameters including temperature, speed, and pressure
Precision motion system with servo and stepping motors for accurate positioning
Japanese injection valve accommodates various flux types
Titanium alloy stainless steel tin furnace liner prevents leakage
N2 online heating system reduces solder dross and improves wetting
Sturdy metal welding structure minimizes vibration for stable operation

Technical Specifications

General Specifications
Model	WDS-100B
Dimensions	550mm (L) × 650mm (W) × 650mm (H)
Power Supply	Single phase 220V 50HZ
Net Weight	450KG
Max Solder Area	350 × 250mm / 300 × 300mm / 350 × 300mm / 400 × 300mm
PCB Thickness Range	0.2mm - 6mm
Position Accuracy	±0.1 mm
Flux Management
Flux Nozzle Type	Jet valve
Flux Tank Capacity	1 L
Solder Pot
Standard Pot Number	1
Solder Pot Capacity	12 kgs/furnace
Max Solder Temperature	350°C
N2 Management
N2 Temperature Range	0-350°C
N2 Consumption	1-2 m³/hour/tin mouth

Frequently Asked Questions

Is this machine easy to operate for first-time users?

Yes, we provide an English manual and guide video. Additional support is available via email, Skype, phone, or our online service.

What if the machine has problems after delivery?

We provide free replacement parts during the warranty period. For parts under 0.5kg, we cover postage; heavier items require customer postage payment.

What is the minimum order quantity?

1 machine set, with mixed orders welcome.

Why should I choose your company?

We're an established manufacturer with over 10 years of experience, offering high-quality machines, on-time delivery, and 24/7 after-sales support.

Tags:

selective solder machine

flow solder machine

wave soldering system

Products Details

Home > Products >

Wave Soldering Machine

High-Reliability Selective Soldering Machine for Automotive Electronics Manufacturing with PCB Size 350mm

All Category

Pick And Place Machine

Reflow Oven

SMT AOI Machine

SMT Solder Paste Printing Machine

SMT SPI Machine

SMT Machine Line

Automatic Insertion Machine

Wave Soldering Machine

PCB Loader And Unloader

SMT Conveyor

Glue Dispensing Machine

Conformal Coating Machine

Curing Oven Machine

PCB Cutting Machine

Electronics Production Machinery

PCB Machine

High-Reliability Selective Soldering Machine for Automotive Electronics Manufacturing with PCB Size 350mm

Brand Name:	HXT
MOQ:	1
Price:	$9,800

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

HXT

Weight:

450KG

PCB Size:

350mm

Air Flow:

8-12L/min

Exhausting Flow:

800-1000cbm/h (spray), 600-800cbm/h (tin Stove)

Dimension:

L550mm X W650mm X H650mm

Power Supply:

Single Phase 220V 50HZ

Required Air Source:

3-5 Bars

Required N2 Pressure:

3-4 Bars

Required N2 Flow:

> 2 Cu/h

Required N2 Purity:

>99.998%

Max Solder Area:

350 X W250MM/ 300 X W300MM/ L350 X W300MM/ L400 X W300MM

PCB Thickness:

0.2mm-6mm

Position Accuracy:

+/-0.1 Mm

Solder Pot Capacity:

12kgs/furnace

Max Solder Temperature:

350 C
