Pick And Place Machine
>
High Speed Electronics Production Full Automatic SMT Machinery JUKIRS-1R Pick and Place Machine PCB Assembly Machine
All Category

Pick And Place Machine

Reflow Oven

SMT AOI Machine

SMT Solder Paste Printing Machine

SMT SPI Machine

SMT Machine Line

Automatic Insertion Machine

Wave Soldering Machine

SMT Loader Unloader Machine

SMT Conveyor

Glue Dispensing Machine

Conformal Coating Machine

Curing Oven Machine

PCB Cutting Machine

Electronics Production Machinery

PCB Machine
Contact Us
Miss. Alina
alina@hxt-smt.com
+86 16620793861
wechat +86 16620793861
Contact Now
High Speed Electronics Production Full Automatic SMT Machinery JUKIRS-1R Pick and Place Machine PCB Assembly Machine
  • name
  • name
  • name
  • name
  • name

High Speed Electronics Production Full Automatic SMT Machinery JUKIRS-1R Pick and Place Machine PCB Assembly Machine

MOQ: 1
Price: $45,000
Detail Information
Product Description
Detail Information
Product Name:
Juki Pick And Place Machine
Application:
SMT PCB Assembly Production Line
Type:
Automatic
Component Range:
0201, 0402
Placement Speed:
42000CPH (Optimum)
Brand:
Juki RS-1
Highlight:

112x2 Feeders Pick and Place Machine

,

650mm x 370mm Board Dimension PCB Assembly Machine

,

25mm Component Height SMT Machine

Product Description

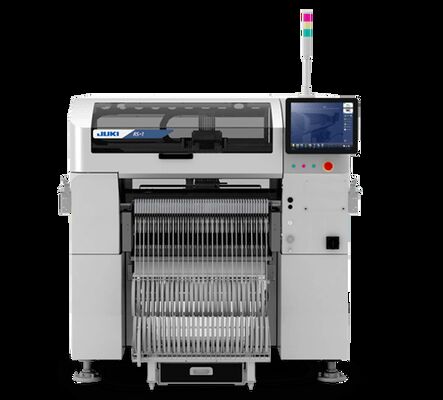

High Speed Electronics Production Full Automatic SMT Machinery JUKI RS-1R Pick and Place Machine PCB Assembly Machine
High Speed Electronics Production Full Automatic SMT Machinery JUKIRS-1R Pick and Place Machine PCB Assembly Machine 0
Model JUKI RS-1
Placement speed 42000CPH (Optimum)
29000CPH (IPC9850)
Board size minimum 50x50mm
maxmum (1 buffer) 650x370mm (single index )
950x370mm (double index)
Component size 0201mm (008004″)~74mm square/50mm x 150mm
Conveyor specification Standard
Component height 25mm
PWB thickness 0.3mm to 4mm
Placement accuracy +/- 0.035 mm (CPK ≧1)
Feeder inputs max. 112pcs (8mm feeder)
Power supply: 200 — 415VAC, 3 phase
Apparent power 2.2KVA
Operating air pressure 0.5+/-0.05Mpa
Air consumption Max. 50L/min
Machine weight 1700kg
Machine Size L1500xD1810xH1440mm
Full Automatic SMT Machines Assembly Line
This fully automated SMT line combines cutting-edge hardware, precision engineering, and intelligent software to deliver unmatched efficiency, accuracy, and adaptability for modern electronics manufacturing. The line includes seven core machines: HXT automatic laoder machine, GLS-E automatic solder paste printer machine, Sinictek 3D SPI machine, Juki RS-1 pick and place machine, JT (JTR-1000) reflow oven machine, Sinictek 3D AOI machine and HXT unloader machine.

HXT Automatic Laoder Machine
Function: The HXT Automatic Loader Machine is a robust, automated solution for feeding PCBs into SMT production lines, ensuring continuous operation, through advanced technology.

Key Specifications:
- PCB Handling Capacity: Maximum PCB Size: 510 × 390 mm
- PCB Thickness: Compatible with boards as thin as 0.6mm - 3mm for delicate applications.
- Storage Capacity: Holds up to 50 PCBs in its magazine, minimizing downtime for reloading.
- PCB Trnsfer Speed: 10 second /pcs to synchronize with downstream equipment.
- Power Supply: Single phase AC 220V ±10%, 50/60 Hz for global compatibility.
- Dimensions: Compact footprint of 1650 × 870 × 1300 mm (L × W × H)
- Machine Weight: About 250 KG.

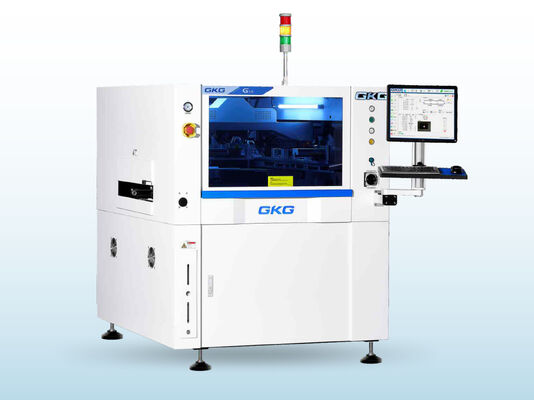

GKG Automatic Solder Paste Printer (GLS-E)
Function: Applies solder paste to PCB pads with micron-level accuracy to prepare for component placement.

Key Specifications:
- PCB Capacity: Supports boards up to 510mm × 510 mm and thicknesses from 0.4mm to 6mm.
- Stencil Frame: Accommodates frames up to 737mm × 737mm for large or multi-panel PCBs.
- Speed: Programmable conveyor speed up to 1500 mm/s and printing speed adjustable between 10–200 mm/sec.
- Cleaning system: Dry, Wet, Vacuum three modes
- Power: Operates on AC 220V ±10%, 2.2KW,
- Dimensions: housed in a compact 1250mm x 1425mm × 1500mm.
- Machine Weight: About 1100 KG.

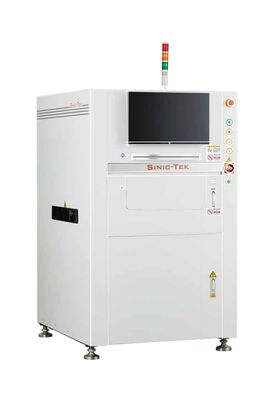

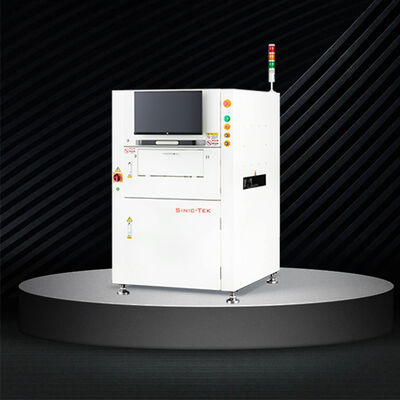

Snictek 3D SPI Machine (S2020)
Function: The Sinictek 3D SPI (Solder Paste Inspection) Machine is an advanced optical inspection system used in Surface Mount
Technology (SMT) production lines to analyze the quality of solder paste deposits on printed circuit boards (PCBs).

Key Specifications:
- PCB Compatibility: Maximum PCB Size: 450 mm × 500 mm (suitable for medium to large boards).
- Thickness Range: Typically supports PCBs from 0.4 mm to 6 mm (varies by model).
- Principle: 3D white light Phase-Shifting Light Modulation (PSLM) and Phase Measurement
- Profilometry (PMP), enabling high-precision 3D topography mapping.
- Inspection Speed: 0.35–0.5 seconds per Field of View (FOV), balancing speed and accuracy for high-throughput lines.
- Power: Typically operates on AC220V, 50/60Hz (varies by configuration).
- Mark-Point Detection: 0.3 seconds per piece for rapid PCB alignment.
Conveyor Adjustment: Manual and automatic width adjustment (50–450 mm), accommodating diverse PCB sizes without downtime.
- Machine dimensions: 1000 mm × 1150 mm × 1530 mm (compact footprint for easy integration). Weight: 965 KG.

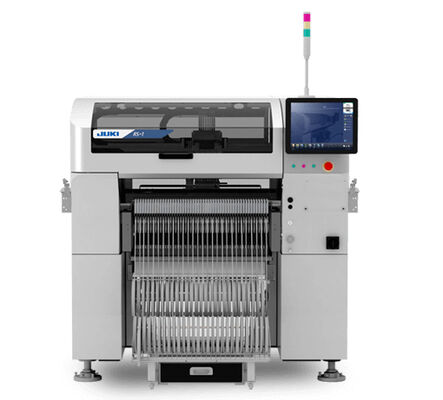

Juki SMT Pick and Place Machine (Juki RS-1)
Function: Precision placement of surface-mount components onto PCBs.

Key Specifications:
- Placement Speed: 29,000 CPH with 8 placement heads for rapid throughput.
- Component Range: Handles 0201 metric (008004) up - up to 74mm square and 50mm x 150mm rectangular parts for maximum flexibility. Component Height 25mm
- Vision System: Equipped with a flying camera for real-time component alignment and inspection.
- PCB maximum Sizee: 650mm × 370mm for multi-board panels.
- Operating air pressure: 0.5+/-0.05Mpa air pressure.
- Machine Dimension: 1500mm × 1810mm × 1440mm and the machine weigh is 1700 KG.

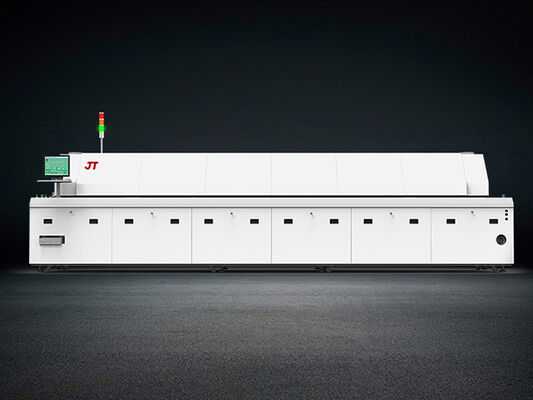

JT Reflow Oven Machine (JTR-1000)
Function: Lead free hot air melts solder paste to form permanent electrical connections between components and PCBs.

Key Specifications:
- Heating Zones: 10 zones (10 Top/ 10 Bottom) over 3890mm heating length, enabling precise thermal profiling.
- Cooling Zone: 3 Top / 3 Bottom cooling zone to prevent warping.
- Conveyor System: Chain-driven transport electrical adjustable, handling PCBs up to 4000 mm wide.
- Temperature Control: Range up to 300°C, with 3-phase 380V power and 36KW operating consumption.
- Dimension: 6300mm × 1430mm × 1530mm, designed for high-throughput environments.

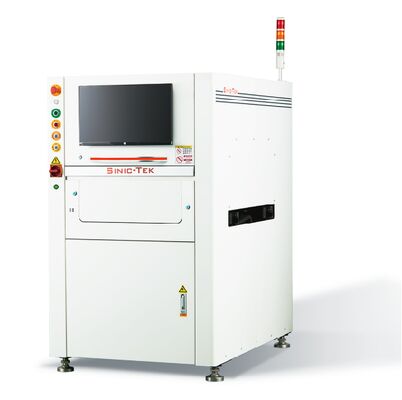

Snictek 3D AOI Machine (A630)
The Automated Optical Inspection (AOI) machine is designed for high-precision inspection of printed circuit boards (PCBs), ensuring quality control by detecting solder defects and component issues.

Key Specifications:
- Max PCB Size: 450 mm × 450 mm.
- Max Component Height: 50 mm (accommodates tall components like connectors).
- Lens Resolution: 6.5 megapixels with 13.5µm pixel size.
- Minimum Detectable Component: 1005 metric (1.0 mm × 0.5 mm, equivalent to 0402 imperial).
- Inspection Speed: 0.45 seconds per Field of View (FOV).
- Conveyor Width Adjustment: Manual and automatic options for flexibility in PCB width handling.
- Defect Detection Capabilities
- Solder Defects: Bridges, insufficient/excessive solder, solder fillet issues, hole plugging, pad contamination, and solder
volume percentage analysis.
- Component Defects: Misalignment, missing components, and contamination.
- Machine Size: W1000xD1174xH1550mm (L × W × H).
- Weight: 985 kg (requires sturdy installation).

HXT Automatic Unlaoder Machine
Function: The HXT Automatic Unloader Machine is a robust, automated solution for feeding PCBs into SMT production lines, ensuring continuous operation, through advanced technology.

Key Specifications:
- PCB Handling Capacity: Maximum PCB Size: 510 × 390 mm
- PCB Thickness: Compatible with boards as thin as 0.6mm - 3mm for delicate applications.
- Storage Capacity: Holds up to 50 PCBs in its magazine, minimizing downtime for reloading.
- PCB Trnsfer Speed: 10 second /pcs to synchronize with downstream equipment.
- Power Supply: Single phase AC 220V ±10%, 50/60 Hz for global compatibility.
- Dimensions: Compact footprint of 1650 × 870 × 1300 mm (L × W × H)
- Machine Weight: About 240 KG.
Applications
This fully automated SMT line is suitable for:
  • Industrial products
  • Consumer electronics
  • Mobile devices
  • Computers
  • Automotive industries
Tags:

LED Chip Mounter

smt placement machine

pick and place pcb assembly
