Yamaha Pick And Place Machine Electronic 3 Phase 220/240/380V

Brand Name:	YAMAHA
Model Number:	YRM20DL
MOQ:	1
Price:	56000
Packaging Details:	Vacuum packing plus wooden box packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Pick And Place Machine

Brand:

Model:

YRM20DL

Number of Spindles:

10 Spindes X 1 Gantry

Placement Speed:

40,000CPH (Optimum)

Maximum Board Size:

L 810 Mm X W 610 Mm

Power Supply:

3-phase, AC 200/208/220/240/380/400/416V±10%, 50/60Hz

Usage:

SMT Production Line

Application:

Electronic Products Manufacturing

Machine Weight:

Approx. 2550 KG

Machine Dimension (mm):

1374(L) X 2102(W) X 1445(H)

Supply Ability:

The production capacity is 50 units a month

Highlight:

3 Phase Pick And Place Machine

3 Phase smt placement machine

220V Pick And Place Machine

Product Description

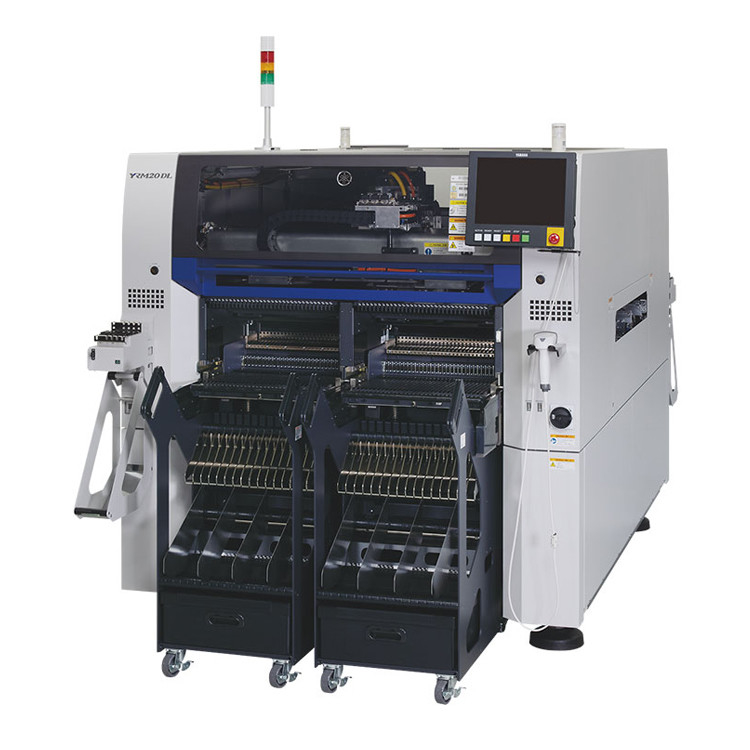

High Speed YAMAHA SMT Pick And Place Machine YRM20DL With High Accuracy Pick And Place Machine and Chip Mounter For Pcb Assembly Line

Product description

This Yamaha dual-lane pick and place is ideal variable mix / variable volume PCB assembly production. Offering low-impact mounting from a selection of 3 mounting heads, that enable you to mount from 008004" (0201 mm) up to large odd shape SMD.

The dual lane opens up for new mounting possibilities e.g. the supporting mounting innovation that enable the mounting heads to 'help each other' on both lanes.

Various Yamaha original features realize full dual lane lines with twice the productivity in the same floor space

Product specification

Model	YRM20DL
Specifications	Super-high-speed rotary RM head	High-speed general-purpose inline HM head	Odd-shaped components inline FM(flexible-multi)head
Nozzles (per 1-head unit)	18	10	5
Applicable components	0201 mm to W12xL12 mm, Height 6.5 mm or less	0201 mm to W55×L100 mm, Height 15 mm or less	03015 mm to W55×L100 mm, Height 30 mm or less
Mounting capability (under optimum conditions)	120,000 cph* 100,000 cph*		35,000 cph
Mounting accuracy (under optimum conditions)	±0.015 mm Cpk≥1.0**		±0.035 mm Cpk≥1.0
Number of component types	Feeder carriage exchange:Max.128 types =32 feeders x4(conversion for 8 mm tape feeder) Fixed plate:Max.128 types (conversion for 8 mm tape feeder) Trays:60 types(maximum when equipped with eATS30×2)
PCB dimensions	Single use:L50×W50 mm to L810×W610 mm Dual use:L50×W50 mm to L810×W 330 mm
Power supply	3-phase, AC 200/208/220/240/380/400/416V±10%, 50/60Hz
Air supply source	0.45 MPa or more,in clean,dry state
External dimension (excluding projections)	L1,374×W2,102×H1,445 mm
Weight Approx.2,550 kg(main unit only)
High-production mode *High-accuracy mode

Product details

1 head solution provides broad-range production capability
Super high-speed rotary RM head achieves 120,000CPH
Rotary head boosts component mountability of tiny components. This maintains high speed production since head replacements are no longer needed. This is technology that helps carry on the 1 head solution concept. This head can handle components ranging from super-tiny 0201mm components on up to medium-sized odd-shaped components of 12 x 12mm dimensions with heights of 6.5mm

Yamaha Pick And Place Machine Electronic 3 Phase 220/240/380V 0

High-speed multi-purpose in-line HM head

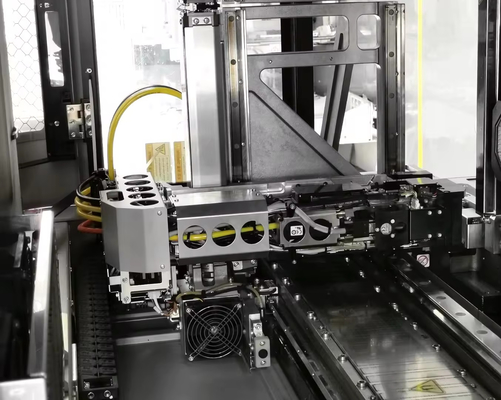

The flexible “all-around” head not only has high-speed, but also has the versatility essential for mounting super-tiny 0201mm components all the way up to large-size components of 55 x 100mm and heights up to 15mm.

Yamaha Pick And Place Machine Electronic 3 Phase 220/240/380V 1

Odd-shaped components capable in-line FM head

The ultra-wide-range head fully handles components ranging from super-tiny 03015mm chips on up to ultra-large components of 55 x 100mm and heights of 30mm. Force control is also available.

RM head / HM head / FM head
