SMT SMD Chip Pick And Place Device Automatic Chip Mounter 105000CPH

Brand Name:	JUKI
Model Number:	LX-8
MOQ:	1
Price:	53000
Packaging Details:	Vacuum packing plus wooden box packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Pick And Place Machine

Brand:

Model:

Number of Head:

2 Heads

Placement Speed:

105,000CPH (Optimum)

Maximum Board Size:

L 410 Mm X W 400 Mm

Power:

3-phase AC200V (standard) AC200V ～ AC415V (when Optional Transformer Is Selected)

Usage:

SMT Production Line

Application:

Electronic Products Manufacturing

Machine Weight:

Approx. 2400 KG

Machine Dimension (mm):

1600(L) X 1924(D) X 1440(H)

Supply Ability:

The production capacity is 50 units a month

Highlight:

105000CPH Chip Pick And Place Device

105000CPH Automatic Chip Mounter

SMD Chip Pick And Place Device

Product Description

Smt Assembly Juki Chip Placement Machine With Super High Speed Juki LX-8 Pick And Place Machine And LED Chip Mounter For SMT Production Line.

Product description

High Productivity

Achieves high-efficiency production through high area productivity and ultra-high speed equipment of the highest level in its class.

It boasts the highest 105,000CPH in its class, and is equipped with ultra-high speed, space-saving
features, while boasting high area productivity and achieving highly efficient production.

Product specification

Advanced Flexible Mounter LX-8
		P20S×P20S	P20SxTakumi	TakumixTakumi
Board size	Minimum	50×50mm
	Single clamping	410×400mm
	Double clamping*¹	810×400mm*²
Component height		3mm	22mm
Component size	Minimum	0201*¹		3015
	Maximum	□5 ㎜	□65 ㎜ /10 ㎜ ×90 ㎜ /50 ㎜ ×75 ㎜
Placement speed (optimum)		105,000CPH	99,500CPH	94,000CPH
Placement accuracy		±40μm(Cpk ≧1)	±35μm (Cpk ≧1)*³
Feeder capacity	Tape	Max. 136	Max. 148	Max. 160
	Tray*⁴	_	Max. 30	Max. 60
Power		3-phase AC200V (standard) AC200V ～ AC415V (when optional transformer is selected)
Apparent power		2.49kVA
Operating air pressure		0.5±0.05MPa
Air consumption (standard)		50L/min(ANR)
Machine dimensions (WxDxH)*⁵		1,600 ㎜ ×1,924 ㎜ ×1,440 ㎜
Mass (approximately)		2,400kg or less

Product details

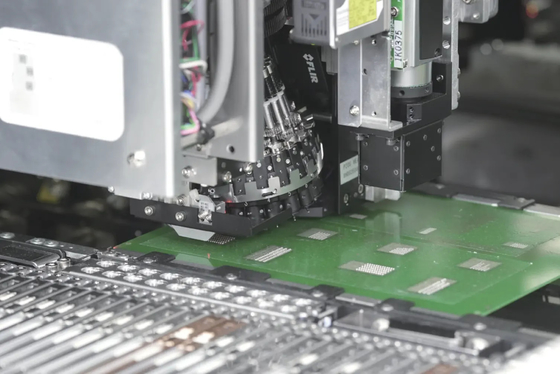

Planet head P20S/Takumi head, selectable for each characteristic

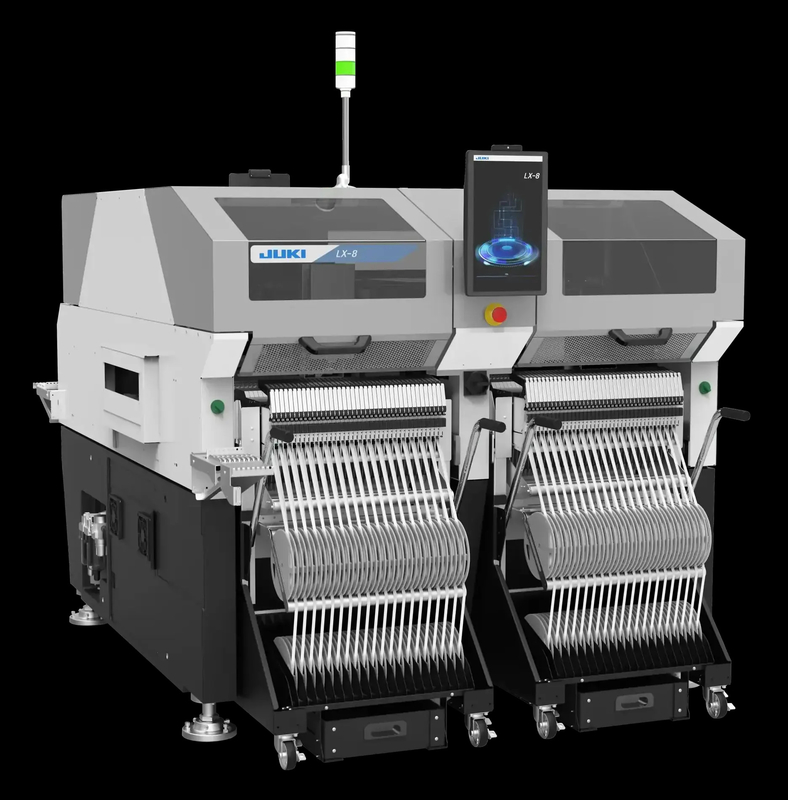

SMT SMD Chip Pick And Place Device Automatic Chip Mounter 105000CPH 0

SMT SMD Chip Pick And Place Device Automatic Chip Mounter 105000CPH 1

Flexible head configuration

Head can be replaced by the user. It can flexibly respond to changes in production boards.

SMT SMD Chip Pick And Place Device Automatic Chip Mounter 105000CPH 2
