Single Rail Durable Smt Conveyor Systems PCB Flipping Machine

Brand Name:	HXT
Model Number:	HXT-350T
MOQ:	1
Price:	1600
Packaging Details:	Vacuum packing plus wooden box packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

SMT Automatic PCB Turning Machine

Model Number:

HXT-350T

Air Pressure:

0.45-0.6Mpa

Product Name:

PCB Flipping Machine

Function:

Fully Automatic

Usage:

SMT Production Line

PCB Size L*W (mm):

480mm-460mm

Power:

220V/50HZ 320W

Dimension L*W*H(mm):

900mm X 600mm X 1350mm

Weight (kg):

Package:

Wooden Box Packaging

Supply Ability:

The production capacity is 100 units a month

Highlight:

Single Rail Smt Conveyor Systems

Durable Smt Conveyor Systems

Durable selective wave soldering machine

Product Description

Single Rail SMT Conveyor for PCB Flipping Machine to Handling the PCB Invertor Turnover With Flip Function For SMT Assembling Line Production

Standard Equipment Introduction

※Aluminum alloy guide rail, stable, durable and beautiful.

※The top safety cover can be opened to facilitate the handling of machine hardware during maintenance

※The frame is fully welded with 3.0mm cold plate, and the surface is electrostatic powder sprayed computer gray

※The microcomputer Panasonic PLC control system works stably and reliably.

※Display control touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.

※Adjustable corner speed ensures that the PCB board will not slide

※Multiple sound and light and touch screen alarm function.

※The height of the material wall can be adjusted according to the thickness of the PCB.

※Humanized design ensures that the PCB board will not be broken and improves the output capacity

※It has dual functions of bare board automatic board feeding and PASS.

※The automatic anti-dropping method is adopted, which effectively shortens the loading time.

※Stable and balanced width adjustment device (manual control screw adjustment)

※Electrical components of the equipment adopt well-known brands.

※ Standard SMEMA signal interface.

※Small machine footprint.

※ Compatible SMEMA interface.

Single Rail Durable Smt Conveyor Systems PCB Flipping Machine 0

Product Specification

Technical Parameters
(L×W×H)	HXT-350
Board size	(L×W)～(L×W)(50x50)～(480x460mm)
PCB board weight	about 3 kg
Dimensions	(L×W×H)9006001350
Weight/ Weight	98kg
Describe	This equipment is used to flip PCB boards to meet the needs of double-sided processing
Cycle Time	about 10 seconds
Power supply	220-230V AC (customer specified), single phase
Electric load	180VA max
Barometric pressure	0.45-0.6Mpa
Air flow volume	up to 30 l/min
Teleport height	900±20mm (or user specified)
Transmission direction	Left → right or right → left (optional)
Key Component Brand
Motor	Aizhikong
Touch screen	show control
Control board	Kim Hee

Product details

LEC touch screen control system Easy to operate Closed design to ensure safe top cover opening

Single Rail Durable Smt Conveyor Systems PCB Flipping Machine 1

Equipment for

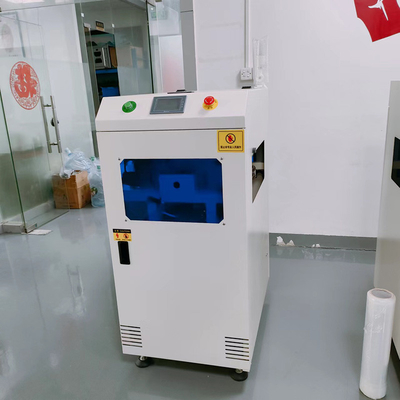

This equipment is used in the SMT production line to flip the circuit board 180 degrees to meet the needs of double-sided processing. It adopts cylinder flip, fast and stable, accurate alignment, smooth and parallel width adjustment stainless steel screw, multiple electrical distribution circuit protection, safe and reliable. , easier operation and maintenance.

Single Rail Durable Smt Conveyor Systems PCB Flipping Machine 2

Single Rail Durable Smt Conveyor Systems PCB Flipping Machine 3
