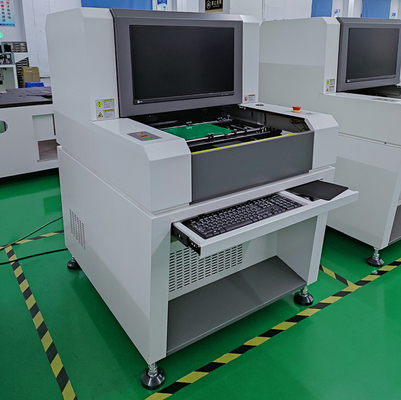

Offline High Resolution 3d Aoi Inspection Machine Automatic Optical Inspection Equipment

Brand Name:	DCEN
Model Number:	DC-500
MOQ:	1
Price:	11200
Packaging Details:	Vacuum packing plus wooden box packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

2D Offline AOl Machine

Brand Name:

Model Number:

DC-500

Product Name:

Semi Automatic Optical Inspection Equipment

Maximum Board Size:

450 X 330mm

Usage:

SMD LED SMT

Core Components:

PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Application:

SMT PCB Assembly Production Line

Warranty:

1 Year

Supply Ability:

The production capacity is 100 units a month

Highlight:

Offline 3d Aoi Inspection Machine

High Resolution 3d Aoi Inspection Machine

High Resolution Automatic Optical Inspection Equipment

Product Description

Semi automatic SMT 2D Offline AOI Optical Inspection Machine DCEN 2D Online AOI DC-500 PCB Optical Inspection Machine PCB Inspection Machine

The Offline 2D AOI (Automated Optical Inspection) Machine is a cost-effective quality control solution designed for post-production PCB inspection in small-to-medium batch manufacturing. Utilizing high-resolution 2D imaging (5MP-20MP cameras) with multi-angle LED illumination, this standalone system detects solder defects (bridging, insufficient solder), component errors (missing/misaligned parts), and polarity issues with 15μm resolution.

Product Specification

Optical system	Optical camera	5 million high-speed intelligent digital industrial camera
	Resolution (FOV)	Standard 15μm/Pixel (corresponding FOV: 38mm*30mm) 10/15/20μm/Pixel (optional)
	Optical lens	5M pixel level telecentric lens, depth of field: 8mm-10mm
	Light source system	High brightness RGB coaxial ring multi-angle LED light source

Hardware Configuration	Operating system	Windows 10 Professional
	Computer Configuration	i3CPU, 8G GPU graphics card, 16G memory, 120G solid state drive, 1TB mechanical hard drive
	machine power	AC 220 volts ±10%, frequency 50/60Hz, rated power 1.2KW
	Machine size	1100mm×900mm×1350mm (L × W × H) height including feet
	Machine weight	450kg
	Optional configuration	Off-line programming software, external barcode gun MES traceability system interface is open

Detect PCB specifications	Size	40×40mm ~450×330mm (larger size can be customized according to customer requirements)
	thickness	0.3mm ~6mm
	Board weight	≤3KG
	Clear height	Upper net height ≤ 35mm, lower net height ≤ 70mm (special requirements can be customized)
	Minimum test element	0201 components, 0.3 mm pitch and above IC (optional can reach 01005 components)

Test items	Solder paste printing	Presence, deflection, less tin, more tin, open circuit, pollution, tin connection, etc.
	Part Defect	Missing parts, shifting, skewing, tombstones, standing sideways, overturned parts, reversed polarity, wrong parts, damaged parts, multiple parts, etc.
	Solder joint defects	Less tin, more tin, even tin, virtual soldering, multiple pieces, etc.
	Wave Soldering Inspection	Insert pin, no tin, less tin, more tin, virtual soldering, tin bead, tin hole, open circuit, multiple pieces, etc.
	Red plastic board detection	Missing parts, shifting, skewing, tombstones, standing sideways, overturned parts, reversed polarity, wrong parts, damage, overflowing glue, multiple parts, etc.

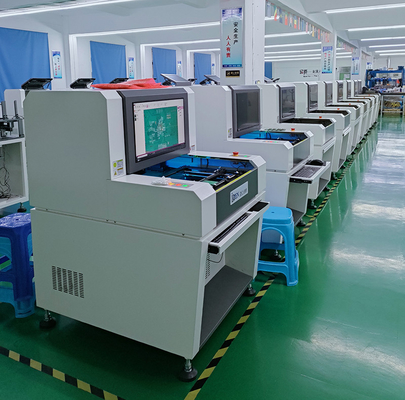

Offline High Resolution 3d Aoi Inspection Machine Automatic Optical Inspection Equipment 0

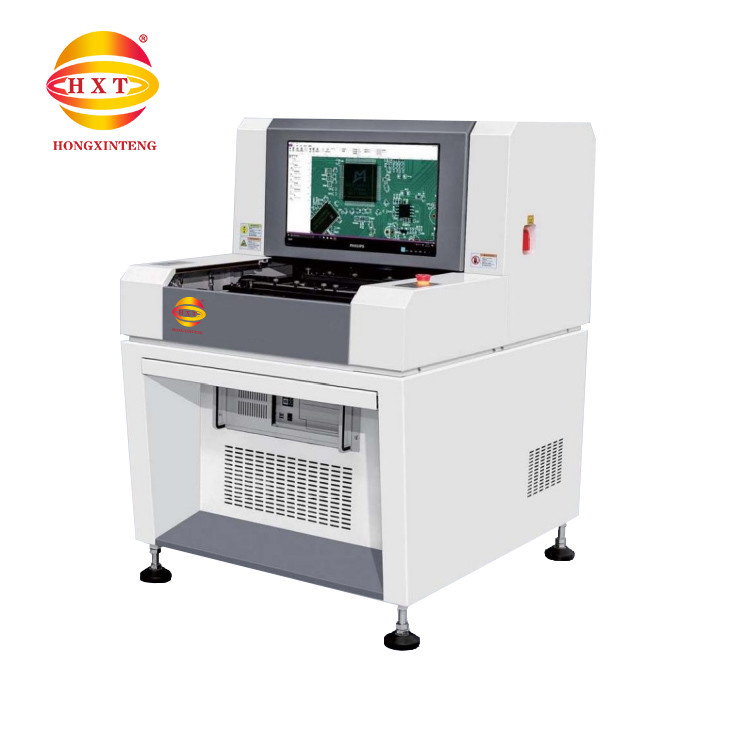

Offline High Resolution 3d Aoi Inspection Machine Automatic Optical Inspection Equipment 1

Applications:

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.

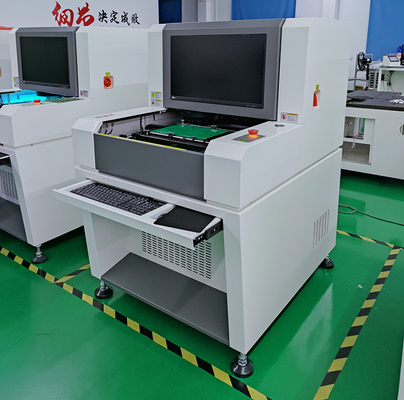

Offline High Resolution 3d Aoi Inspection Machine Automatic Optical Inspection Equipment 2
