8 Head Pick And Place Pcb Machine Smt Mounter Machine Easy Operating

Brand Name: HCT
Model Number: HCT-530LV
MOQ: 1
Price: 22000-25000
Packaging Details: Vacuum packing plus wooden box packing
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Application:
SMT For Led Production Line
Name:
Pick And Place Machine
Maximum Board Size:
1500x400mm
Condition:
Original New And Used
Usage:
SMD LED SMT
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Machinery Test Report:
Provided
Supply Ability:
The production capacity is 50 units a month
Highlight:

8 Head Pick And Place Pcb Machine

,

Easy Operating Pick And Place Pcb Machine

,

Easy Operating Smt Mounter Machine

Product Description

Automatic SMT Production Line HCT-530SV Pick and Place Machine for Electronic Products Machinery 8 head LED PCB SMT Chip Mounter 45000 CPH



Product introduction

High-accuracy: Each of the eight pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.  High-speed: Maximum placement speed reaching 0.086s/chip. Each mounting head has its own Z - direction closed-loop stepper motor, which is designed for vertical motion. Places SMD components from 0603 to 7474, including resistors, capacitors, standard and irregularly shaped LED. Suitable for all LED lighting products, including flexible PCB strip, circular LED light bulb boards and even irregularly shaped boards. Assembles LED PCB up to 1.5 meters long in a single pass.  Provide non-stop circulating production for small size PCB. Built-in vacuum pump, no outside air source needed. Heavy marble platform support to ensure long-service life. Excellent quality hardware support by using international famous brands ensure placement repeatability and precision. Self-developed software simplifies production, easy operating and programming.

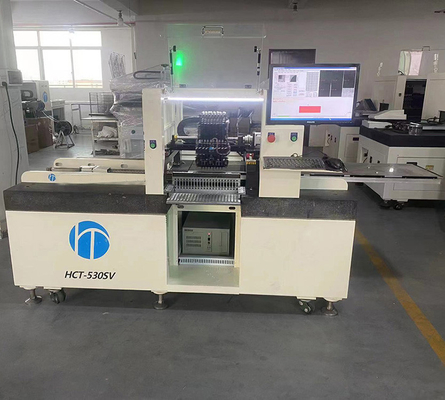

8 Head Pick And Place Pcb Machine Smt Mounter Machine Easy Operating 0

Product Specification

Model HCT-530SV
Alignment Flying Vision Alignment System
Number of Spindles 8Spindles x 1 Gantry
Rated PlacementSpeed Vision Alignment LED 2835 45,000 CPH (Optimum)
Placement Accuracy ±0.05mm
(Based on the standard chips)
Mechanical Precision ±0.02mm
Component Range Vision Alignment 0603(inch)~5050~7474(mm),
high-power LED, IC<10mm
  Max Height H=10mm
(can handle max. 16mm without vision alignment)
Board Dimension(mm) Maximum 1,500(L) x 400(W)
Board Handling Method Magnetic Fixture Worktable
Tape Feeder Feeder Type Electric Feeder
  Feeder Capacity 20(12mm)
  Optional 8mm, 12mm, 16mm, 24mm
Utility Power AC 220V/240V 50/60Hz, Single phase
    Max 2.8KW
  Air Supply Built-in Vacuum Pump
Mass Approx. 1560kg
External Dimension(mm) 2,000(L) x 1,250(D) x 1,400(H)
Ball Screws KURODA / THK / NSK (Japan)
Linear Guide HIWIN (Taiwan)
Servo Motors & Drivers PANASONIC (Japan) / MOONS (China)
Stepper Motors & Drivers MOONS (China)
Cables & Tank Chain IGUS (Germany)
Solenoid Value CKD (Japan) / MAC (America)
IPC Independent Research & Development



Product details

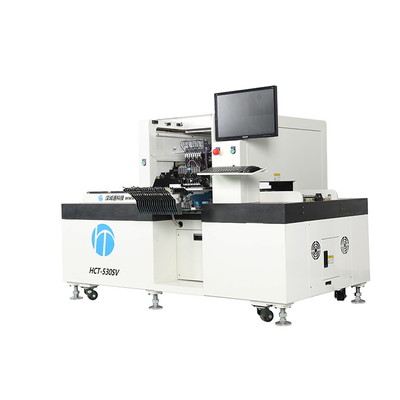

8 Head Pick And Place Pcb Machine Smt Mounter Machine Easy Operating 1

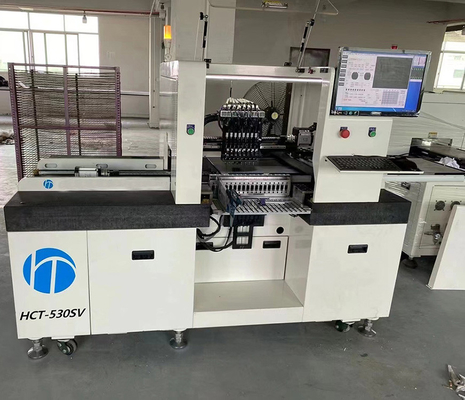

8 Head Pick And Place Pcb Machine Smt Mounter Machine Easy Operating 2

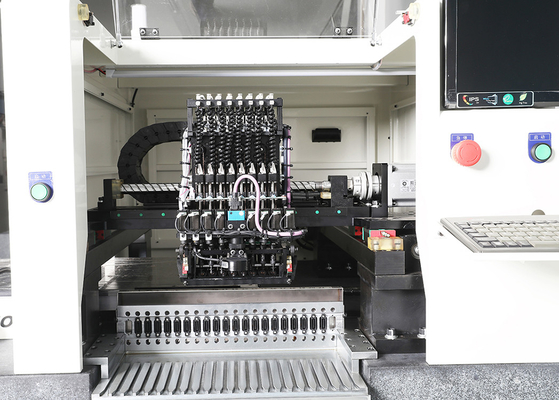

8 Head Pick And Place Pcb Machine Smt Mounter Machine Easy Operating 3

Applications:

Widely used in LED lighting, display screen manufacturing and electronic manufacturing services (EMS) industries.

The manufacture of LED fluorescent tube, soft lamp band, LED Dob, LED display screen, especially the mounting of LED display module above P4, enough to handle all kinds of resistors, capacitors, IC, LED chips, and other components of the Mount, suitable for a variety of electronic products in bulk production.
