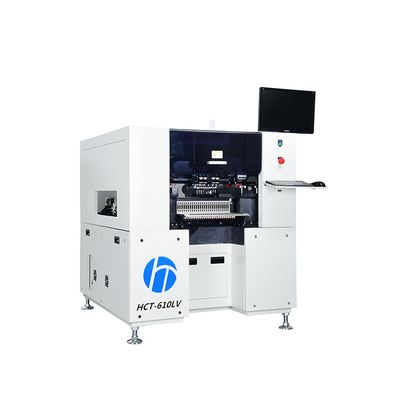

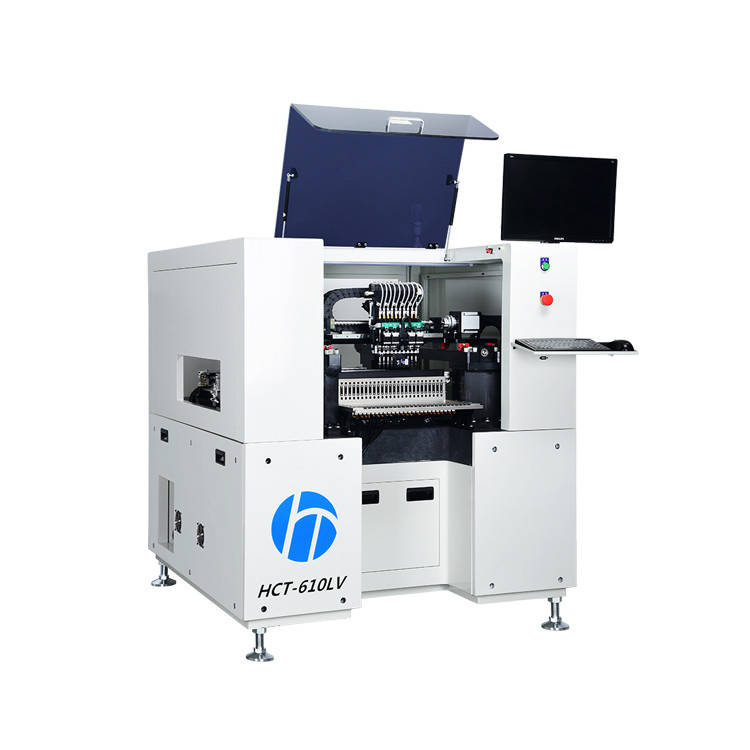

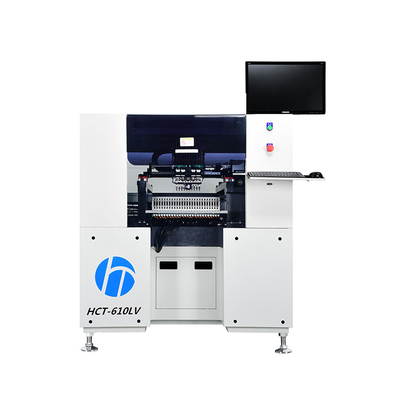

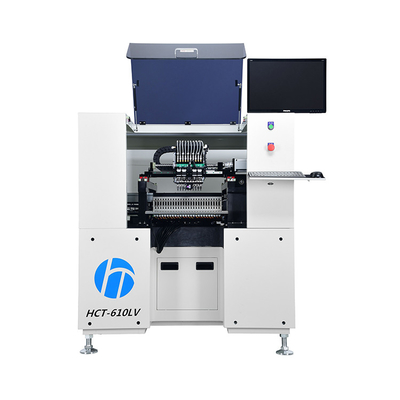

Smt Pick And Place Machine HCT-610LV 10 Head LED PCB Chip Mounter
All Category

Pick And Place Machine

Reflow Oven

SMT AOI Machine

SMT Solder Paste Printing Machine

SMT SPI Machine

SMT Machine Line

Automatic Insertion Machine

Wave Soldering Machine

PCB Loader And Unloader

SMT Conveyor

Glue Dispensing Machine

Conformal Coating Machine

Curing Oven Machine

PCB Cutting Machine

Electronics Production Machinery

PCB Machine
Contact Us
Miss. Alina
alina@hxt-smt.com
+86 16620793861
wechat +86 16620793861
Contact Now
name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Smt Pick And Place Machine HCT-610LV 10 Head LED PCB Chip Mounter

Brand Name: HCT
Model Number: HCT-610LV
MOQ: 1
Price: 25000-30000
Packaging Details: Vacuum packing plus wooden box packing
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Application:
SMT For Led Production Line
Name:
Pick And Place Machine
Maximum Board Size:
600x500mm
Condition:
Original New And Used
Usage:
SMD LED SMT
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Supply Ability:
The production capacity is 50 units a month
Highlight:

Automatic Smt Pick And Place Machine

,

Automatic smt placement machine

,

10 Head Smt Pick And Place Machine

Product Description

Automatic SMT Machine for SMT Production Line HCT-610LV Pick and Place Machine for Electronic Products Machinery 10 head LED PCB SMT Chip Mounter 55000 CPH



Product introduction

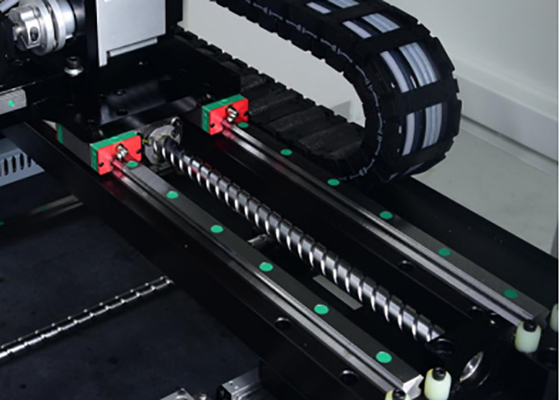

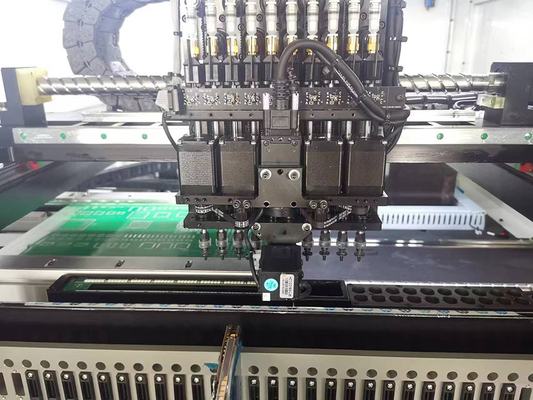

SMD range: 600mm*500mm, can be attached to power boards, bulb lamps, ceiling lamps, panel lights, LED drive power boards, etc. High efficiency: single-arm 10-head placement, 10 suction nozzles pick up materials at the same time, and the suction nozzles can be replaced automatically. The flying camera component recognition method is used to maximize the placement speed. The maximum placement speed is 55,000 points/hour. Patch identification method: grayscale and shape discrimination, feature comparison and edge calculation. High-precision placement: The high-precision placement head adopts an integrated structure, and the Z-axis uses the double-spline design principle to reduce the number of component combinations, ensure assembly accuracy, and greatly improve placement accuracy. PCB board transmission method: standard SMEMA communication interface is adopted, which can communicate with the upper and lower board machines, completely realize unmanned intelligent production, save labor, and greatly improve operation efficiency and production capacity. PCB board splint mode: automatic width adjustment of guide rail, floating clamping, improving work efficiency and portability. Easy-to-maintain wiring method: The modular wiring of the whole machine is stable and beautiful by adopting bus control technology. Good durability: imported ball-grinding screw and precision linear guide rail are matched with high quality, which greatly improves the accuracy and stability of the equipment, and reduces the noise of machine movement; the outer layer of the screw is made of high-strength and high-wear-resistant rare metal as the outer coating, which is effective Guarantee its durability. Supporting software: simple and elegant interface, practical functions, online programming of visual software, all coordinate points in the imposition are displayed in the software, and the coordinates are fine-tuned to achieve high-precision placement, no need to manually input component coordinates, easy to operate, combined with many manufacturers The actual needs of independent research and development design.

Smt Pick And Place Machine HCT-610LV 10 Head LED PCB Chip Mounter 0

Product Specification

Mounter model HCT-610LV
SMD range 600 long x 500 wide mm
Maximum placement speed 55000 CPH/hour
Time required for a component 0.065s/chip
Image recognition accuracy ±0.0 3mm
Mechanical precision ±0.03mm
Component range 0603～5050～7474, high-power LED components
Power supply 220V, 50Hz
Compressed air 0.55Mpa
Feeder Quantity Standard 12MM electric feeder can hold 26
Placement head 10 heads
Programmatically Vision correction
Component identification Flying camera
Vacuum system Vacuum pump
PCB board fixing method Online track
PC Windows 7/XP (equipment includes computer, industrial computer)
Machine size 1230(L)×1530(W)×1360(H)mm
Product weight About 1600KG
Operation interface Full Chinese color operation interface (English operation interface can be switched)
Software Features The software is independently developed and updated permanently for free.

The software design can be changed according to the needs of customers

to meet the diverse operational needs (additional modification fee).

Product details

Smt Pick And Place Machine HCT-610LV 10 Head LED PCB Chip Mounter 1

Smt Pick And Place Machine HCT-610LV 10 Head LED PCB Chip Mounter 2

Smt Pick And Place Machine HCT-610LV 10 Head LED PCB Chip Mounter 3

Applications:



Widely used in LED lighting, display screen manufacturing and electronic manufacturing services (EMS) industries.

The manufacture of LED fluorescent tube, soft lamp band, LED Dob, LED display screen, especially the mounting of LED display module above P4, enough to handle all kinds of resistors, capacitors, IC, LED chips, and other components of the Mount, suitable for a variety of electronic products in bulk production.
